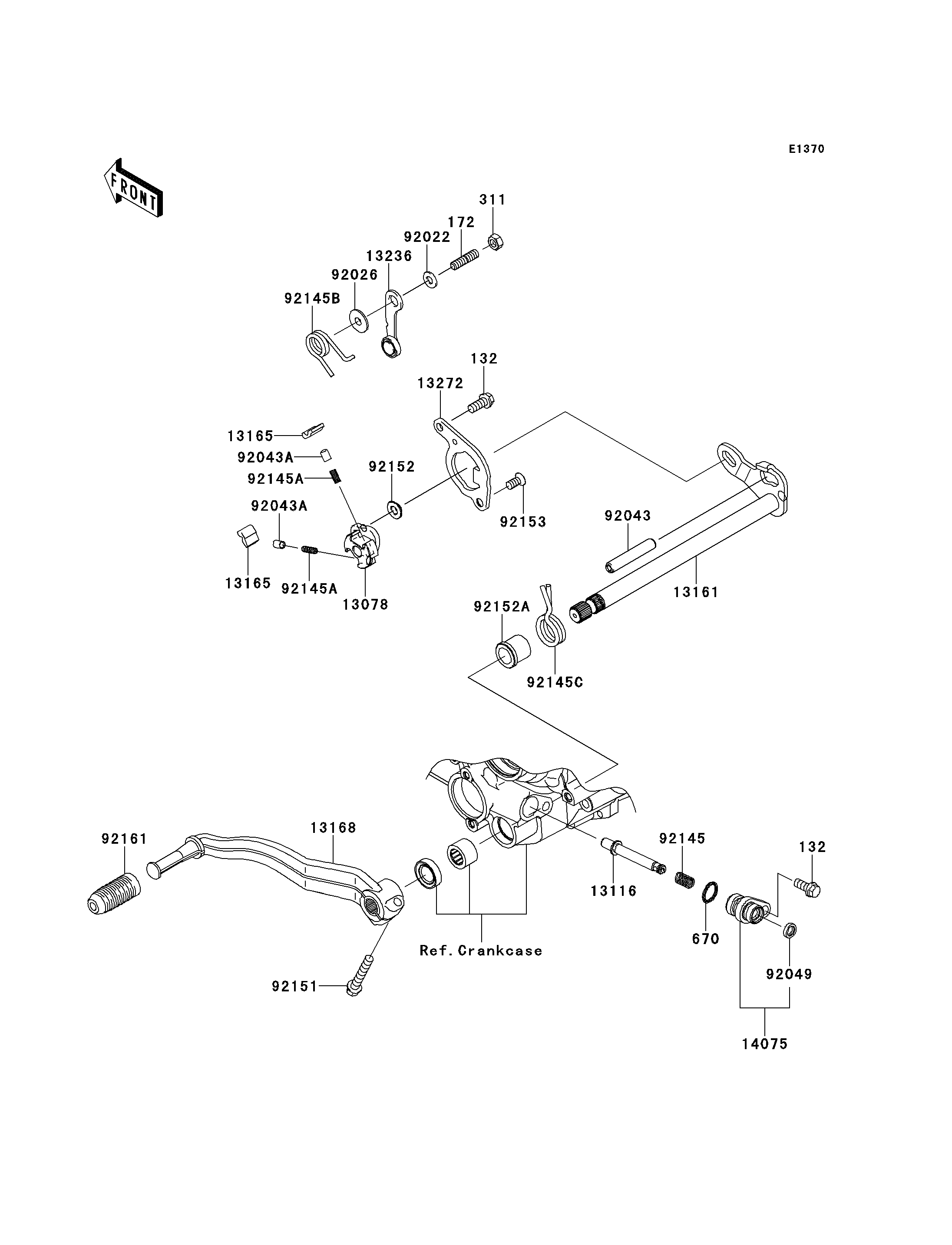

2008 KFX®450R - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
132
132
172
311
670
13078
13116
13161
13165
13165
13168
13236
13272
14075
92022
92026
92043
92043A
92043A
92049
92145
92145A
92145A
92145B
92145C
92151
92152
92152A
92153
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X14 132 132BD0614 2
BOLT-STUD,6X12 172 172BA0612 1
NUT-HEX 311 311BA0600 1
O RING,12MM 670 670B2012 1
RATCHET 13078 13078-0012 1
ROD-PUSH 13116 13116-0024 1
LEVER-COMP-CHANGE SHAFT 13161 13161-0055 1
PAWL 13165 13165-0017 2
LEVER 13168 13168-0162 1
LEVER-COMP,POSITION 13236 13236-0129 1
PLATE 13272 13272-0073 1
CAP-ASSY 14075 14075-0005 1
WASHER,6X12.8X1.2 92022 92022-1827 1
SPACER 92026 92026-1217 1
PIN,8X45 92043 92043-0140 1
PIN,PLUNGER 92043A 92043-1676 2
SEAL-OIL,6.6X11X2.5 92049 92049-0094 1
SPRING,23.6MM 92145 92145-0397 1
SPRING 92145A 92145-0453 2
SPRING 92145B 92145-0457 1
SPRING,RETURN 92145C 92145-1493 1
BOLT,FLANGED-SMALL,6X25 92151 92151-1930 1
COLLAR 92152 92152-1414 1
COLLAR,RETURN SPRING 92152A 92152-1419 1
BOLT,6X15 92153 92153-0848 1
DAMPER 92161 92161-0359 1
