Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

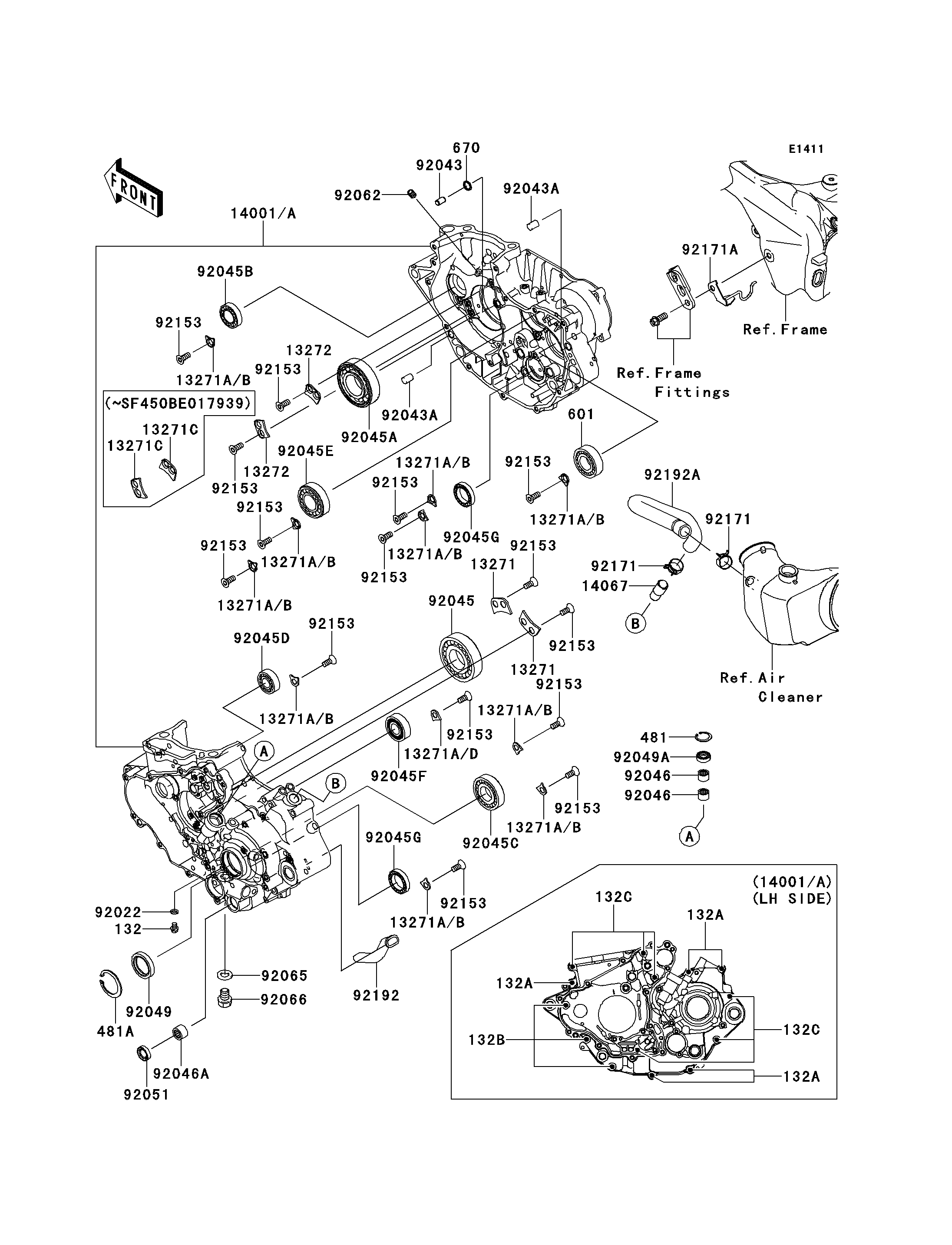

13271
13271
13271
13271
13271B
13271B
13271B
13271B
13271B
13271B
13271B
13271B
13271B
13271B
13271B
13271B
13271B
13271B
13271B
13271B
13271B
13271B
13271B
13271B
13271C
13271C
13271C
13271C
13271D
13271D
14001
14001
14067
14067
92022
92022
92043
92043
92043A
92043A
92043A
92043A
92045
92045
92045A
92045A
92045B
92045B
92045C
92045C
92045D
92045D
92045E
92045E
92045F
92045F
92045G
92045G
92045G
92045G
92046
92046
92046
92046
92046A
92046A
92049
92049
92049A
92049A
92051
92051
92062
92062
92065
92065
92066
92066
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92171
92171
92171
92171
92171A
92171A
92192
92192
92192A
92192A
132
132
132A
132A
132A
132A
132A
132A
132B
132B
132C
132C
132C
132C
481
481
481A
481A
601
601
670
670
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE | 13271 | 13271-0334 | 2 | ||
| PLATE | 13271B | 13271-0582 | 10 | ||
| PLATE | 13271C | 13271-0867 | 2 | ( - SF450BE017939) | |
| PLATE | 13271D | 13271-0943 | 1 | ||
| SET-CRANKCASE | 14001 | 14001-0079 | 1 | ( - SF450BE017939) | |
| FITTING,BREATHER | 14067 | 14067-006 | 1 | ||
| WASHER,6.2X11X1 | 92022 | 92022-304 | 1 | ||
| PIN,8X14 | 92043 | 92043-0130 | 1 | ||
| PIN,10X14 | 92043A | 92043-1506 | 2 | ||
| BEARING-BALL,B32-32U-A-EC4 UR5 | 92045 | 92045-0024 | 1 | ||
| BEARING-BALL,B32-32-A-DUX8EC4 | 92045A | 92045-0031 | 1 | ||
| BEARING-BALL,6904C3UR5 | 92045B | 92045-0038 | 1 | ||
| BEARING-BALL,25X62X17 | 92045C | 92045-0056 | 1 | ||
| BEARING-BALL,6202SH2C3 | 92045D | 92045-0079 | 1 | ||
| BEARING-BALL,TM-SX05A4604 | 92045E | 92045-0081 | 1 | ||
| BEARING-BALL,3TM-SX0391LUC3 | 92045F | 92045-0082 | 1 | ||
| BEARING-BALL,6805JRZ | 92045G | 92045-1432 | 2 | ||
| BEARING-NEEDLE,HK1210 | 92046 | 92046-1010 | 2 | ||
| BEARING-NEEDLE,HK1312 | 92046A | 92046-1148 | 1 | ||
| SEAL-OIL,TC 30 40 7 | 92049 | 92049-0030 | 1 | ||
| SEAL-OIL,CLUTCH RELEASE | 92049A | 92049-1475 | 1 | ||
| SEAL-OIL,TB13225.5 | 92051 | 92051-005 | 1 | ||
| NOZZLE,6X8,GREEN | 92062 | 92062-1078 | 1 | ||
| GASKET,12X22X2 | 92065 | 92065-097 | 1 | ||
| PLUG,OIL DRAIN,12X15 | 92066 | 92066-1174 | 1 | ||
| BOLT,6X15 | 92153 | 92153-0848 | 19 | ||
| CLAMP | 92171 | 92171-0862 | 2 | ||
| CLAMP | 92171A | 92171-0879 | 1 | ||
| TUBE,OIL RETURN | 92192 | 92192-0318 | 1 | ||
| TUBE,BREATHER | 92192A | 92192-0432 | 1 | ||
| BOLT-FLANGED-SMALL,6X8 | 132 | 132BB0608 | 1 | ||
| BOLT-FLANGED-SMALL,6X50 | 132A | 132BD0650 | 5 | ||
| BOLT-FLANGED-SMALL,6X60 | 132B | 132BD0660 | 3 | ||
| BOLT-FLANGED-SMALL,6X80 | 132C | 132BD0680 | 6 | ||
| CIRCLIP | 481 | 481J2100 | 1 | ||
| CIRCLIP-TYPE-C,40MM | 481A | 481J4000 | 1 | ||
| BEARING-BALL,#6204 | 601 | 601A6204 | 1 | ||
| O RING,8MM | 670 | 670D1508 | 1 |
