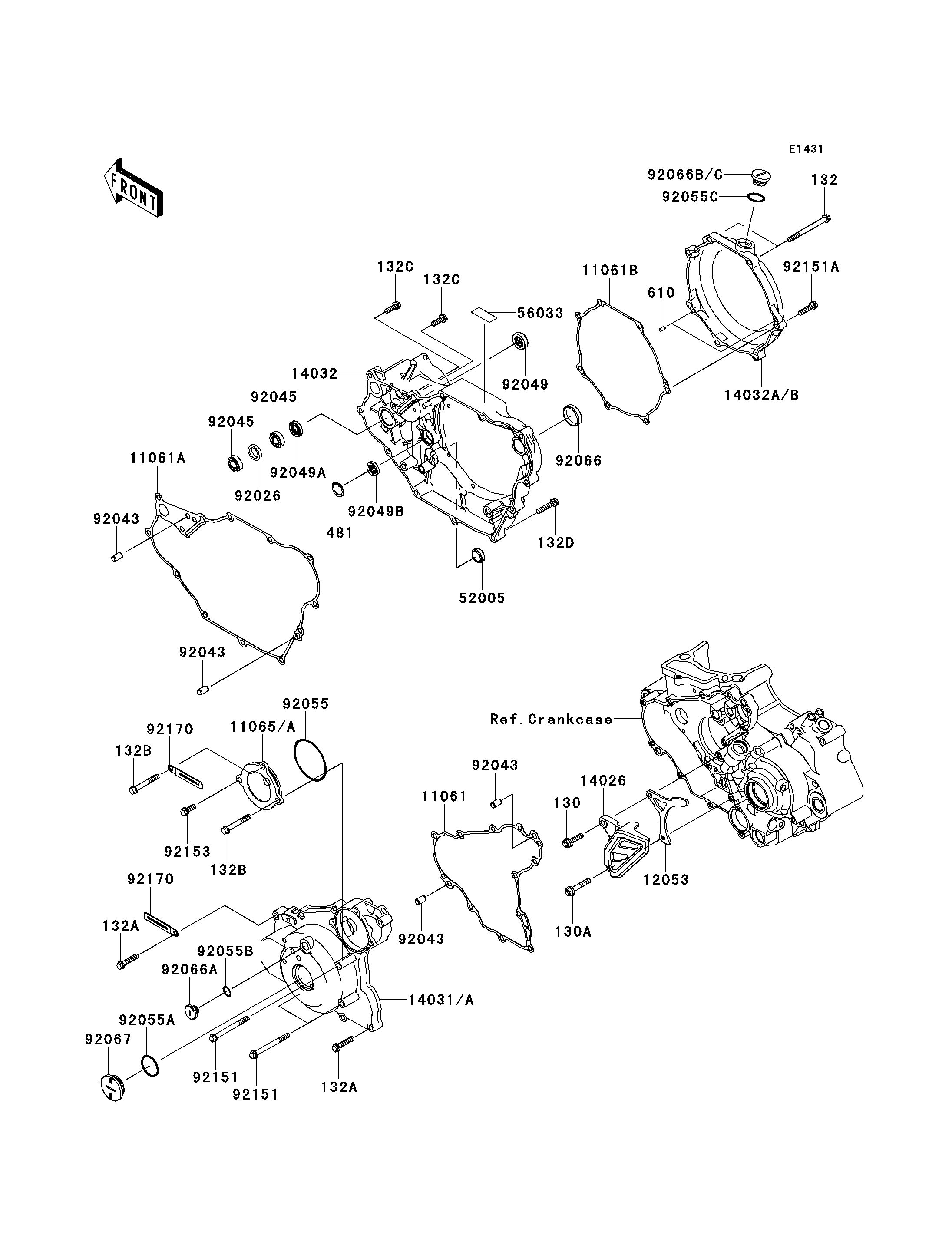

2008 KFX®450R - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
132
132
132A
132A
132A
132A
132B
132B
132B
132B
132C
132C
132C
132C
132D
132D
11061
11061
11061A
11061A
11061B
11061B
11065A
11065A
12053
12053
14026
14026
14031A
14031A
14032
14032
14032B
14032B
52005
52005
56033
56033
92026
92026
92043
92043
92043
92043
92043
92043
92043
92043
92045
92045
92045
92045
92049
92049
92049A
92049A
92049B
92049B
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92066
92066
92066A
92066A
92066B
92066B
92067
92067
92151
92151
92151
92151
92151A
92151A
92153
92153
92170
92170
92170
92170
481
481
610
610
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130BB0625 1
BOLT-FLANGED,6X35 130A 130BB0635 1
BOLT-FLANGED-SMALL,6X18 132 132BA0618 2
BOLT-FLANGED-SMALL,6X30 132A 132BC0630 7
BOLT-FLANGED-SMALL,6X45 132B 132BC0645 2
BOLT-FLANGED-SMALL,6X70 132C 132BC0670 2
BOLT-FLANGED-SMALL,6X30 132D 132BD0630 9
GASKET,GENERATOR COVER 11061 11061-0235 1
GASKET,CLUTCH COVER 11061A 11061-0236 1
GASKET,CLUTCH OUTER COVER 11061B 11061-0259 1
CAP,STARTER LIMITER 11065A 11065-0224 1
GUIDE-CHAIN 12053 12053-0081 1
COVER-CHAIN 14026 14026-0035 1
COVER-GENERATOR 14031A 14031-0085 1
COVER-CLUTCH 14032 14032-0083 1
COVER-CLUTCH,OUTER 14032B 14032-0103 1
GAUGE,OIL LEVEL 52005 52005-0019 1
LABEL-MANUAL,OIL CAPACITY 56033 56033-0200 1
SPACER,16X22X4.3 92026 92026-0064 1
PIN,8X14 92043 92043-0130 4
BEARING-BALL,6900C3 92045 92045-0039 2
SEAL-OIL,12X24X7 92049 92049-0040 1
SEAL-OIL,12X22X5 92049A 92049-0041 1
SEAL-OIL,10X20X5 92049B 92049-1542 1
RING-O,58X2.5 92055 92055-0110 1
RING-O,27.7X2.4 92055A 92055-091 1
RING-O,ID=13.8 92055B 92055-1141 1
RING-O,20X2 92055C 92055-1146 1
PLUG,KICK STARTER 92066 92066-0075 1
PLUG,12X8 92066A 92066-0092 1
PLUG,18X9 92066B 92066-0103 1
PLUG,30X8 92067 92067-024 1
BOLT,6X65 92151 92151-1199 3
BOLT,FLANGED-SMALL,6X25 92151A 92151-1930 5
BOLT,6X16 92153 92153-0695 1
CLAMP 92170 92170-1514 2
CIRCLIP-TYPE-C,20MM 481 481J2000 1
ROLLER,4X8 610 610A0408 2
