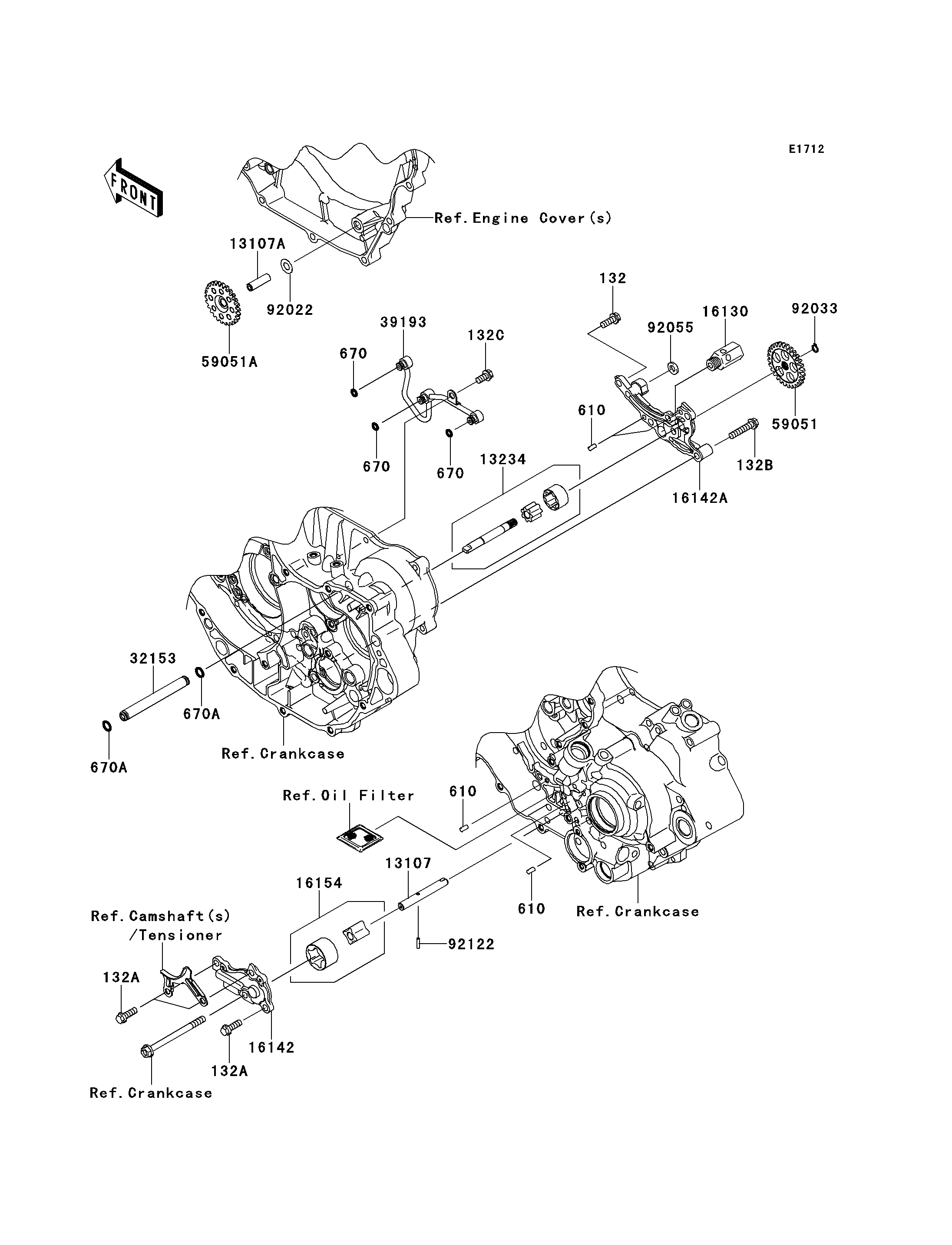

2008 KFX®450R - Oil Pump

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132A
132B
132C
610
610
610
670
670
670
670A
670A
13107
13107A
13234
16130
16142
16142A
16154
32153
39193
59051
59051A
92022
92033
92055
92122
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X16 132 132BA0616 5
BOLT-FLANGED-SMALL,6X18 132A 132BA0618 3
BOLT-FLANGED-SMALL,6X30 132B 132BA0630 1
BOLT-FLANGED-SMALL,6X12 132C 132BB0612 1
ROLLER,4X8 610 610A0408 4
O RING 670 670D1505 3
O RING,7MM 670A 670D1507 2
SHAFT,OIL PUMP,SCAVENGE 13107 13107-0134 1
SHAFT,O/P IDLE 13107A 13107-0138 1
SHAFT-COMP,OIL PUMP,FEED 13234 13234-0029 1
VALVE-ASSY-RELIEF 16130 16130-1058 1
COVER-PUMP 16142 16142-0032 1
COVER-PUMP 16142A 16142-0033 1
ROTOR-PUMP,SCAVENGE 16154 16154-0069 1
PIPE 32153 32153-1189 1
PIPE-OIL 39193 39193-0038 1
GEAR-SPUR,O/P DRIVEN,28T 59051 59051-0044 1
GEAR-SPUR,O/P IDLE,26T 59051A 59051-0073 1
WASHER,8X16X0.5 92022 92022-1475 1
RING-SNAP 92033 92033-0019 1
RING-O,OD=13 92055 92055-074 1
ROLLER,2.5X11.8 92122 92122-0021 1
