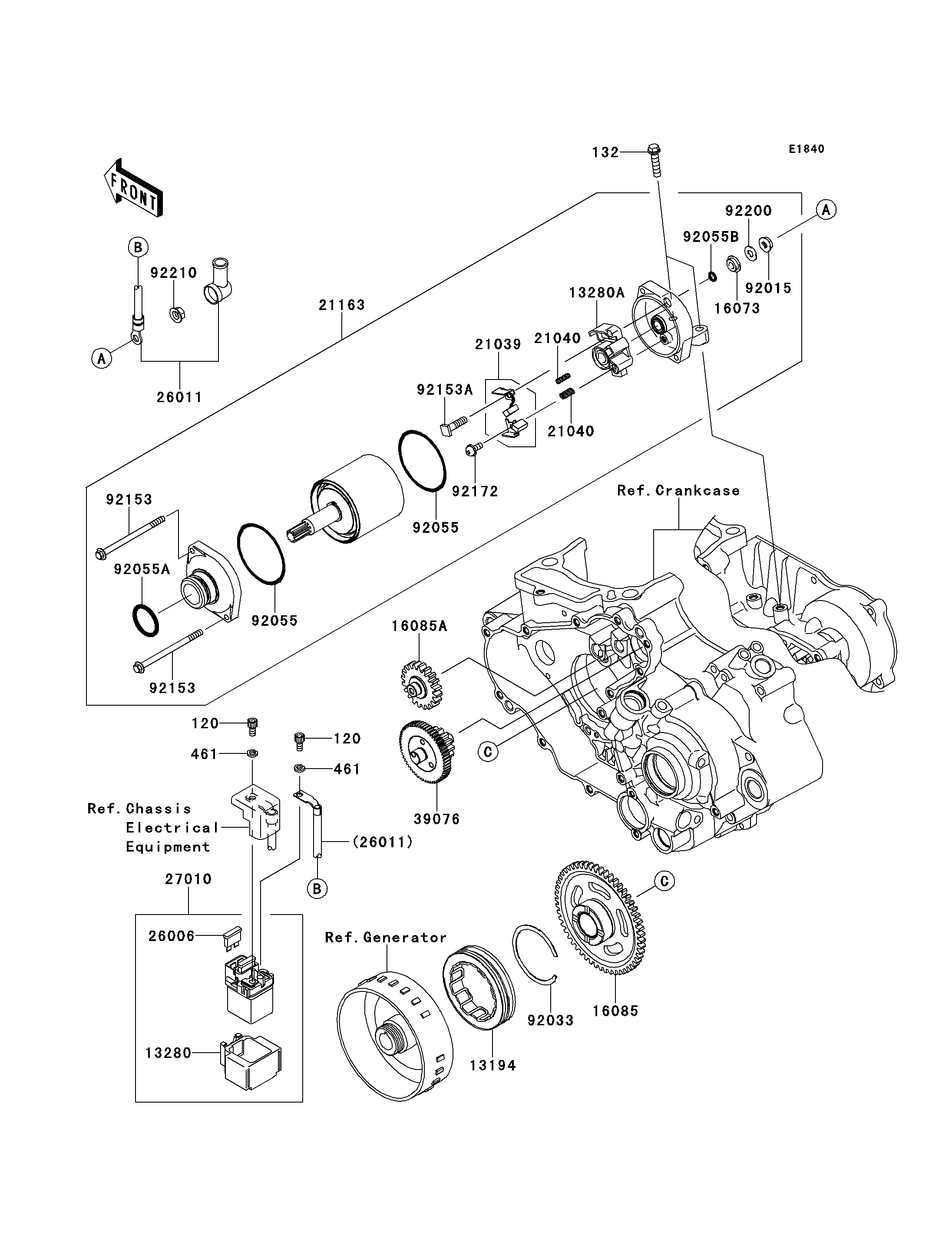

2008 KFX®450R - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
120
120
132
461
461
13194
13280
13280A
16073
16085
16085A
21039
21040
21040
21163
26006
26011
27010
39076
92015
92033
92055
92055
92055A
92055B
92153
92153
92153A
92172
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X10 120 120CB0510 2
BOLT-FLANGED-SMALL,6X25 132 132BD0625 2
WASHER-SPRING,5MM,BLACK 461 461DB0500 2
CLUTCH-ONEWAY 13194 13194-0008 1
HOLDER,SWITCH 13280 13280-0109 1
HOLDER 13280A 13280-0261 1
INSULATOR 16073 16073-0053 1
GEAR,53T 16085 16085-0092 1
GEAR,20T 16085A 16085-0093 1
BRUSH,CARBON SET 21039 21039-0005 1
SPRING-BRUSH 21040 21040-0003 2
STARTER-ELECTRIC 21163 21163-0033 1
FUSE,30A-G 26006 26006-1006 1
WIRE-LEAD 26011 26011-0103 1
SWITCH,MAGNETIC 27010 27010-0030 1
LIMITER,58T&13T 39076 39076-0015 1
NUT,STARTER MOTOR 92015 92015-1476 1
RING-SNAP 92033 92033-3731 1
RING-O 92055 92055-0136 2
RING-O 92055A 92055-1276 1
RING-O,4.5X2.0 92055B 92055-1370 1
BOLT,SET 92153 92153-1851 2
BOLT 92153A 92153-1866 1
SCREW 92172 92172-0334 1
WASHER 92200 92200-0386 1
NUT,6MM 92210 92210-0188 1
