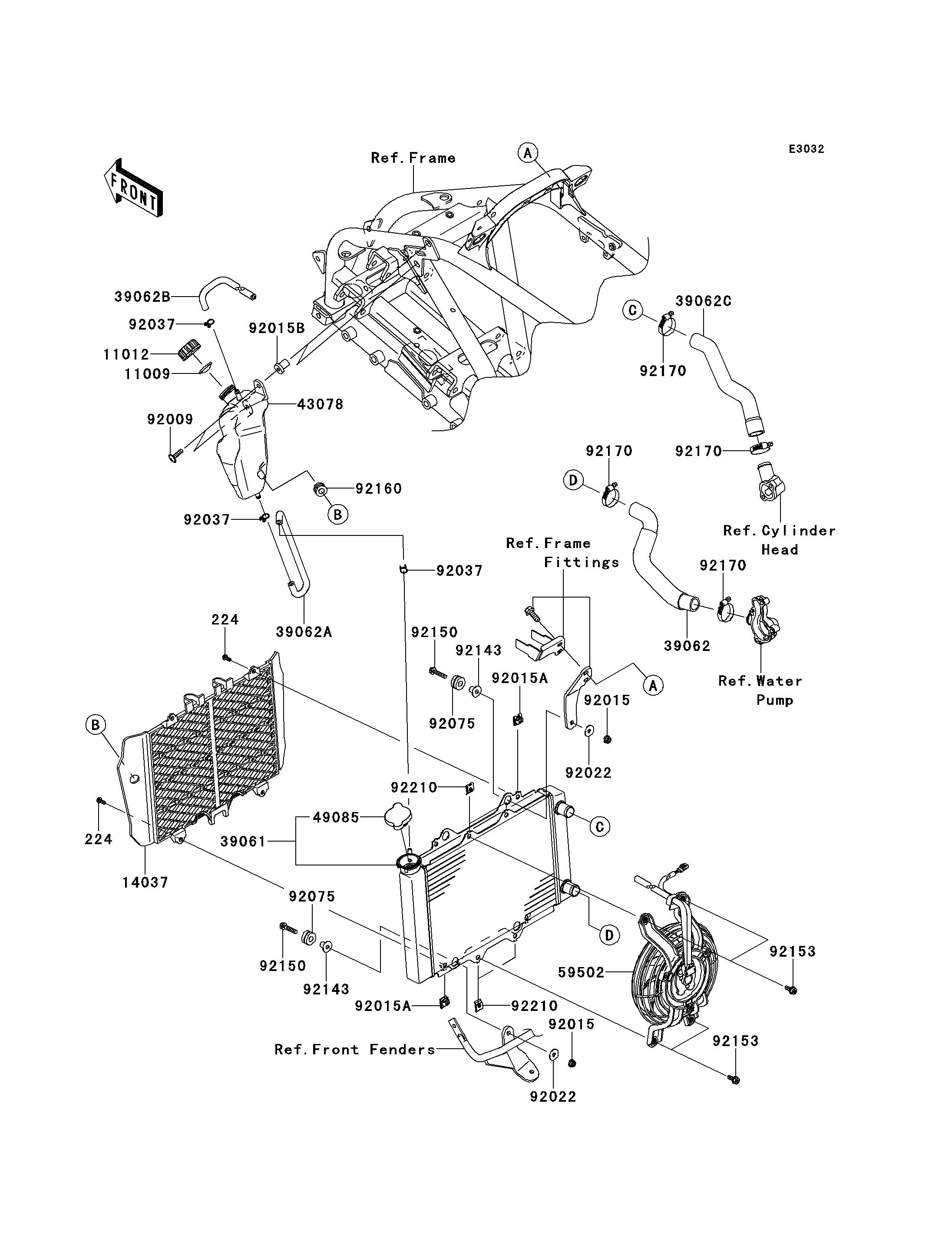

2008 KFX®450R - Radiator

DOWNLOAD PDF
SELECT A NEW PART
224
224
11009
11012
14037
39061
39062
39062A
39062B
39062C
43078
49085
59502
92009
92015
92015
92015A
92015A
92015B
92022
92022
92037
92037
92037
92075
92075
92143
92143
92150
92150
92153
92153
92160
92170
92170
92170
92170
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-WP-CROS,6X14 224 224AB0614 4
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
SCREEN,RADIATOR 14037 14037-0055 1
RADIATOR-ASSY 39061 39061-0125 1
HOSE-COOLING,W/P-RAD. 39062 39062-0146 1
HOSE-COOLING,RAD.-RESERVOIR 39062A 39062-0201 1
HOSE-COOLING,BREATHER 39062B 39062-0202 1
HOSE-COOLING,RAD.-HEAD 39062C 39062-0215 1
RESERVOIR 43078 43078-0043 1
CAP-ASSY-PRESSURE 49085 49085-0005 1
FAN-ASSY 59502 59502-0029 1
SCREW,6X25 92009 92009-1465 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 4
NUT 92015A 92015-1487 4
NUT,RUBBER,6MM 92015B 92015-1692 2
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 4
CLAMP,TUBE 92037 92037-147 3
DAMPER 92075 92075-209 4
COLLAR 92143 92143-1353 4
BOLT,6X30 92150 92150-1694 4
BOLT 92153 92153-1806 4
DAMPER 92160 92160-1167 1
CLAMP 92170 92170-1497 4
NUT,6MM 92210 92210-0377 4
