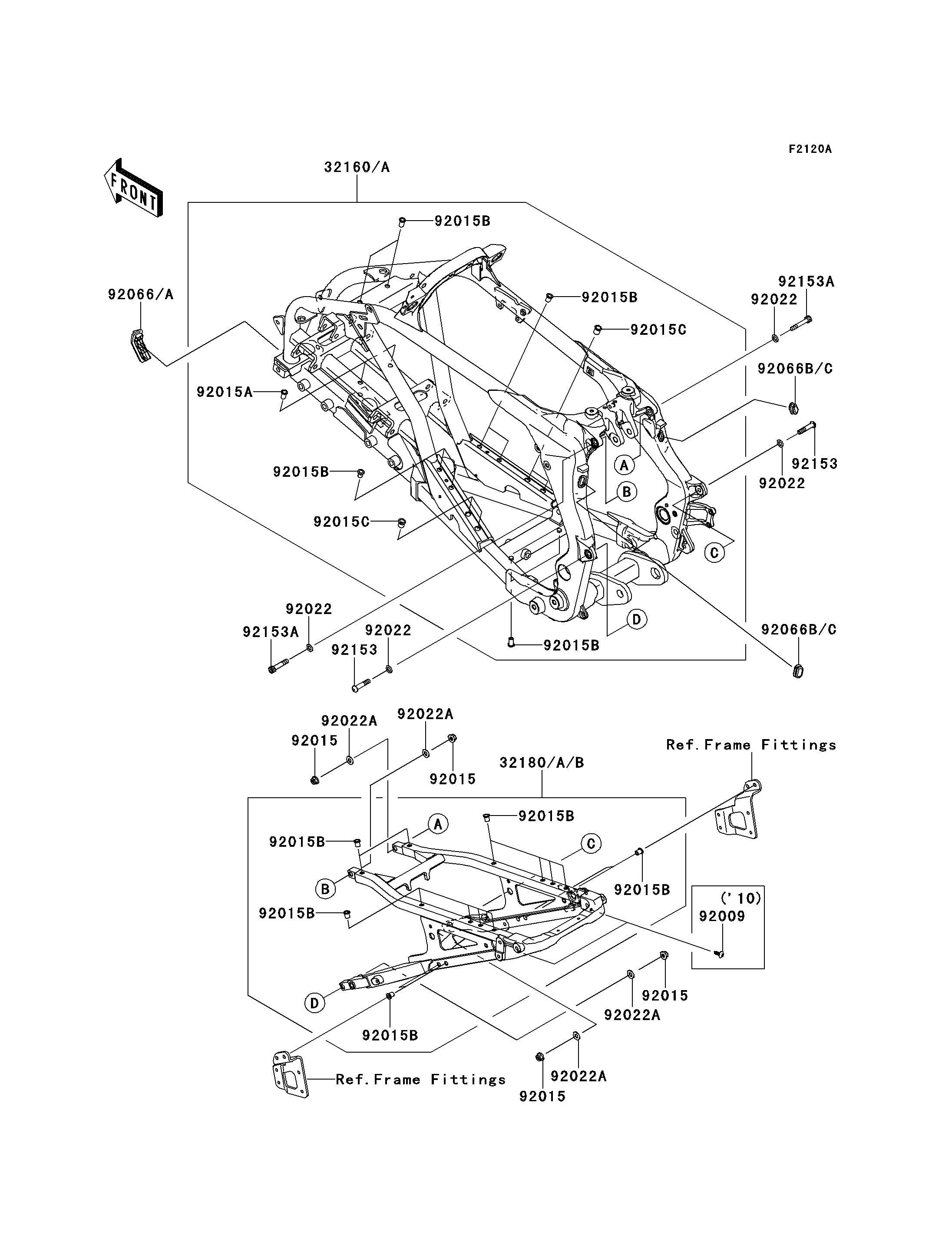

2008 KFX®450R - Frame(JKASFGB1 8B509623-)
32160
32180
92015
92015
92015
92015
92015A
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92015C
92015C
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92066
92066B
92066B
92153
92153
92153A
92153A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME-COMP | 32160 | 32160-0311 | 1 | ||
| FRAME-SUB-COMP | 32180 | 32180-0001 | 1 | ||
| NUT,8MM | 92015 | 92015-1432 | 4 | ||
| NUT,POP,6MM | 92015A | 92015-1759 | 2 | ||
| NUT,POP,6MM,L=16.5 | 92015B | 92015-1792 | 22 | ||
| NUT,POP,8MM,L=18 | 92015C | 92015-1794 | 4 | ||
| WASHER,PLAIN,8MM | 92022 | 92022-3043 | 4 | ||
| WASHER,8.2X18X1.5 | 92022A | 92022-3743 | 4 | ||
| PLUG,FRAME TOP,F.SILVER | 92066 | 92066-0082-AG | 1 | ||
| PLUG | 92066B | 92066-0113 | 2 | ||
| BOLT,SOCKET,8X40 | 92153 | 92153-1659 | 2 | ||
| BOLT,SOCKET,8X40 | 92153A | 92153-1913 | 2 |
| FRAME-COMP | |
| REF # | 32160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-SUB-COMP | |
| REF # | 32180 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,6MM,L=16.5 | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 22 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,8MM,L=18 | |
| REF # | 92015C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,8MM | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.2X18X1.5 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLUG,FRAME TOP,F.SILVER | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X40 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X40 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
