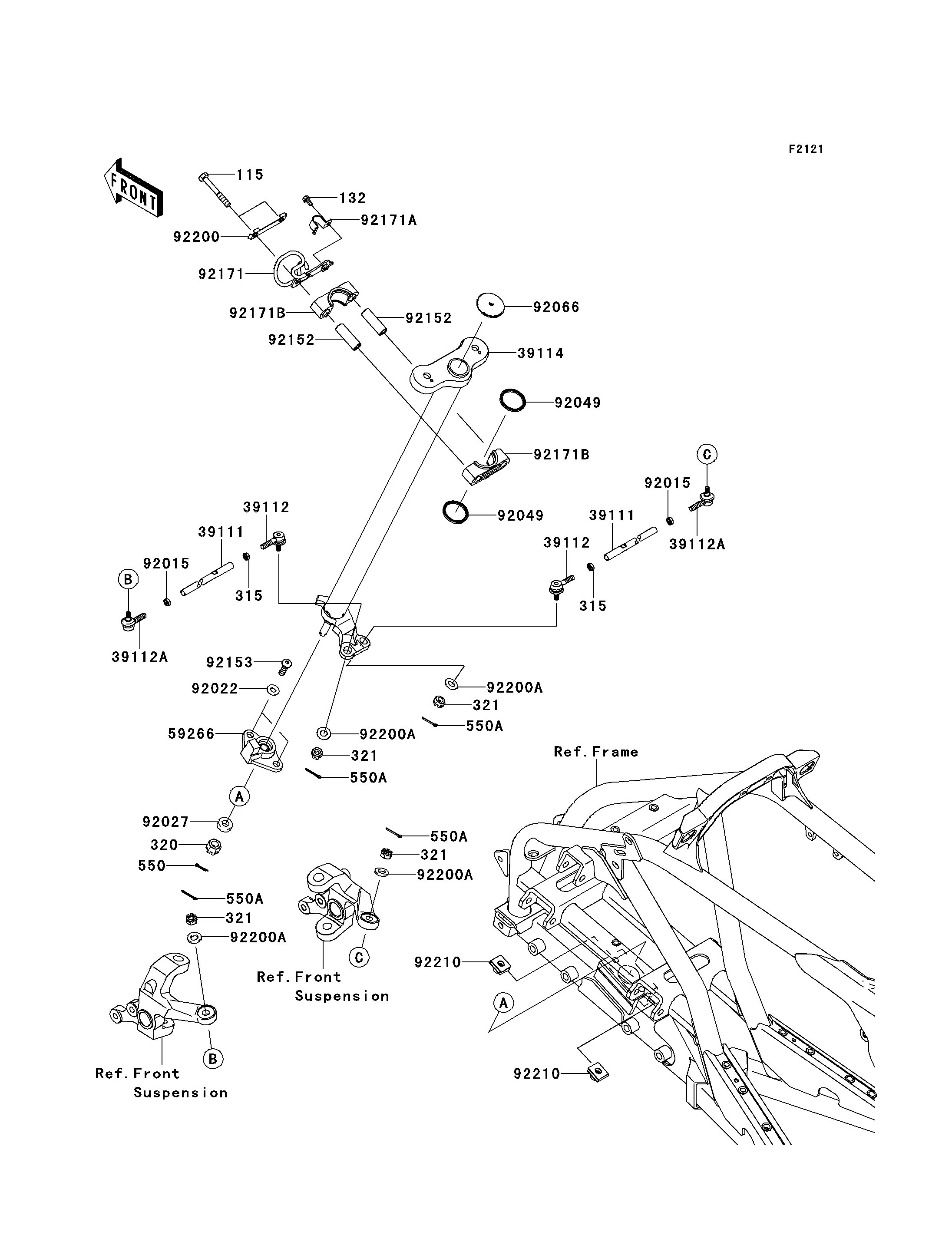

2008 KFX®450R - Steering Shaft

DOWNLOAD PDF
SELECT A NEW PART
115
132
315
315
320
321
321
321
321
550
550A
550A
550A
550A
39111
39111
39112
39112
39112A
39112A
39114
59266
92015
92015
92022
92027
92049
92049
92066
92152
92152
92153
92171
92171A
92171B
92171B
92200
92200A
92200A
92200A
92200A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SMALL-UPSET,8X55 115 115CB0855 2
BOLT-FLANGED-SMALL,5X10 132 132BA0510 1
NUT-HEX-FINE 315 315AB1200 2
NUT-CASTLE 320 320BA1000 1
NUT-CASTLE 321 321BA1000 4
PIN-COTTER,2.5X18 550 550AA2518 1
PIN-COTTER,2.5X20 550A 550AA2520 4
ROD-TIE 39111 39111-0052 2
RODEND-TIE,LEFT HANDED 39112 39112-0011 2
RODEND-TIE,RIGHT HANDED 39112A 39112-0012 2
SHAFT-COMP-STRG,F.BLACK 39114 39114-0012-21 1
JOINT-BALL 59266 59266-0026 1
NUT,12MM,LEFT SCREW 92015 92015-1532 2
WASHER,PLAIN,8MM 92022 92022-3043 2
COLLAR,10X21.3X7 92027 92027-1817 1
SEAL-OIL,SR31.8X37.5X3.8LR 92049 92049-7501 2
PLUG 92066 92066-0032 1
COLLAR,9.1X13.95X42 92152 92152-7501 2
BOLT,SOCKET,8X25 92153 92153-1838 2
CLAMP,CABLE 92171 92171-0855 1
CLAMP,BRAKE HOSE 92171A 92171-0856 1
CLAMP,STEERING 92171B 92171-7501 2
WASHER,STEERING CLAMP 92200 92200-0384 1
WASHER,10.7X20X2.5 92200A 92200-0393 4
NUT,8MM 92210 92210-0376 2
