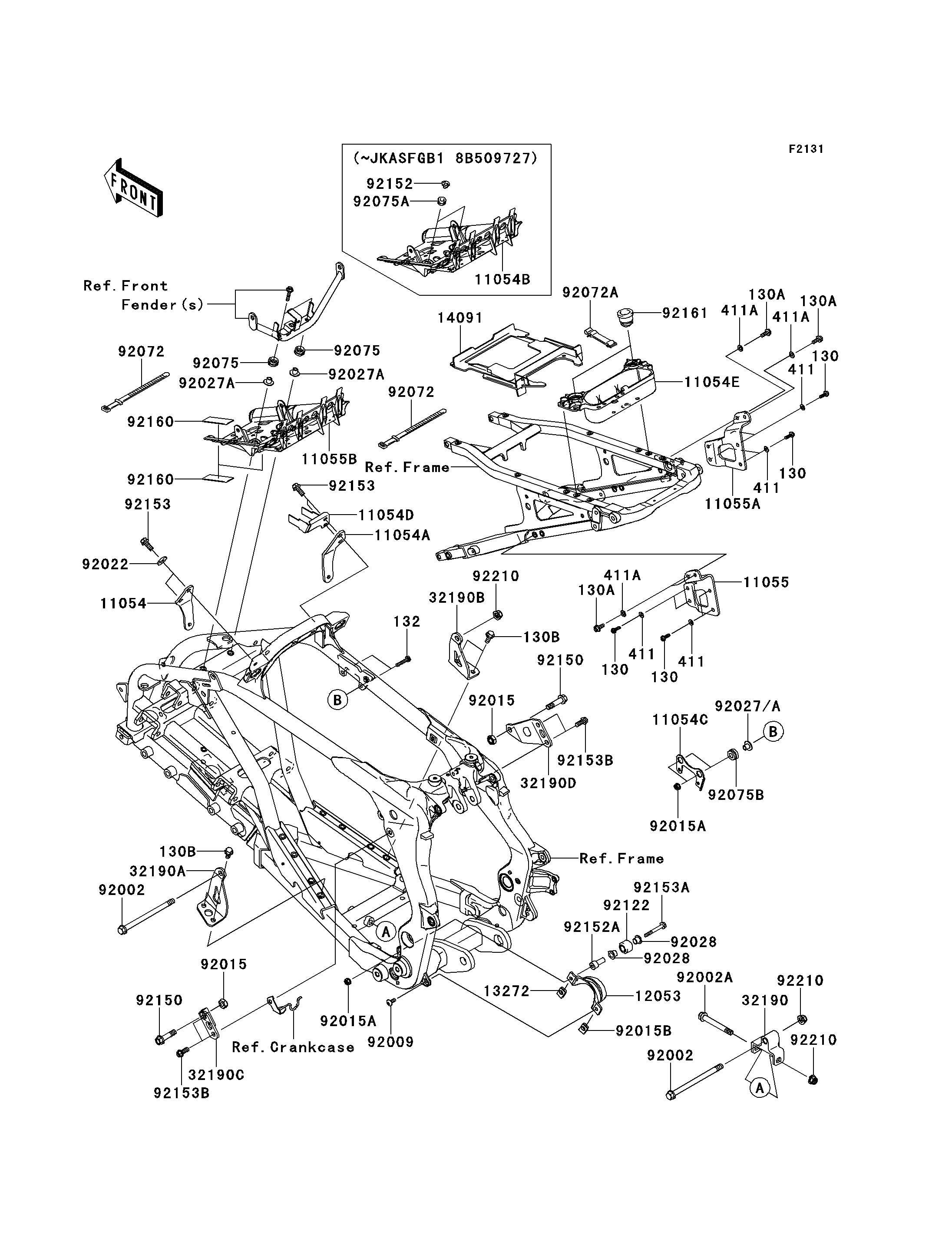

2008 KFX®450R - Frame Fittings(B8F/B8FA)

DOWNLOAD PDF
SELECT A NEW PART
11054
11054
11054A
11054A
11054B
11054B
11054C
11054C
11054D
11054D
11054E
11054E
11055
11055
11055A
11055A
11055B
11055B
12053
12053
13272
13272
14091
14091
32190
32190
32190A
32190A
32190B
32190B
32190C
32190C
32190D
32190D
92002
92002
92002
92002
92002A
92002A
92009
92009
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015B
92015B
92022
92022
92027
92027
92027A
92027A
92027A
92027A
92027A
92027A
92028
92028
92028
92028
92072
92072
92072
92072
92072A
92072A
92075
92075
92075
92075
92075A
92075A
92075B
92075B
92122
92122
130
130
130
130
130
130
130
130
130A
130A
130A
130A
130A
130A
130B
130B
130B
130B
132
132
411
411
411
411
411
411
411
411
411A
411A
411A
411A
411A
411A
92150
92150
92150
92150
92152
92152
92152A
92152A
92153
92153
92153
92153
92153A
92153A
92153B
92153B
92153B
92153B
92160
92160
92160
92160
92161
92161
92210
92210
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,PAD,UPP,LH 11054 11054-0279 1
BRACKET,PAD,UPP,RH 11054A 11054-0280 1
BRACKET,ELECTRIC 11054B 11054-1710 1 ( - JKASFGB1 8B509727)
BRACKET,IGNITION COIL 11054C 11054-1805 1
BRACKET 11054D 11054-1819 1
BRACKET,TOOL CASE 11054E 11054-1881 1
BRACKET,AIR CLEANER BOX,LH 11055 11055-0070 1
BRACKET,AIR CLEANER BOX,RH 11055A 11055-0071 1
BRACKET,ELECTRIC 11055B 11055-0480 1 (JKASFGB1 8B509728 - )
GUIDE-CHAIN 12053 12053-0077 1
PLATE,CHAIN GUIDE 13272 13272-0080 1
COVER,AIR CLEANER 14091 14091-0744 1
BRACKET-ENGINE 32190 32190-0281 1
BRACKET-ENGINE,FR,LWR,LH 32190A 32190-0296 1
BRACKET-ENGINE,FR,LWR,RH 32190B 32190-0297 1
BRACKET-ENGINE,HEAD,LH 32190C 32190-0298 1
BRACKET-ENGINE,HEAD,RH 32190D 32190-0299 1
BOLT,10X145 92002 92002-1348 2
BOLT,ARM,10MM 92002A 92002-1576 1
SCREW,6X15 92009 92009-3830 1
NUT,LOCK,10MM,BLACK 92015 92015-1189 2
NUT,LOCK,FLANGED,6MM 92015A 92015-1339 3
NUT,6MM 92015B 92015-1602 1
WASHER,8.4X23X2.5 92022 92022-3744 2
COLLAR,FLANGED,L=12.1,BLACK 92027 92027-1651 2 ( - JKASFGB1 8B509727)
COLLAR,FLANGED,L=12.1,BLACK 92027A 92027-1651 4 (JKASFGB1 8B509728 - )
BUSHING 92028 92028-1507 2
BAND,L=186 92072 92072-056 2
BAND 92072A 92072-1085 1
DAMPER 92075 92075-1634 2 (JKASFGB1 8B509728 - )
DAMPER 92075A 92075-1912 2 ( - JKASFGB1 8B509727)
DAMPER 92075B 92075-277 2
ROLLER 92122 92122-0020 1
BOLT-FLANGED,5X16 130 130BA0516 8
BOLT-FLANGED,6X16 130A 130BA0616 4
BOLT-FLANGED,8X18 130B 130CD0818 4
BOLT-FLANGED-SMALL,6X30 132 132BA0630 2
WASHER-PLAIN,5MM 411 411AA0500 8
WASHER-PLAIN,6.5X13X1 411A 411AA0600 4
BOLT,FLANGED,10X40 92150 92150-1711 2
COLLAR 92152 92152-0237 2 ( - JKASFGB1 8B509727)
COLLAR 92152A 92152-0585 1
BOLT,8X20 92153 92153-0892 4
BOLT,6X50,WHITE 92153A 92153-0925 1
BOLT,FLANGED,8X20 92153B 92153-0995 4
DAMPER 92160 92160-1075 6
DAMPER 92161 92161-0048 2
NUT,LOCK,FLANGED,10MM 92210 92210-1080 3
