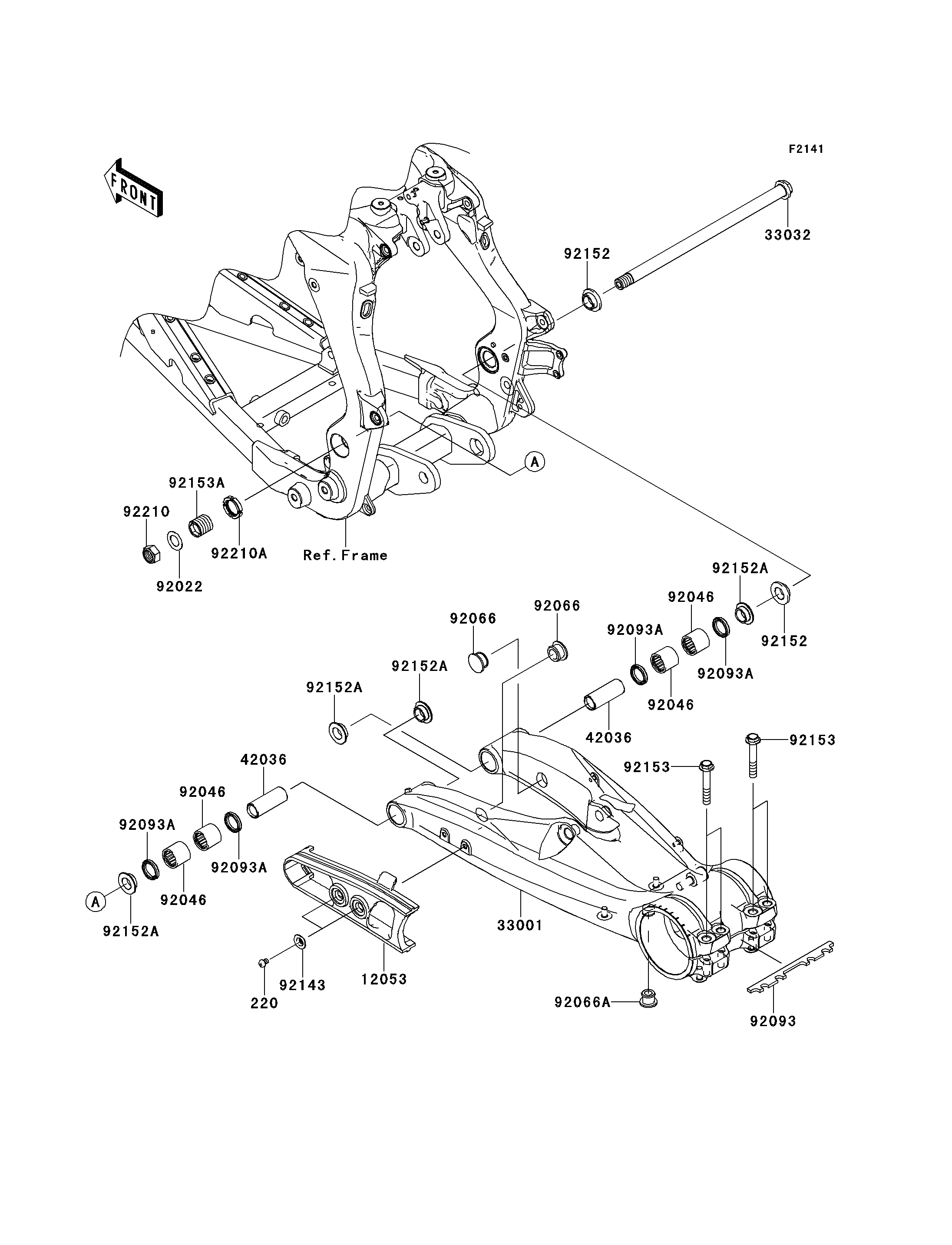

2008 KFX®450R - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
220
12053
33001
33032
42036
42036
92022
92046
92046
92046
92046
92066
92066
92066A
92093
92093A
92093A
92093A
92093A
92143
92152
92152
92152A
92152A
92152A
92152A
92153
92153
92153A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,6X8 220 220AA0608 2
GUIDE-CHAIN 12053 12053-0100 1
ARM-COMP-SWING 33001 33001-0157 1
SHAFT-SWING ARM 33032 33032-0019 1
SLEEVE 42036 42036-0036 2
WASHER,THRUST,16.5X28X1 92022 92022-170 1
BEARING-NEEDLE,BM222925 92046 92046-0027 4
PLUG 92066 92066-0074 2
PLUG 92066A 92066-0077 1
SEAL 92093 92093-0062 1
SEAL,SDO22X29X5 92093A 92093-1435 4
COLLAR 92143 92143-1156 2
COLLAR 92152 92152-0402 2
COLLAR 92152A 92152-0431 4
BOLT,FLANGED,10X60 92153 92153-1486 4
BOLT,PIVOT,24MM 92153A 92153-1600 1
NUT,LOCK,16MM 92210 92210-0179 1
NUT,PIVOT,24MM 92210A 92210-0294 1
