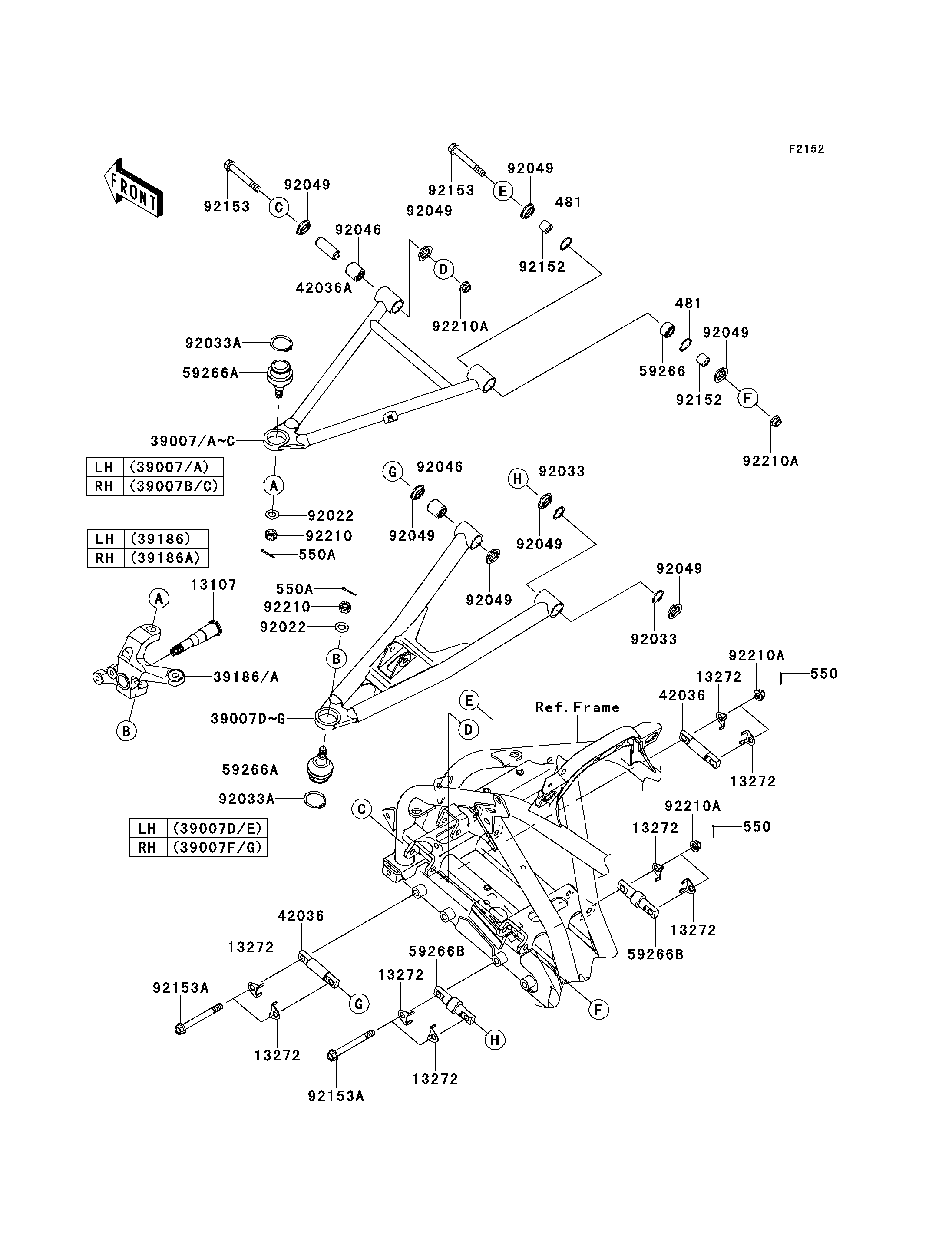

2008 KFX®450R - Front Suspension

DOWNLOAD PDF
SELECT A NEW PART
481
481
550
550
550A
550A
13107
13272
13272
13272
13272
13272
13272
13272
13272
39007
39007B
39007D
39007F
39186
39186A
42036
42036
42036A
59266
59266A
59266A
59266B
59266B
92022
92022
92033
92033
92033A
92033A
92046
92046
92049
92049
92049
92049
92049
92049
92049
92049
92152
92152
92153
92153
92153A
92153A
92210
92210
92210A
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP 481 481J2400 4
PIN-COTTER,2.5X20 550 550AA2520 4
PIN-COTTER,3.0X25 550A 550AA3025 4
SHAFT,FRONT AXLE 13107 13107-0159 2
PLATE 13272 13272-0081 8
ARM-SUSP,FR,UPP,LH,SILVER 39007 39007-0148-16H 1
ARM-SUSP,FR,UPP,RH,SILVER 39007B 39007-0149-16H 1
ARM-SUSP,FR,LWR,LH,SILVER 39007D 39007-0150-16H 1
ARM-SUSP,FR,LWR,RH,SILVER 39007F 39007-0151-16H 1
KNUCKLE,LH 39186 39186-0076 1
KNUCKLE,RH 39186A 39186-0077 1
SLEEVE 42036 42036-0037 2
SLEEVE 42036A 42036-1376 2
JOINT-BALL 59266 59266-0013 2
JOINT-BALL 59266A 59266-0014 4
JOINT-BALL 59266B 59266-0015 2
WASHER,12.3X22X1.6 92022 92022-1065 4
RING-SNAP 92033 92033-0046 4
RING-SNAP,C-TYPE,32MM 92033A 92033-1262 4
BEARING-NEEDLE 92046 92046-1046 4
SEAL-OIL,MHA17245.7F 92049 92049-1223 16
COLLAR,10X17X14.5 92152 92152-1455 4
BOLT,FLANGED,10X70 92153 92153-1606 4
BOLT,FLANGED,10X95 92153A 92153-1859 4
NUT,CASTLE,12MM 92210 92210-0395 4
NUT,LOCK,FLANGED,10MM 92210A 92210-1080 8
