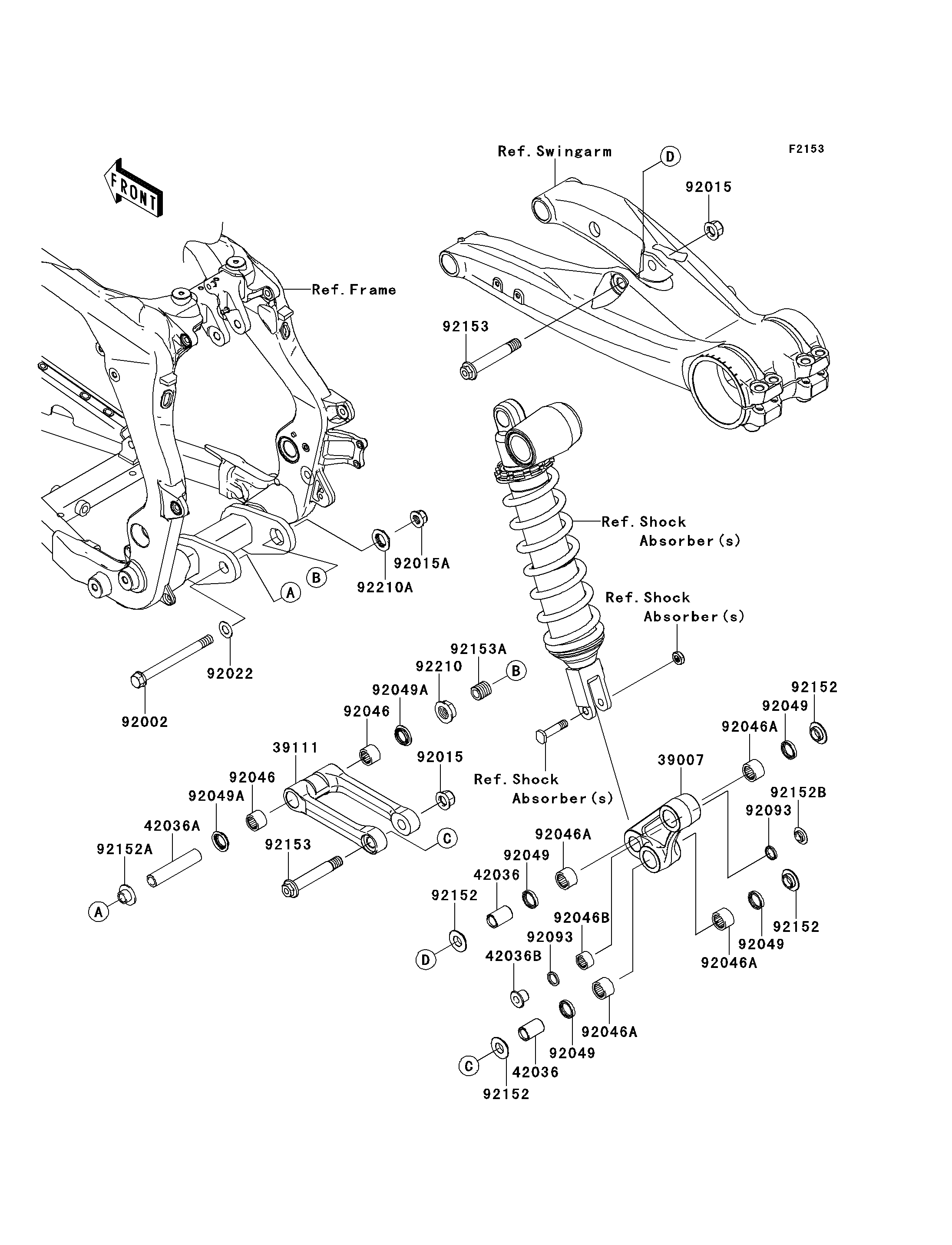

2008 KFX®450R - Rear Suspension

DOWNLOAD PDF
SELECT A NEW PART
39007
39111
42036
42036
42036A
42036B
92002
92015
92015
92015A
92022
92046
92046
92046A
92046A
92046A
92046A
92046B
92049
92049
92049
92049
92049A
92049A
92093
92093
92152
92152
92152
92152
92152A
92152B
92153
92153
92153A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,RR 39007 39007-0074 1
ROD-TIE,SUSPENSION 39111 39111-0047 1
SLEEVE 42036 42036-0038 2
SLEEVE,12X18X88 42036A 42036-0039 1
SLEEVE 42036B 42036-1351 1
BOLT,FLANGED,12X135 92002 92002-1347 1
NUT,FLANGED,14MM 92015 92015-1401 2
NUT,LOCK,FLANGED,12MM 92015A 92015-1433 1
WASHER 92022 92022-107 1
BEARING-NEEDLE,18BM2416 92046 92046-1144 2
BEARING-NEEDLE,F-2016 92046A 92046-1151 4
BEARING-NEEDLE,7E-HVS16X22X12 92046B 92046-1301 1
SEAL-OIL,HF020N3-A 92049 92049-0027 4
SEAL-OIL 92049A 92049-1328 2
SEAL 92093 92093-1436 2
COLLAR 92152 92152-0403 4
COLLAR 92152A 92152-0404 1
COLLAR 92152B 92152-1139 1
BOLT,14MM,L=92 92153 92153-0429 2
BOLT,20M 92153A 92153-1488 1
NUT,20M 92210 92210-0295 1
NUT,20M 92210A 92210-0296 1
