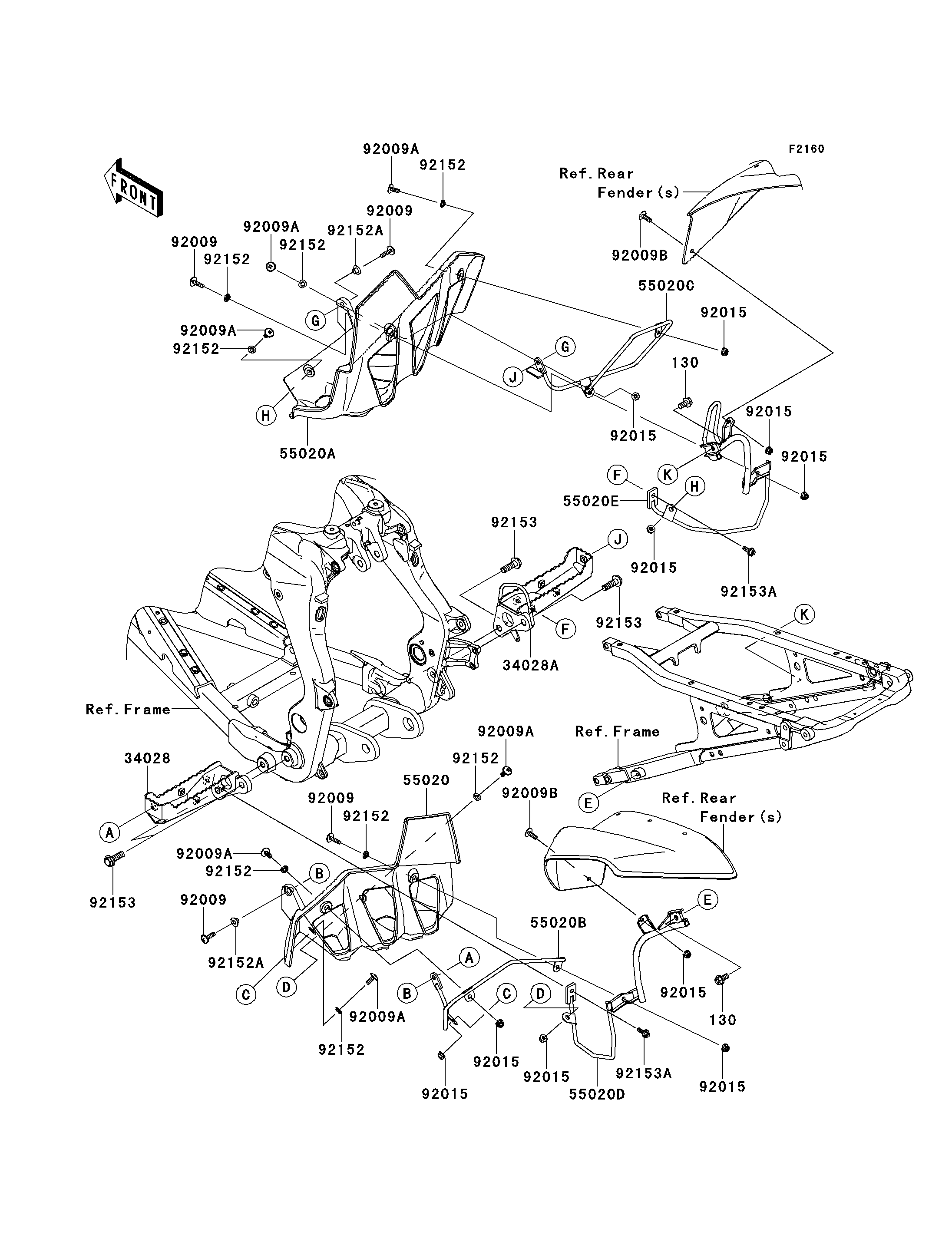

2008 KFX®450R - Footrests

DOWNLOAD PDF
SELECT A NEW PART
130
130
34028
34028A
55020
55020A
55020B
55020C
55020D
55020E
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009B
92009B
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92152
92152
92152
92152
92152
92152
92152
92152
92152A
92152A
92153
92153
92153
92153A
92153A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X16 130 130BB0816 2
STEP,LH 34028 34028-0107 1
STEP,RH 34028A 34028-0108 1
GUARD,FOOT GUARD,LH,F.BLACK 55020 55020-0221-6Z 1
GUARD,FOOT GUARD,RH,F.BLACK 55020A 55020-0222-6Z 1
GUARD,SUB,LH 55020B 55020-0223 1
GUARD,SUB,RH 55020C 55020-0226 1
GUARD,MAIN,LH 55020D 55020-0406 1
GUARD,MAIN,RH 55020E 55020-0407 1
SCREW,6X22,BLACK 92009 92009-1256 4
SCREW,6X16 92009A 92009-1621 6
SCREW,6X18 92009B 92009-1663 2
NUT,LOCK,FLANGED,6MM 92015 92015-1603 10
COLLAR 92152 92152-0250 8
COLLAR 92152A 92152-0286 2
BOLT,FLANGED,10X30 92153 92153-0801 4
BOLT,FLANGED,6X16 92153A 92153-1551 2
