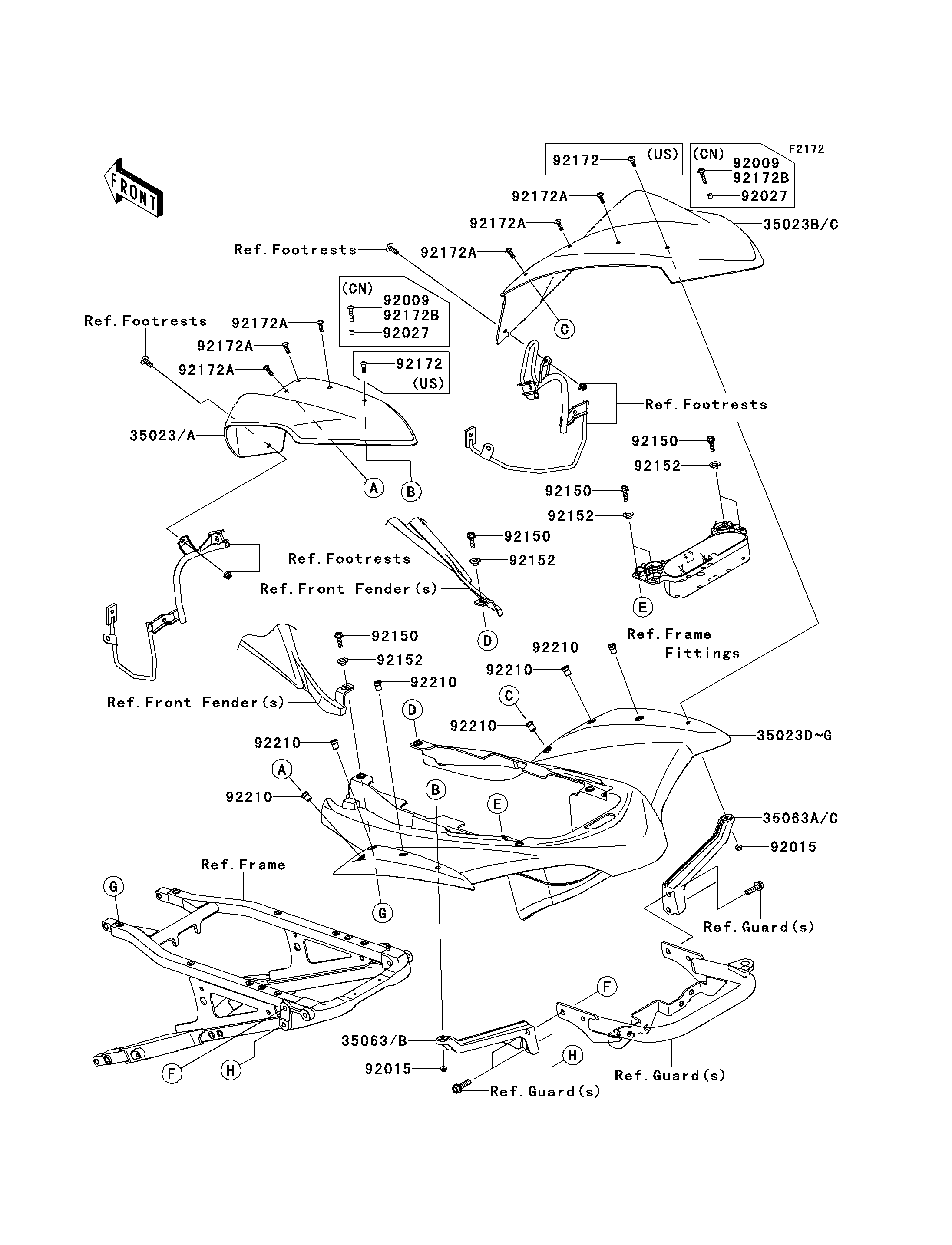

Parts Diagrams |
35023A
35023C
35023G
35063
35063A
92015
92015
92150
92150
92150
92150
92152
92152
92152
92152
92172A
92172A
92172A
92172A
92172A
92172A
92210
92210
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FENDER-REAR,OUTER,LH,BLACK | 35023A | 35023-0081-839 | 1 | ||
| FENDER-REAR,OUTER,RH,BLACK | 35023C | 35023-0082-839 | 1 | ||
| FENDER-REAR,MAIN,BLACK | 35023G | 35023-0113-839 | 1 | ||
| STAY,REAR FENDER,LH | 35063 | 35063-0290 | 1 | ||
| STAY,REAR FENDER,RH | 35063A | 35063-0291 | 1 | ||
| NUT,LOCK,FLANGED,5MM | 92015 | 92015-1752 | 2 | ||
| BOLT,6X20 | 92150 | 92150-1014 | 6 | ||
| COLLAR | 92152 | 92152-0401 | 6 | ||
| SCREW,5MM | 92172A | 92172-0292 | 6 | ||
| NUT,WELL,5MM | 92210 | 92210-0370 | 6 | ||
| SCREW,5X20 | 92009 | 92009-1934 | 2 | CN | |
| COLLAR | 92027 | 92027-1987 | 2 | CN | |
| SCREW,5MM | 92172 | 92172-0261 | 2 | US |
