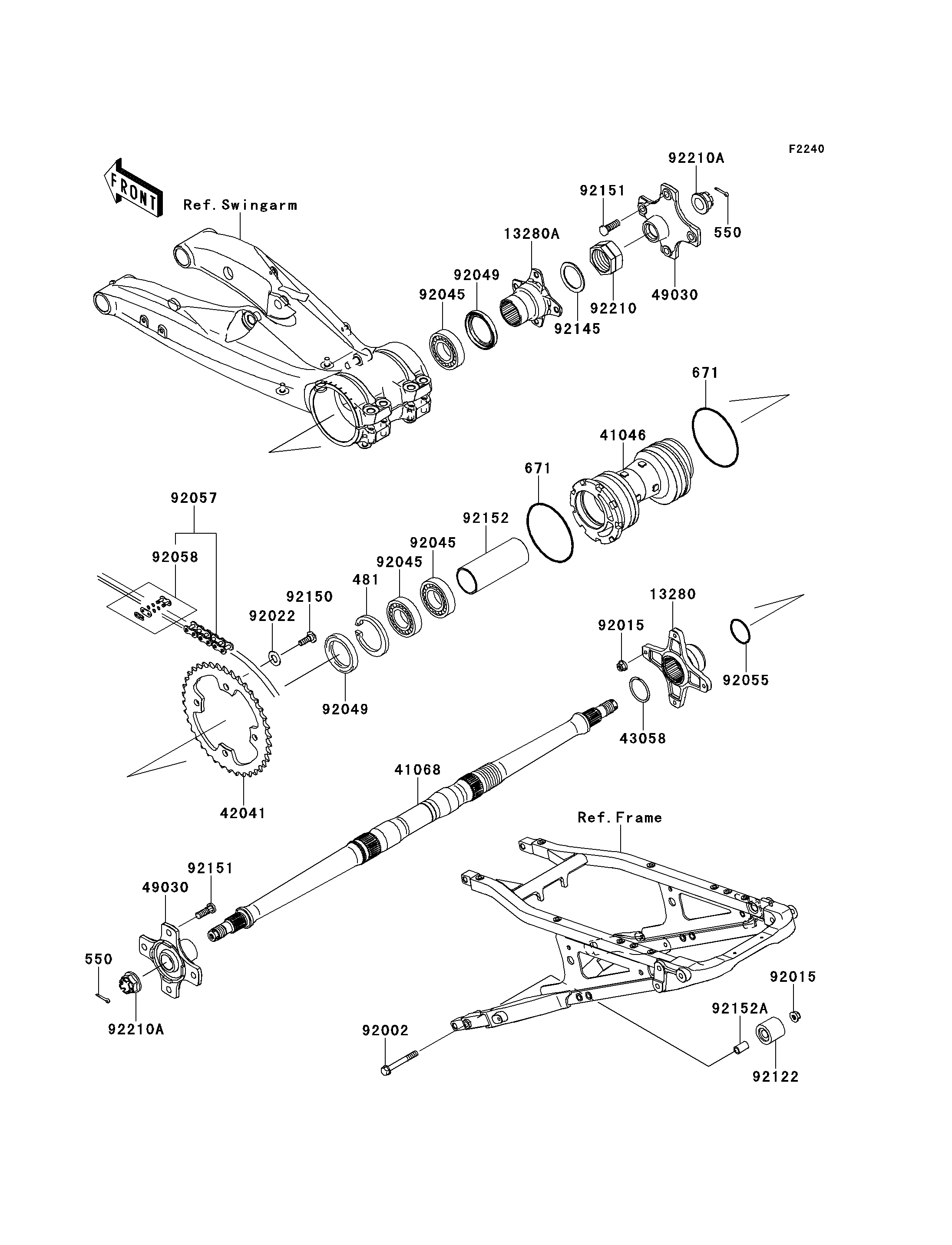

2008 KFX®450R - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
481
550
550
671
671
13280
13280A
41046
41068
42041
43058
49030
49030
92002
92015
92015
92022
92045
92045
92045
92049
92049
92055
92057
92058
92122
92145
92150
92151
92151
92152
92152A
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,65MM 481 481J6500 1
PIN-COTTER,4.0X25 550 550AA4025 2
O RING,85MM 671 671B2585 2
HOLDER,SPROCKET 13280 13280-0254 1
HOLDER,REAR DISC 13280A 13280-0255 1
HOUSING-BEARING 41046 41046-0015 1
AXLE,RR 41068 41068-0052 1
SPROCKET-HUB,38T 42041 42041-0044 1
RING 43058 43058-0016 1
HUB,RR 49030 49030-0029 2
BOLT,FLANGED,8X70 92002 92002-1349 1
NUT,8MM 92015 92015-1432 5
WASHER,10.5X20X1 92022 92022-239 4
BEARING-BALL,6908-82RSC3 92045 92045-0115 3
SEAL-OIL,TCY 48X65X8 92049 92049-1573 2
RING-O,35.2X1.9 92055 92055-520 1
CHAIN,DRIVE,EK520SR-O2X94L 92057 92057-0119 1
JOINT-CHAIN,DRIVE,EK520SR-O2 92058 92058-1060 1
ROLLER,CHAIN GUIDE 92122 92122-1216 1
SPRING 92145 92145-0417 1
BOLT,8X25 92150 92150-1858 4
BOLT,10X29.5 92151 92151-1392 8
COLLAR,40X45.6X117.5 92152 92152-0405 1
COLLAR,8.5X12.5X20.5 92152A 92152-1340 1
NUT,LOCK,38MM 92210 92210-0298 1
NUT,CASTLE,20MM 92210A 92210-0299 2
