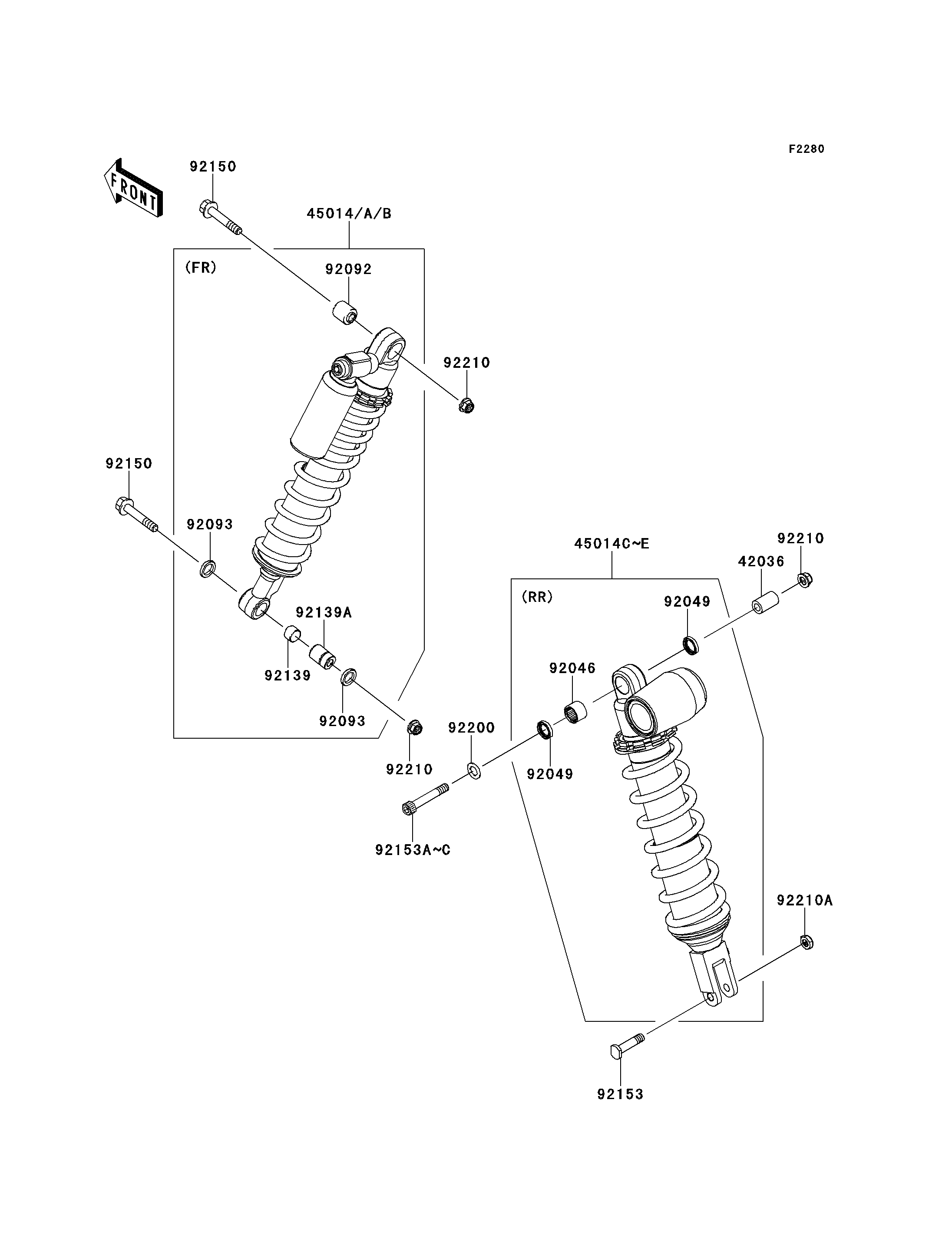

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
42036
45014
45014C
92046
92049
92049
92092
92093
92093
92139
92139A
92150
92150
92153
92153A
92153C
92200
92210
92210
92210
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SLEEVE,10.1X18X30 | 42036 | 42036-1258 | 1 | ||
| SHOCKABSORBER,FR,P.WHITE | 45014 | 45014-0184-EH | 2 | ||
| SHOCKABSORBER,RR,P.WHITE | 45014C | 45014-0185-EH | 1 | ||
| BEARING-NEEDLE,SFYZM182417 | 92046 | 92046-1272 | 1 | ||
| SEAL-OIL,MHA18244 | 92049 | 92049-1225 | 2 | ||
| BUSHING-RUBBER | 92092 | 92092-1058 | 2 | ||
| SEAL | 92093 | 92093-0033 | 4 | ||
| BUSHING | 92139 | 92139-0084 | 2 | ||
| BUSHING | 92139A | 92139-0213 | 2 | ||
| BOLT,FLANGED,10X51 | 92150 | 92150-1719 | 4 | ||
| BOLT,10X45 | 92153 | 92153-0937 | 1 | ||
| BOLT,SOCKET,10X65 | 92153A | 92153-1705 | 1 | ( - JKASFGB1 8B509638) | |
| BOLT,SOCKET,10X63 | 92153C | 92153-1943 | 1 | (JKASFGB1 8B509639 - ) | |
| WASHER,10.6X18X1.2 | 92200 | 92200-0330 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1080 | 5 | ||
| NUT,LOCK,10MM | 92210A | 92210-1184 | 1 |
