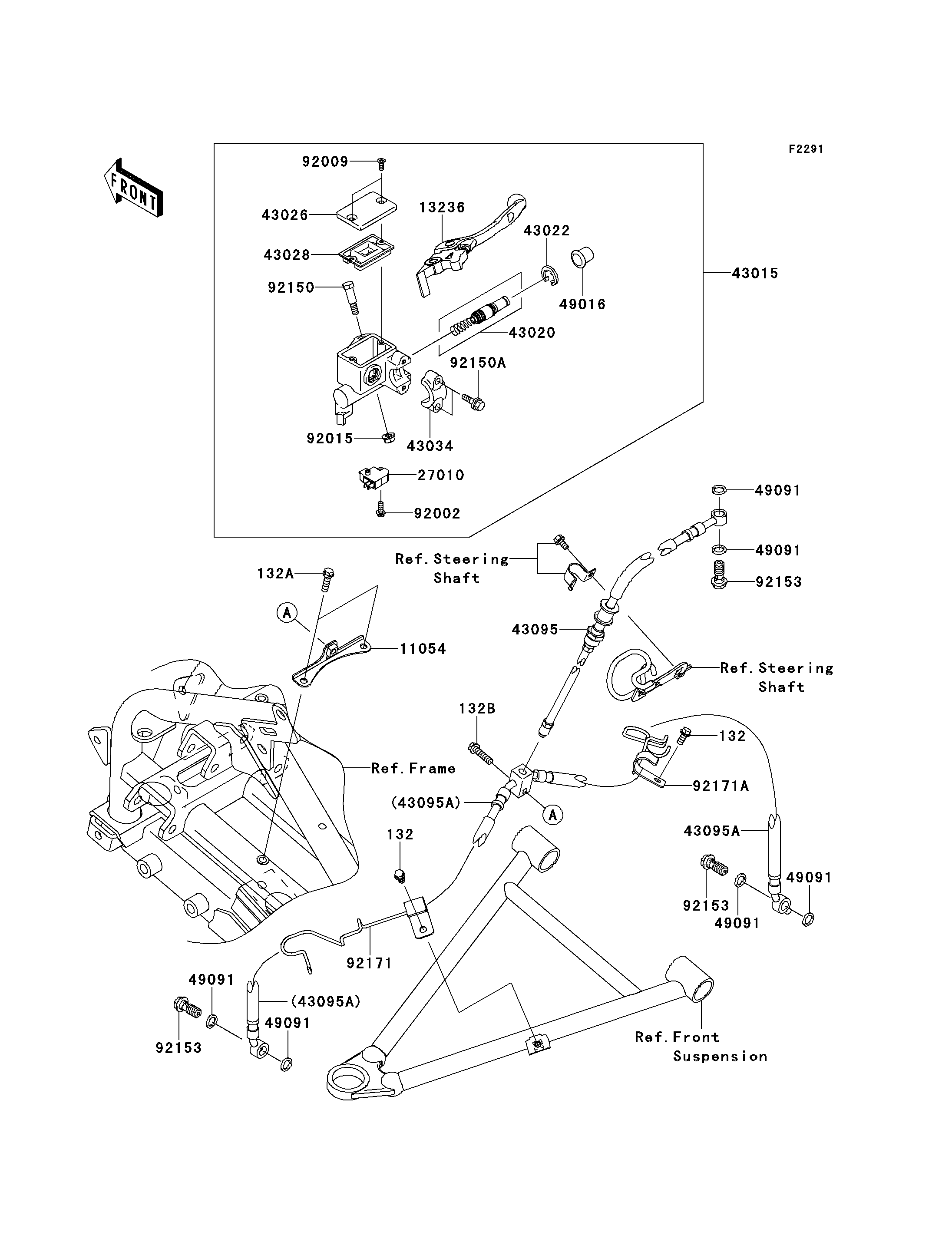

2008 KFX®450R - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
132B
11054
13236
27010
43015
43020
43022
43026
43028
43034
43095
43095A
49016
49091
49091
49091
49091
49091
49091
92002
92009
92015
92150
92150A
92153
92153
92153
92171
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132BB0612 2
BOLT-FLANGED-SMALL,6X20 132A 132BB0620 2
BOLT-FLANGED-SMALL,6X25 132B 132BB0625 1
BRACKET 11054 11054-0291 1
LEVER-COMP,FRONT BRAKE 13236 13236-0118 1
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0070 1
PISTON-COMP-BRAKE 43020 43020-1098 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-0010 1
DIAPHRAGM 43028 43028-1061 1
HOLDER-BRAKE 43034 43034-1110 1
HOSE-BRAKE 43095 43095-0344 1
HOSE-BRAKE 43095A 43095-0375 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 6
BOLT,SCREW,4X12 92002 92002-1323 1
SCREW 92009 92009-1795 2
NUT,FLANGED,6MM 92015 92015-1528 1
BOLT,LEVER SET 92150 92150-1451 1
BOLT 92150A 92150-1452 2
BOLT,OIL,L=23 92153 92153-0627 3
CLAMP,LH 92171 92171-0890 1
CLAMP,RH 92171A 92171-0891 1
