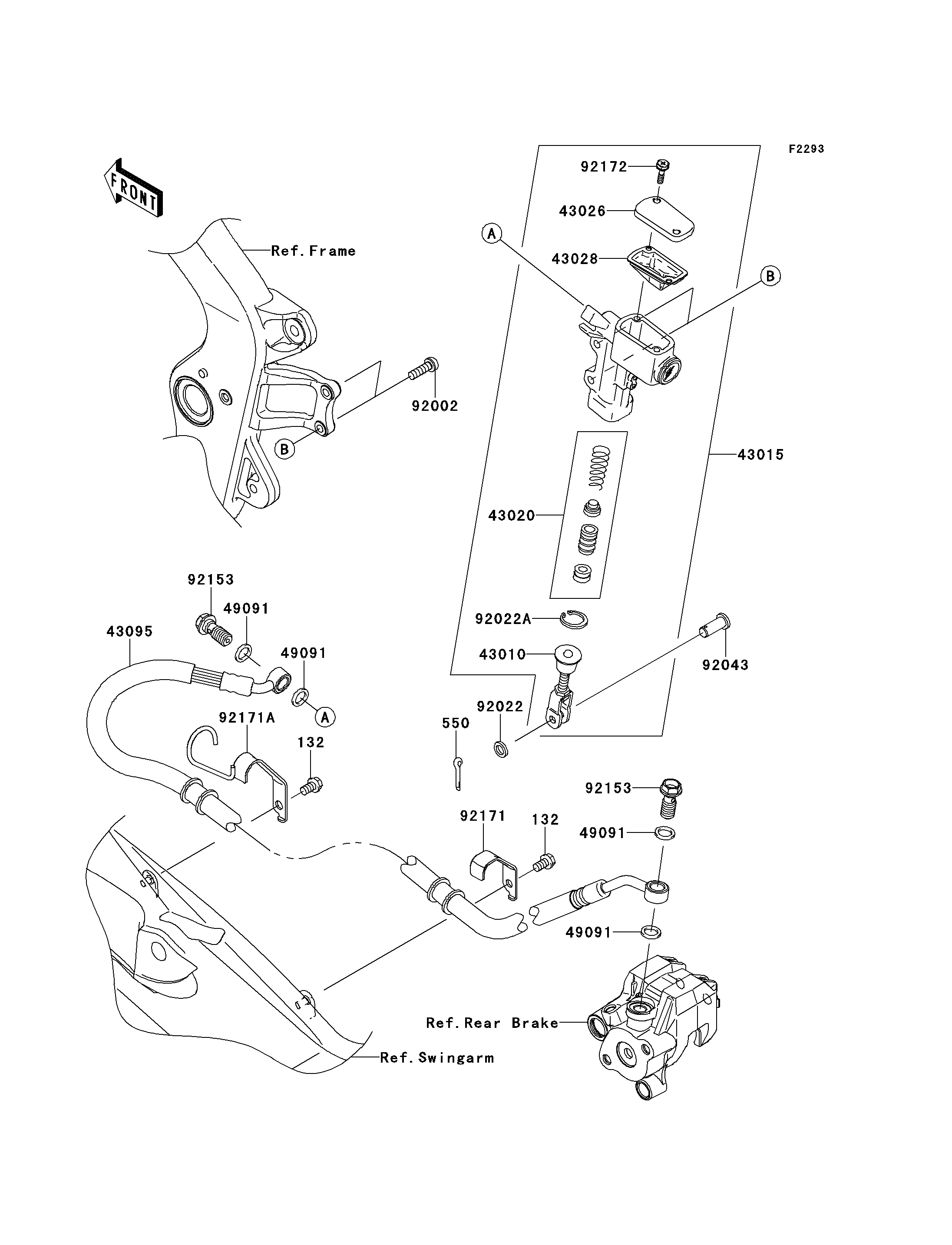

2008 KFX®450R - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
132
132
550
43010
43015
43020
43026
43028
43095
49091
49091
49091
49091
92002
92022
92022A
92043
92153
92153
92171
92171A
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X10 132 132BA0610 2
PIN-COTTER,2.0X15 550 550AA2015 1
ROD-ASSY-BRAKE 43010 43010-0006 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0107 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-1086 1
DIAPHRAGM 43028 43028-1092 1
HOSE-BRAKE,RR 43095 43095-0345 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
BOLT,6X20 92002 92002-1418 2
WASHER,8.5X13X1 92022 92022-1028 1
WASHER,CIRCRIP 92022A 92022-1601 1
PIN 92043 92043-0004 1
BOLT,OIL,L=23 92153 92153-0627 2
CLAMP 92171 92171-0661 1
CLAMP 92171A 92171-1648 1
SCREW 92172 92172-0286 2
