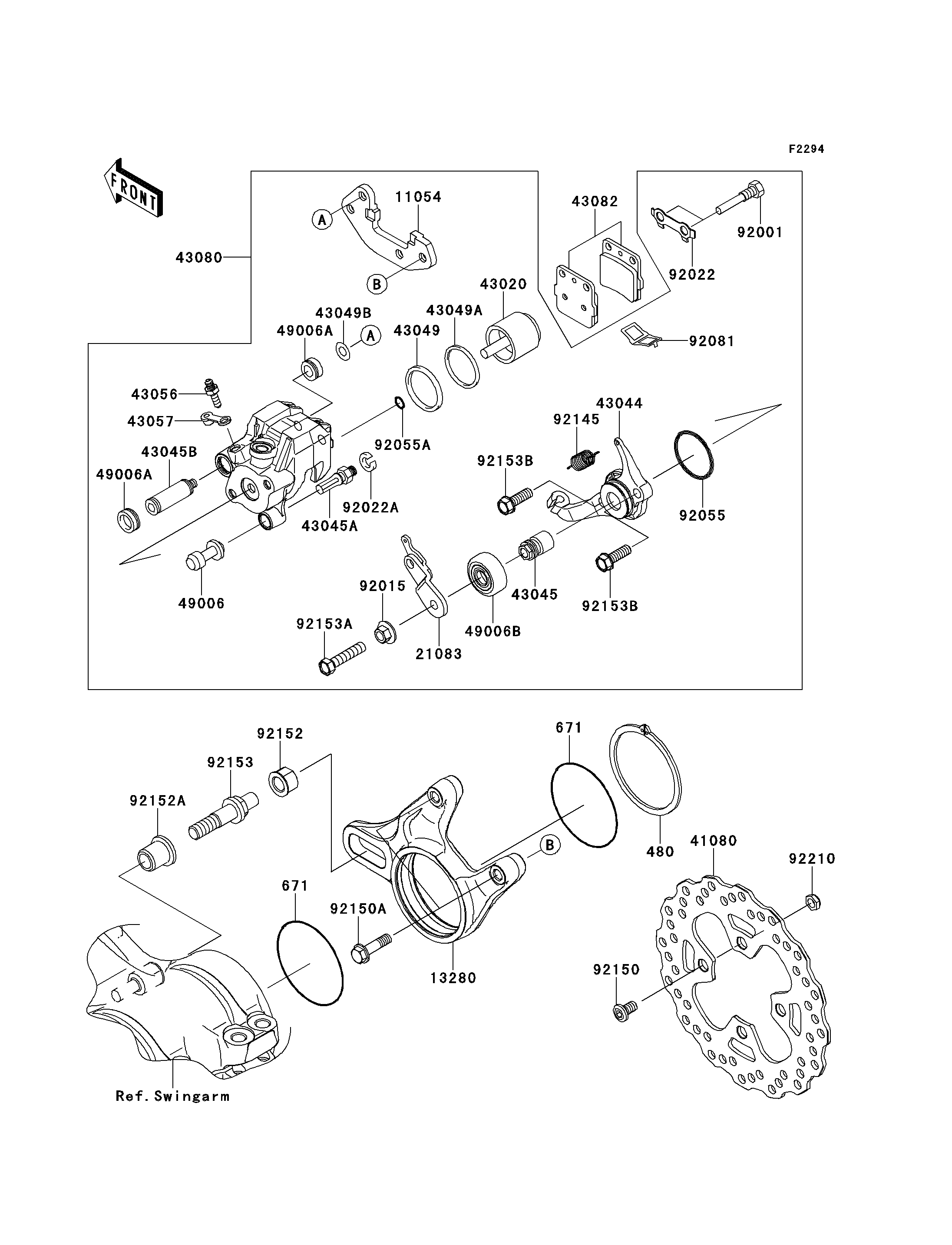

2008 KFX®450R - Rear Brake

DOWNLOAD PDF
SELECT A NEW PART
480
671
671
11054
13280
21083
41080
43020
43044
43045
43045A
43045B
43049
43049A
43049B
43056
43057
43080
43082
49006
49006A
49006A
49006B
92001
92015
92022
92022A
92055
92055A
92081
92145
92150
92150A
92152
92152A
92153
92153A
92153B
92153B
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,75MM 480 480J7500 1
O RING 671 671B2575 2
BRACKET,REAR CALIPER 11054 11054-1865 1
HOLDER,REAR CALIPER 13280 13280-0177 1
ARM 21083 21083-0038 1
DISC,RR 41080 41080-0097 1
PISTON-COMP-BRAKE 43020 43020-1102 1
HOLDER-COMP-CALIPER,RR 43044 43044-0023 1
SHAFT-CALIPER 43045 43045-0001 1
SHAFT-CALIPER 43045A 43045-1010 1
SHAFT-CALIPER 43045B 43045-1051 1
PACKING,PISTON SEAL 43049 43049-1023 1
PACKING,PISTON SEAL 43049A 43049-1024 1
PACKING 43049B 43049-1025 1
BREATHER 43056 43056-1055 1
CAP-BREATHER 43057 43057-1001 1
CALIPER-SUB-ASSY,RR 43080 43080-0058 1
PAD-ASSY-BRAKE 43082 43082-1066 1
BOOT,CALIPER 49006 49006-1088 1
BOOT,CALIPER 49006A 49006-1089 2
BOOT,CALIPER 49006B 49006-1193 1
BOLT,PAD HOLDER 92001 92001-1723 2
NUT 92015 92015-1600 1
WASHER,LOCK 92022 92022-1372 1
WASHER,WAVE 92022A 92022-1373 1
RING-O 92055 92055-0135 1
RING-O 92055A 92055-1351 1
SPRING,PAD 92081 92081-1502 1
SPRING 92145 92145-0514 1
BOLT,DISC PLATE,8X15 92150 92150-1811 4
BOLT 92150A 92150-1919 2
COLLAR 92152 92152-0406 1
COLLAR 92152A 92152-0407 1
BOLT,12MM 92153 92153-1491 1
BOLT 92153A 92153-1848 1
BOLT 92153B 92153-1849 2
NUT,LOCK,8MM 92210 92210-1243 4
