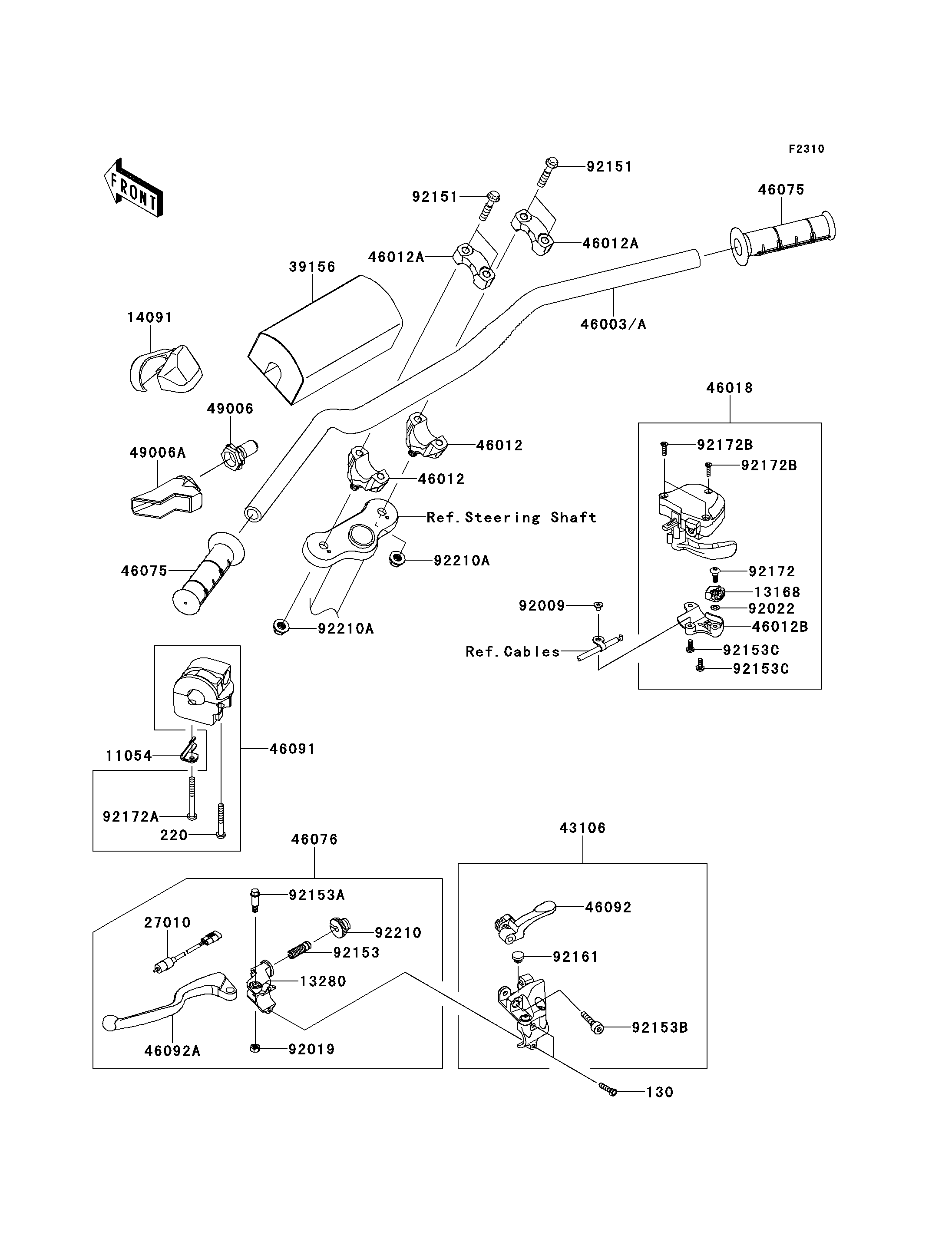

2008 KFX®450R - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
130
220
11054
13168
13280
14091
27010
39156
43106
46003A
46012
46012
46012A
46012A
46012B
46018
46075
46075
46076
46091
46092
46092A
49006
49006A
92009
92019
92022
92151
92151
92153
92153A
92153B
92153C
92153C
92161
92172
92172A
92172B
92172B
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X20 130 130CA0520 2
SCREW-PAN-CROSS,5X35 220 220AB0535 1
BRACKET,SWITCH BOX STOPPER 11054 11054-1824 1
LEVER 13168 13168-0152 1
HOLDER,CLUTCH LEVER 13280 13280-0204 1
COVER 14091 14091-0729 1
SWITCH,CLUTCH 27010 27010-0061 1
PAD,HANDLE 39156 39156-0201 1
LEVER-ASSY-PARKING BRAKE 43106 43106-0001 1
HANDLE 46003A 46003-0122 1
HOLDER-HANDLE,LWR 46012 46012-0043 2
HOLDER-HANDLE,UPP 46012A 46012-0044 2
HOLDER-HANDLE 46012B 46012-0045 1
GRIP-ASSY-THROTTLE 46018 46018-0061 1
GRIP 46075 46075-0065 2
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0038 1
HOUSING-ASSY-CONTROL,LH 46091 46091-0097 1
LEVER-GRIP 46092 46092-0024 1
LEVER-GRIP,CLUTCH 46092A 46092-0025 1
BOOT,CLUTCH CABLE 49006 49006-0027 1
BOOT 49006A 49006-0046 1
SCREW,5X6 92009 92009-1671 1
NUT,LOCK,6MM 92019 92019-008 1
WASHER,5.2X13X1 92022 92022-1380 1
BOLT,FLANGED,8X35 92151 92151-1537 4
BOLT,BOLT ADJUSTING 92153 92153-0773 1
BOLT 92153A 92153-0807 1
BOLT 92153B 92153-1718 1
BOLT 92153C 92153-1906 2
DAMPER 92161 92161-1084 1
SCREW,5MM 92172 92172-0261 1
SCREW,5X38 92172A 92172-0332 1
SCREW,4X16 92172B 92172-0342 3
NUT,BOLT WIRE ADJUSTING 92210 92210-0167 1
NUT,LOCK,FLANGED,10MM 92210A 92210-1080 2
