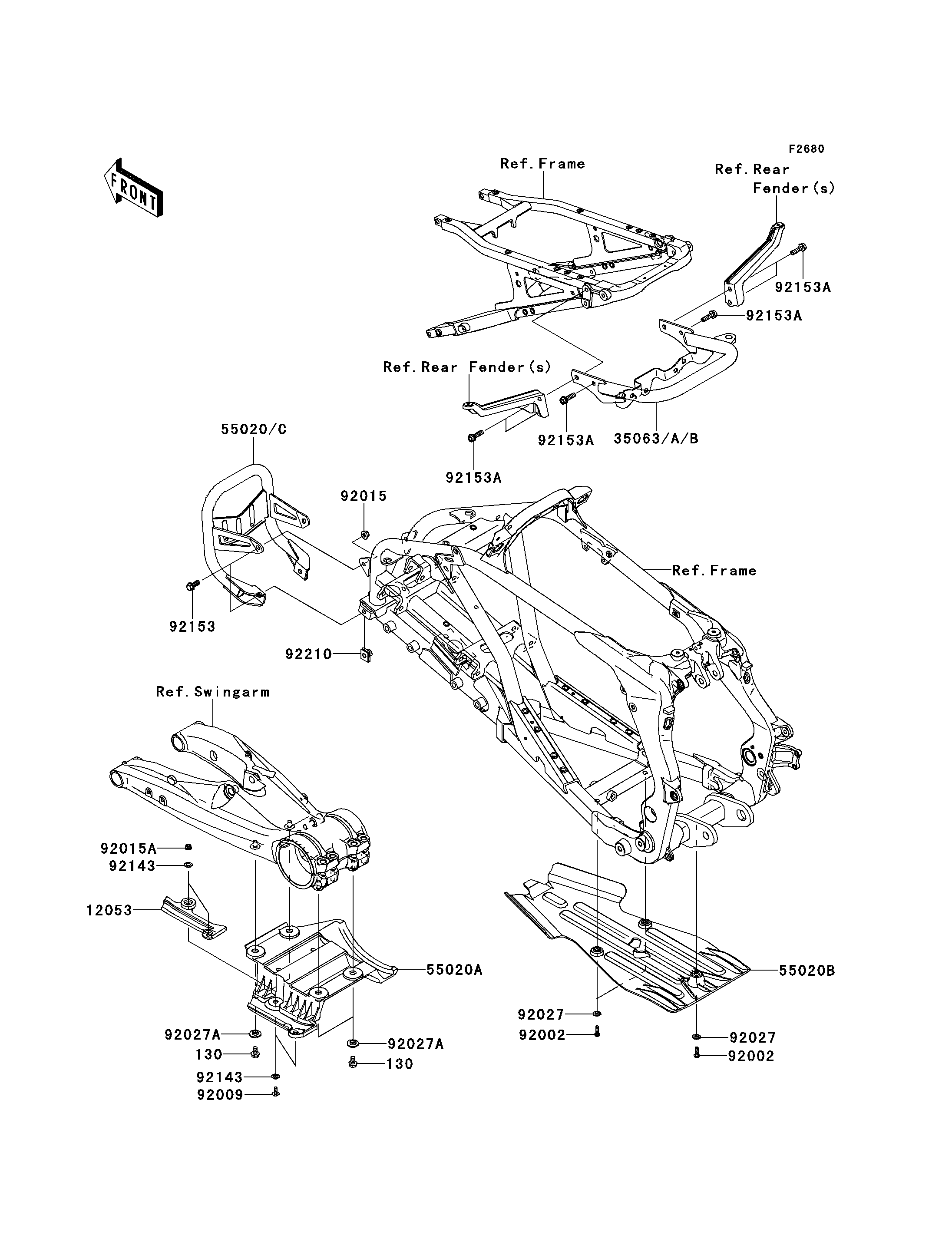

2008 KFX®450R - Guard(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
12053
35063
55020
55020A
55020B
92002
92002
92009
92015
92015A
92027
92027
92027A
92027A
92143
92143
92153
92153A
92153A
92153A
92153A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X14 130 130BA0814 4
GUIDE-CHAIN 12053 12053-0083 1
STAY,REAR GRAB BAR 35063 35063-0476 1
GUARD,FR 55020 55020-0227 1
GUARD,SWING ARM 55020A 55020-0393 1
GUARD,ENGINE,UNDER 55020B 55020-0394 1
BOLT,6X20 92002 92002-1418 3
SCREW,6X15 92009 92009-3830 2
NUT,8MM 92015 92015-1432 2
NUT,LOCK,FLANGED,6MM 92015A 92015-1603 2
COLLAR,L=4.6 92027 92027-1168 3
COLLAR 92027A 92027-1354 4
COLLAR 92143 92143-1087 4
BOLT,8X20 92153 92153-0892 4
BOLT,FLANGED,8X28 92153A 92153-1101 6
NUT,8MM 92210 92210-0376 2
