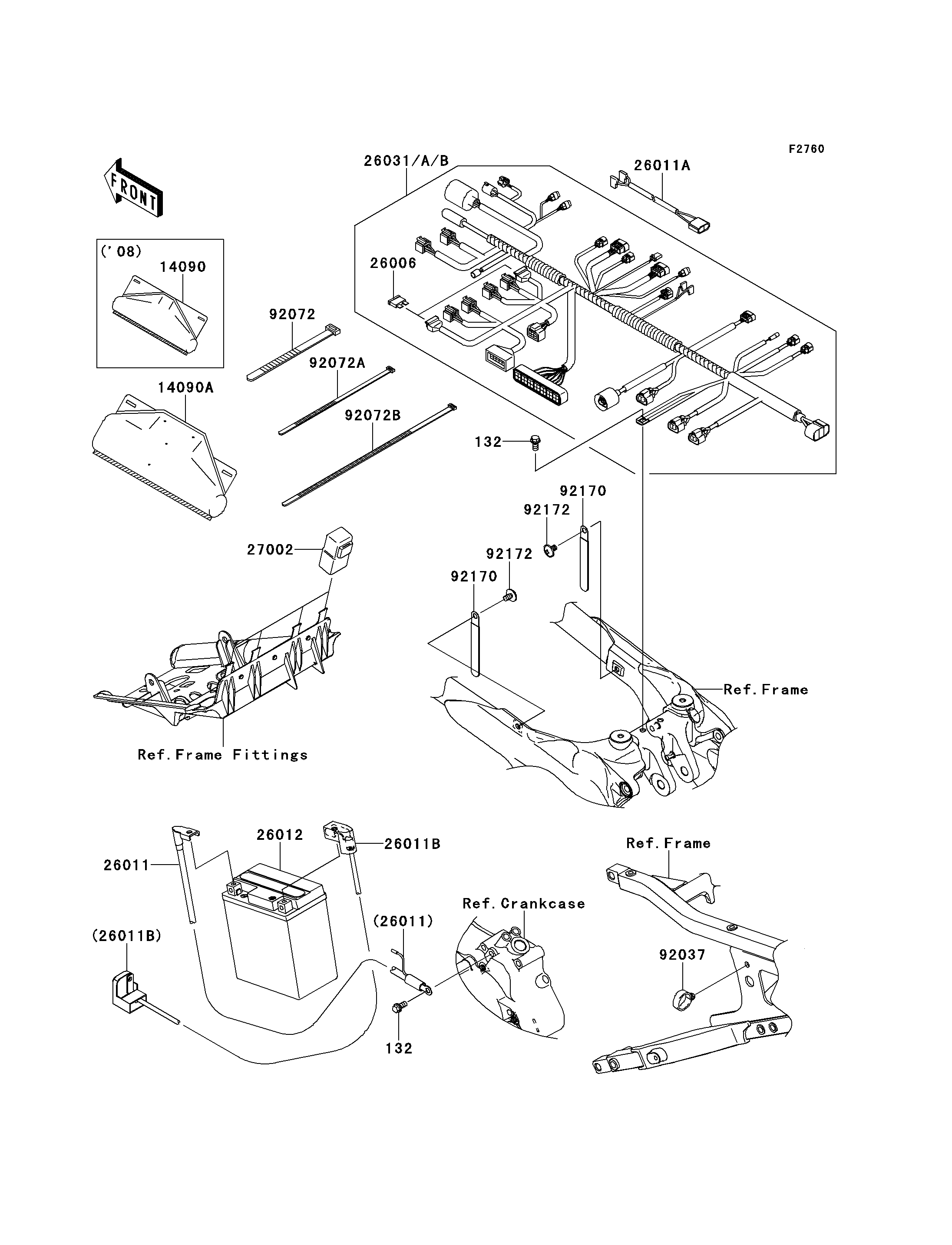

2008 KFX®450R - Chassis Electrical Equipment
132
132
14090
14090A
26006
26011
26011A
26011B
26012
26031
27002
92037
92072
92072A
92072B
92170
92170
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X12 | 132 | 132BA0612 | 2 | ||
| COVER,COUPLER | 14090 | 14090-1331 | 1 | ||
| COVER,COUPLER | 14090A | 14090-1611 | 1 | ||
| FUSE,10A | 26006 | 26006-0009 | 4 | ||
| WIRE-LEAD,BATTERY(-) | 26011 | 26011-0098 | 1 | ||
| WIRE-LEAD,FRONT BRAKE | 26011A | 26011-0119 | 1 | ||
| WIRE-LEAD,BATTERY(+) | 26011B | 26011-0149 | 1 | ||
| BATTERY,YTX7L-BS,12V 6AH | 26012 | 26012-0084 | 1 | ||
| HARNESS,MAIN | 26031 | 26031-0404 | 1 | ||
| RELAY-ASSY | 27002 | 27002-1088 | 4 | ||
| CLAMP,HOSE | 92037 | 92037-1827 | 1 | ||
| BAND,L=149 | 92072 | 92072-031 | 2 | ||
| BAND,L=188 | 92072A | 92072-1239 | 8 | ||
| BAND,L=368.3 | 92072B | 92072-3872 | 6 | ||
| CLAMP | 92170 | 92170-1925 | 2 | ||
| SCREW,6X10 | 92172 | 92172-0005 | 2 |
