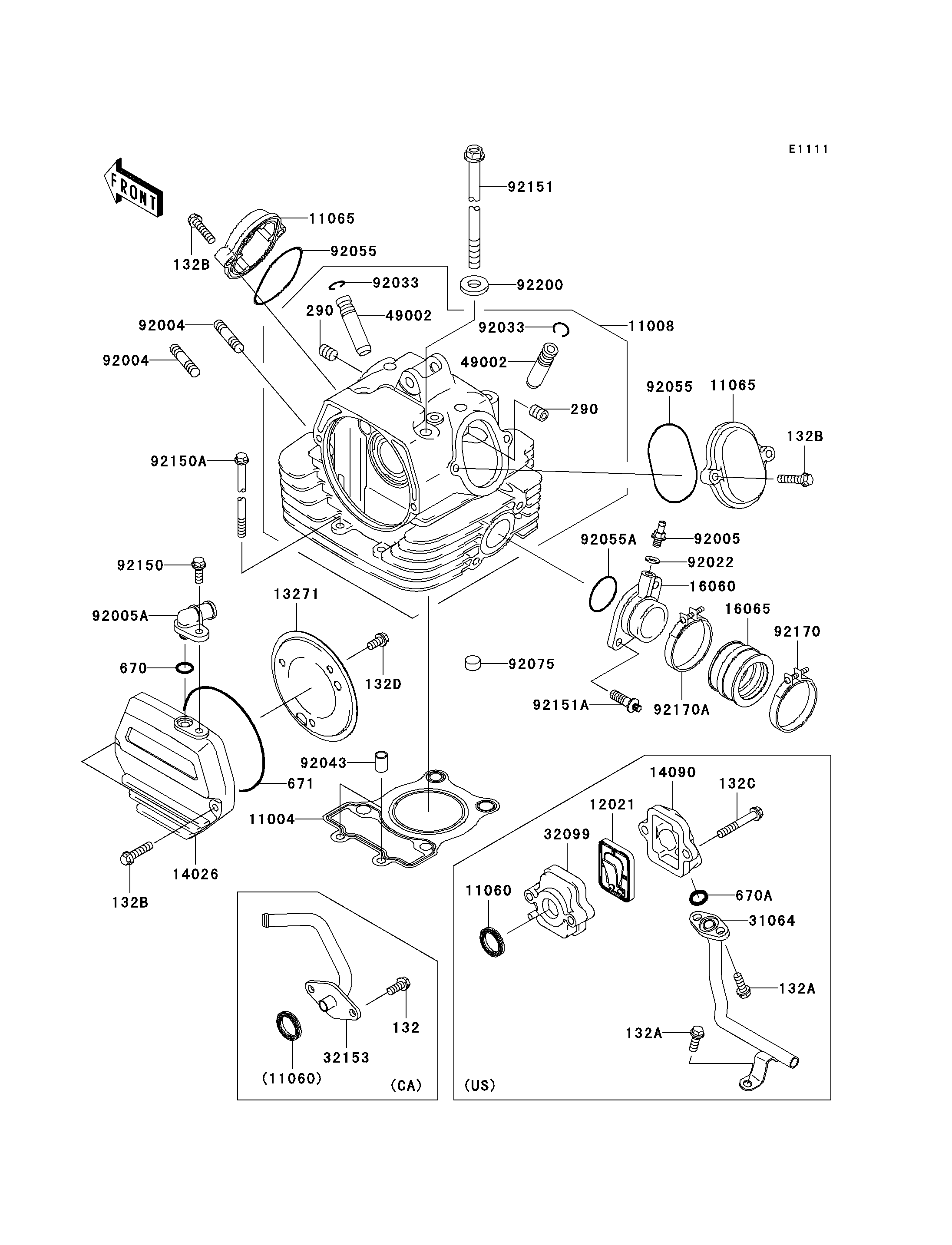

Parts Diagrams |
132B
132B
132B
132B
132B
132B
11004
11004
11008
11008
11060
11060
11065
11065
11065
11065
13271
13271
14026
14026
16060
16060
16065
16065
49002
49002
49002
49002
92004
92004
92004
92004
92005
92005
92005A
92005A
92022
92022
92033
92033
92033
92033
92043
92043
92055
92055
92055
92055
92055A
92055A
92075
92075
92150
92150
92150A
92150A
92151
92151
92151A
92151A
92170
92170
92170A
92170A
92200
92200
132D
132D
290
290
290
290
670
670
671
671
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL,6X25 | 132B | 132BA0625 | 6 | ||
GASKET-HEAD | 11004 | 11004-1335 | 1 | ||
HEAD-COMP-CYLINDER | 11008 | 11008-1384 | 1 | ||
GASKET,REED VALVE | 11060 | 11060-1815 | 1 | ||
CAP,ROCKER CASE | 11065 | 11065-0077 | 2 | ||
PLATE,BREATHER | 13271 | 13271-1109 | 1 | ||
COVER-CHAIN,CAM SPROCKET | 14026 | 14026-1256 | 1 | ||
PIPE-INTAKE | 16060 | 16060-1084 | 1 | ||
HOLDER-CARBURETOR | 16065 | 16065-1335 | 1 | ||
GUIDE-VALVE | 49002 | 49002-1116 | AR | ||
STUD,8X30 | 92004 | 92004-1121 | 2 | ||
FITTING,BLEED PIPE | 92005 | 92005-1337 | 1 | ||
FITTING,BREATHER | 92005A | 92005-1342 | 1 | ||
WASHER,6.1X12X1 | 92022 | 92022-077 | 1 | ||
RING-SNAP | 92033 | 92033-1247 | 2 | ||
PIN,12X14 | 92043 | 92043-4009 | 2 | ||
RING-O,53.5X2.6 | 92055 | 92055-112 | 2 | ||
RING-O,32MM | 92055A | 92055-1256 | 1 | ||
DAMPER | 92075 | 92075-1089 | 17 | ||
BOLT,FLANGED,6X16 | 92150 | 92150-1394 | 1 | ||
BOLT,6X110 | 92150A | 92150-1986 | 2 | ||
BOLT,9X228.5 | 92151 | 92151-1092 | 4 | ||
BOLT,6X18 | 92151A | 92151-1726 | 2 | ||
CLAMP,CARBURETOR HOLDER | 92170 | 92170-1094 | 1 | ||
CLAMP,43MM | 92170A | 92170-1527 | 1 | ||
WASHER,9.5X18X1.2 | 92200 | 92200-1037 | 4 | ||
BOLT-FLANGED-SMALL,6X12 | 132D | 132BD0612 | 3 | ||
SCREW-SET-SOCKET,6X6 | 290 | 290Q0606 | 2 | ||
O RING,10MM | 670 | 670B1510 | 1 | ||
O RING | 671 | 671E2595 | 1 | ||
BOLT-FLANGED-SMALL,6X14 | 132 | 132BA0614 | 2 | CA | |
BOLT-FLANGED-SMALL,6X16 | 132A | 132BA0616 | 3 | US | |
BOLT-FLANGED-SMALL,6X40 | 132C | 132BA0640 | 2 | US | |
VALVE-ASSY-REED | 12021 | 12021-1102 | 1 | US | |
COVER,REED VALVE | 14090 | 14090-1852 | 1 | US | |
PIPE-COMP | 31064 | 31064-1205 | 1 | US | |
CASE,REED VALVE | 32099 | 32099-1187 | 1 | US | |
PIPE | 32153 | 32153-1560 | 1 | CA | |
O RING,10MM | 670A | 670B2010 | 1 | US |
