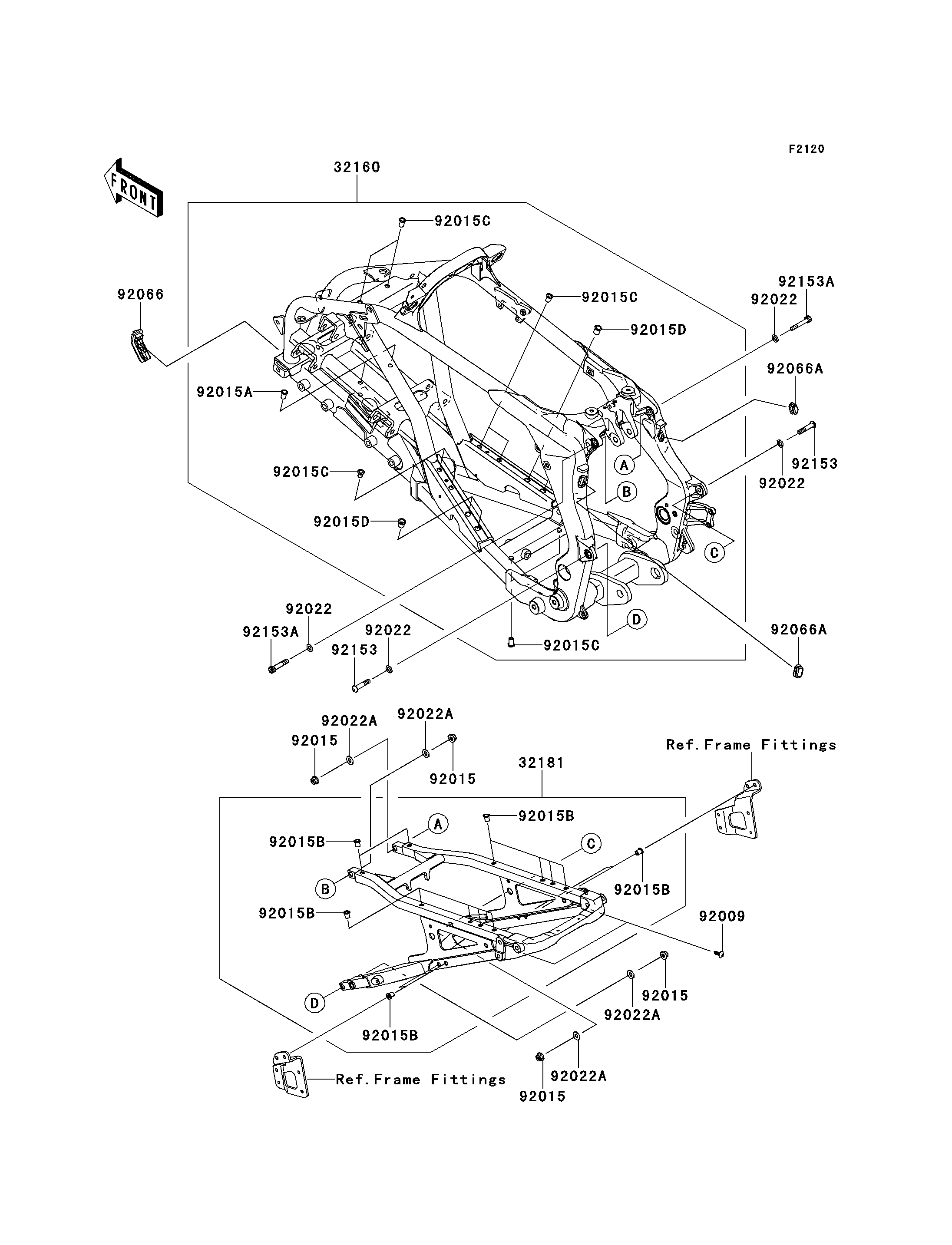

Parts Diagrams |
32160
32181
92009
92015
92015
92015
92015
92015A
92015B
92015B
92015B
92015B
92015B
92015C
92015C
92015C
92015C
92015D
92015D
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92066
92066A
92066A
92153
92153
92153A
92153A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME-COMP | 32160 | 32160-0465 | 1 | ||
| FRAME-SUB-COMP | 32181 | 32181-0067 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 2 | ||
| NUT,8MM | 92015 | 92015-1432 | 4 | ||
| NUT,POP,6MM | 92015A | 92015-1759 | 2 | ||
| NUT,POP,6MM,L=15 | 92015B | 92015-1791 | 14 | ||
| NUT,POP,6MM,L=16.5 | 92015C | 92015-1792 | 8 | ||
| NUT,POP,8MM,L=18 | 92015D | 92015-1794 | 4 | ||
| WASHER,PLAIN,8MM | 92022 | 92022-3043 | 4 | ||
| WASHER,8.2X18X1.5 | 92022A | 92022-3743 | 4 | ||
| PLUG,FRAME TOP,F.SILVER | 92066 | 92066-0082-AG | 1 | ||
| PLUG | 92066A | 92066-0113 | 2 | ||
| BOLT,SOCKET,8X40 | 92153 | 92153-1659 | 2 | ||
| BOLT,SOCKET,8X40 | 92153A | 92153-1913 | 2 |
| FRAME-COMP | |
| REF # | 32160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-SUB-COMP | |
| REF # | 32181 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,6MM,L=15 | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,6MM,L=16.5 | |
| REF # | 92015C |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,8MM,L=18 | |
| REF # | 92015D |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,8MM | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.2X18X1.5 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLUG,FRAME TOP,F.SILVER | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X40 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X40 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
