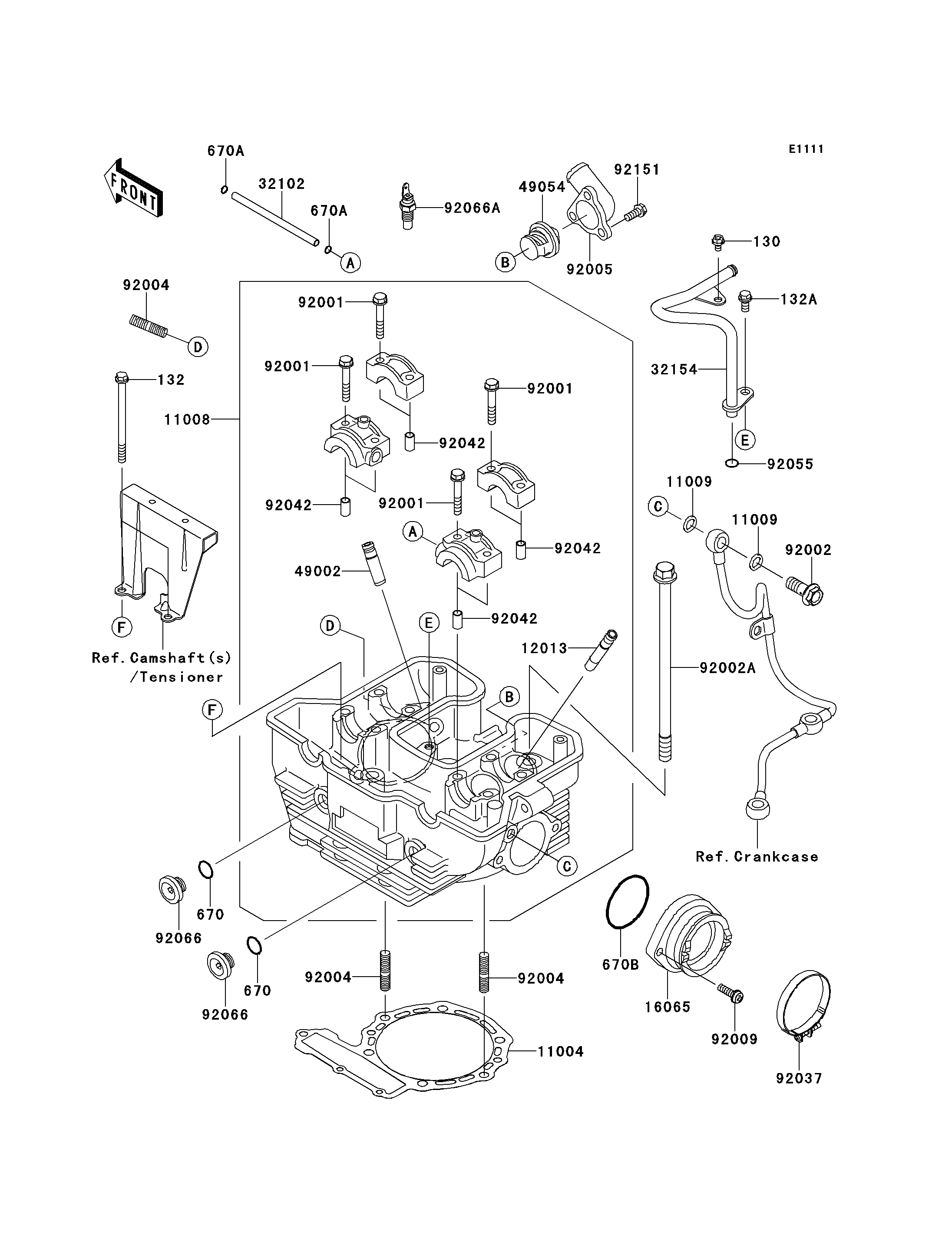

2013 KLR™650 - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
130
132
132A
670
670
670A
670A
670B
11004
11008
11009
11009
12013
16065
32102
32154
49002
49054
92001
92001
92001
92001
92002
92002A
92004
92004
92004
92005
92009
92037
92042
92042
92042
92042
92055
92066
92066
92066A
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X8 130 130BD0508 1
BOLT-FLANGED-SMALL,6X85 132 132BA0685 2
BOLT-FLANGED-SMALL,6X12 132A 132BD0612 1
O RING,15MM 670 670B2015 2
O RING,6MM 670A 670D1506 2
O RING,48MM 670B 670D3048 1
GASKET-HEAD 11004 11004-1158 1
HEAD-COMP-CYLINDER 11008 11008-0202 1
GASKET,10X14.5X1.5 11009 11009-1105 2
GUIDE-VALVE,INTAKE 12013 12013-009 2
HOLDER-CARBURETOR 16065 16065-1151 1
PIPE,OIL LINE 32102 32102-1352 1
PIPE 32154 32154-1555 1
GUIDE-VALVE,EXHAUST 49002 49002-1002 2
THERMOSTAT 49054 49054-1053 1
BOLT,FLANGED,6X38 92001 92001-1105 8
BOLT,BANJO,10X25 92002 92002-1170 1
BOLT,10X191 92002A 92002-1874 4
STUD,8X22 92004 92004-1217 4
FITTING 92005 92005-0715 1
SCREW,6X20 92009 92009-1325 2
CLAMP,55MM 92037 92037-1486 1
PIN,DOWEL,6.3X8X14 92042 92042-007 8
RING-O,10MM 92055 92055-1149 1
PLUG 92066 92066-1158 2
PLUG,SENSOR WATER 92066A 92066-1183 1
BOLT,6X14 92151 92151-1810 3
