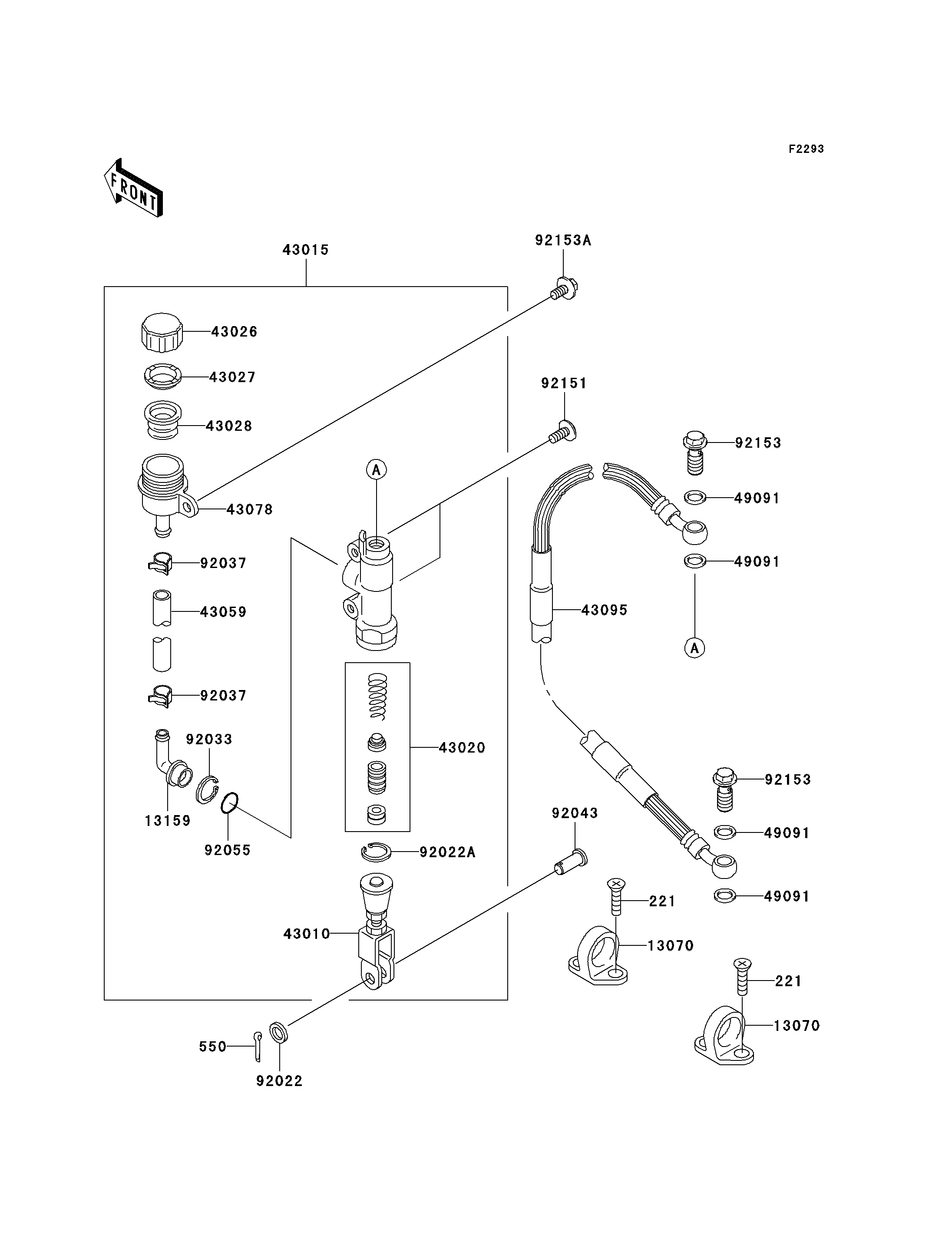

2007 KX85 - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
221
221
550
13070
13070
13159
43010
43015
43020
43026
43027
43028
43059
43078
43095
49091
49091
49091
49091
92022
92022A
92033
92037
92037
92043
92055
92151
92153
92153
92153A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-CSK-CROS,5X10 221 221AA0510 4
PIN-COTTER,2.0X15 550 550AA2015 1
GUIDE,HOSE 13070 13070-1144 2
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-1079 1
CYLINDER-ASSY-MASTER,RR 43015 43015-1606 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-1058 1
PLATE-DIAPHRAGM 43027 43027-1052 1
DIAPHRAGM 43028 43028-1060 1
HOSE-BRAKE,RR MASTER CYLINDER 43059 43059-1670 1
RESERVOIR 43078 43078-1068 1
HOSE-BRAKE,RR,L=542 43095 43095-1233 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
WASHER,8.5X13X1 92022 92022-1028 1
WASHER,CIRCRIP 92022A 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP 92037 92037-1710 2
PIN 92043 92043-0004 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT,SOCKET,6X14 92151 92151-1654 2
BOLT,OIL,L=23 92153 92153-0627 2
BOLT,FLANGED,6X14 92153A 92153-0936 1
