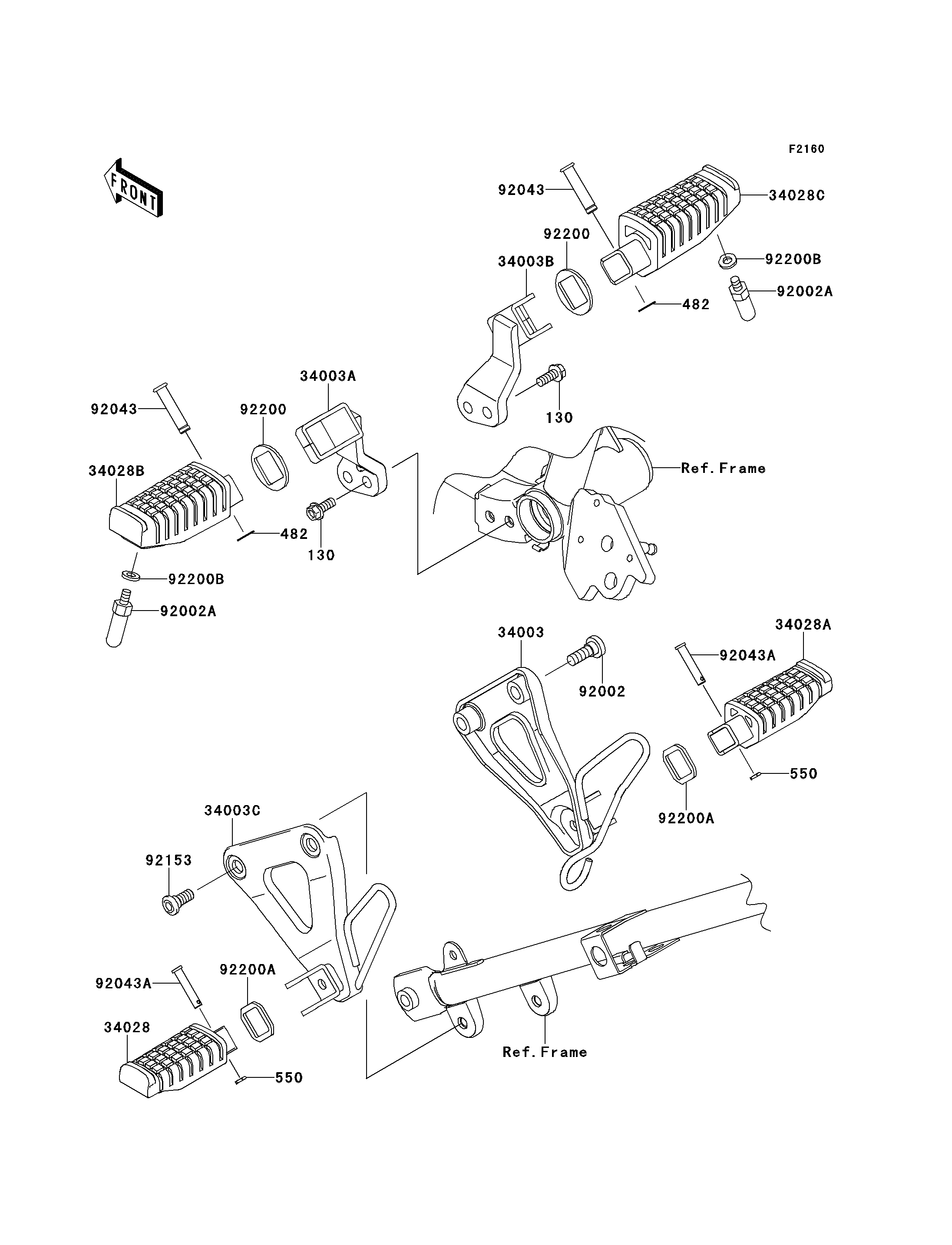

2013 KLR™650 - Footrests

DOWNLOAD PDF
SELECT A NEW PART
130
130
482
482
550
550
34003
34003A
34003B
34003C
34028
34028A
34028B
34028C
92002
92002A
92002A
92043
92043
92043A
92043A
92153
92200
92200
92200A
92200A
92200B
92200B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X20 130 130CA0820 4
CIRCLIP-TYPE-E 482 482EA7000 2
PIN-COTTER,2.0X15 550 550AA2015 2
HOLDER-STEP,RR,RH,F.S.BLACK 34003 34003-0054-18R 1
HOLDER-STEP,FR,LH,F.S.BLACK 34003A 34003-0108-18R 1
HOLDER-STEP,FR,RH,F.S.BLACK 34003B 34003-0109-18R 1
HOLDER-STEP,RR,LH,F.S.BLACK 34003C 34003-1275-18R 1
STEP,RR,LH 34028 34028-0134 1
STEP,RR,RH 34028A 34028-0135 1
STEP,FR,LH 34028B 34028-0136 1
STEP,FR,RH 34028C 34028-0137 1
BOLT,SOCKET,8X23.5 92002 92002-1598 2
BOLT,BANK SENSOR 92002A 92002-1995 2
PIN,8X36.5 92043 92043-1339 2
PIN,6X28 92043A 92043-1464 2
BOLT,SOCKET,8X20 92153 92153-1621 2
WASHER,FR STEP 92200 92200-0560 2
WASHER,RR STEP 92200A 92200-0561 2
WASHER,6.5X13X2.0 92200B 92200-0562 2
