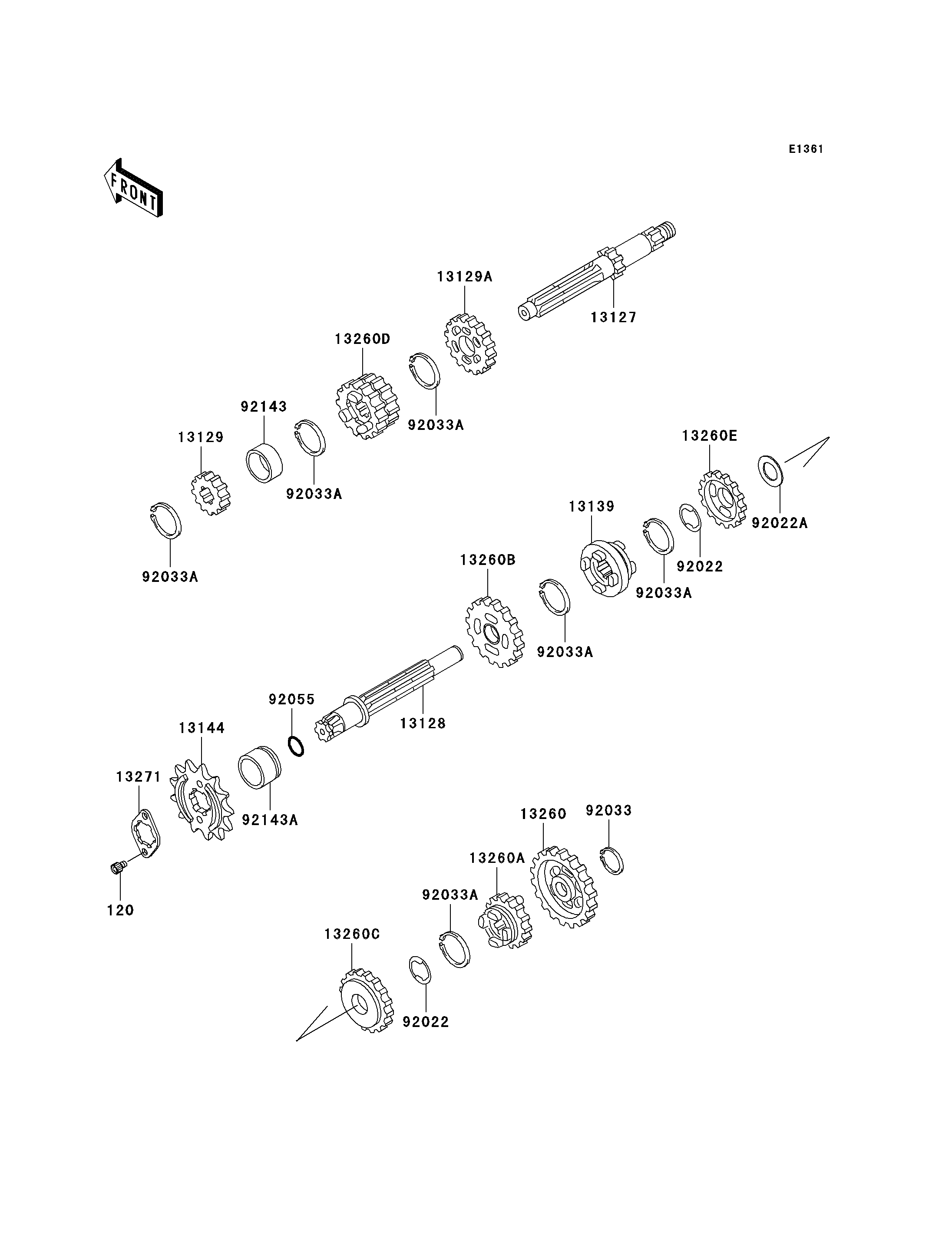

2007 Eliminator 125 - Transmission

DOWNLOAD PDF
SELECT A NEW PART
120
13127
13128
13129
13129A
13139
13144
13260
13260A
13260B
13260C
13260D
13260E
13271
92022
92022
92022A
92033
92033A
92033A
92033A
92033A
92033A
92033A
92055
92143
92143A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X8 120 120Q0608 2
SHAFT-TRANSMISSION INPUT 13127 13127-0001 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-0001 1
GEAR,INPUT 2ND,17T 13129 13129-1555 1
GEAR,INPUT 5TH,21T 13129A 13129-1621 1
SHIFTER 13139 13139-1094 1
SPROCKET-OUTPUT,15T 13144 13144-1310 1
GEAR,OUTPUT LOW,27T 13260 13260-1019 1
GEAR,OUTPUT 5TH,20T 13260A 13260-1693 1
GEAR,OUTPUT 2ND,29T 13260B 13260-1704 1
GEAR,OUTPUT 3RD,26T 13260C 13260-1705 1
GEAR,INPUT 3RD&4TH,20T/22T 13260D 13260-1739 1
GEAR,OUTPUT 4TH,24T 13260E 13260-1740 1
PLATE,SPROCKET 13271 13271-1052 1
WASHER,TOOTHED,20.3X24X0.5 92022 92022-1033 2
WASHER,20.5X25.5X0.5 92022A 92022-252 1
RING-SNAP 92033 92033-1260 1
RING-SNAP 92033A 92033-1313 6
RING-O,17.5X1.5 92055 92055-022 1
COLLAR,20X24.6X10.5 92143 92143-1868 1
COLLAR,SPROCKET 92143A 92143-1869 1
