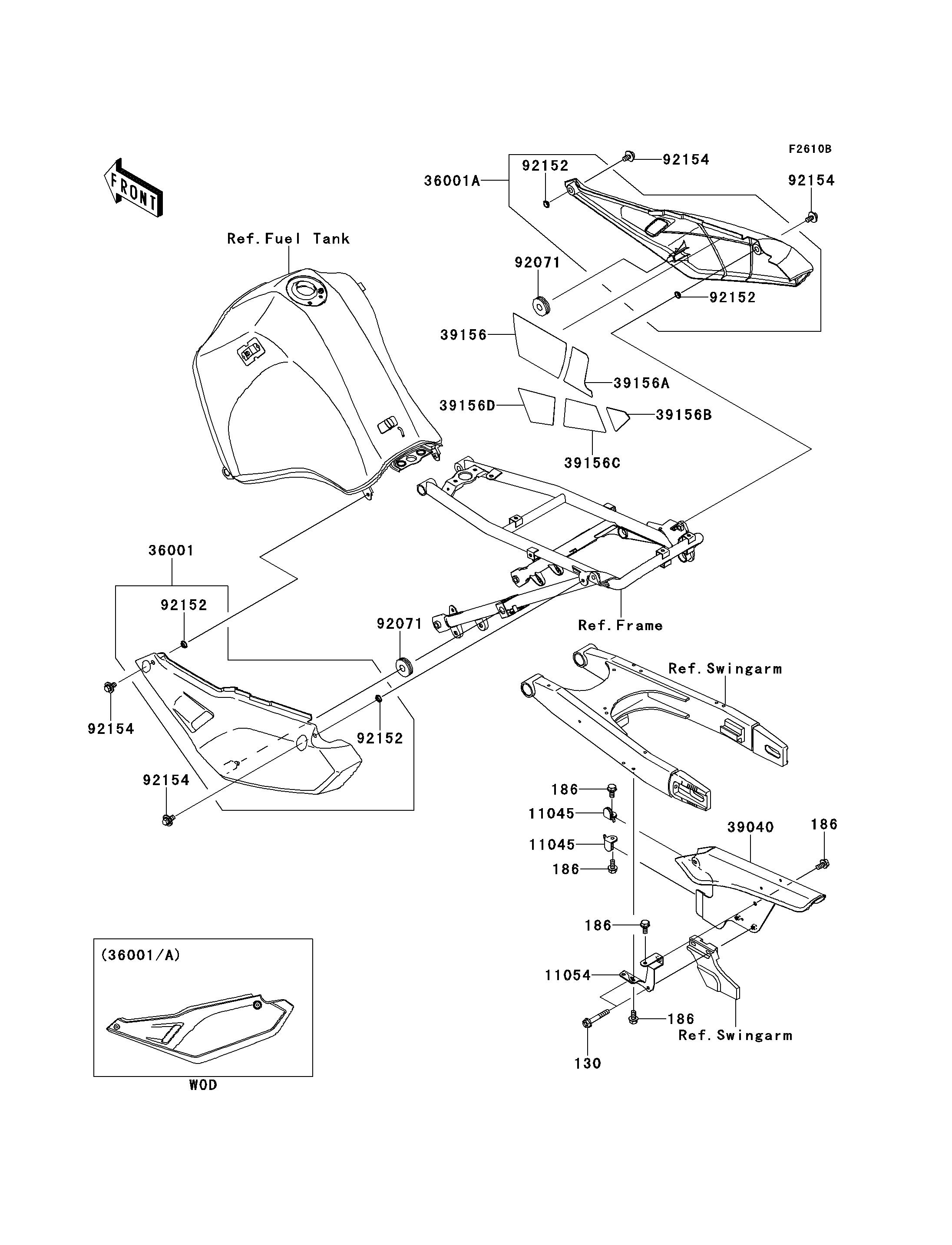

2014 KLR650 New Edition - Side Covers/Chain Cover(EES)

DOWNLOAD PDF
SELECT A NEW PART
130
186
186
186
186
186
11045
11045
11054
36001
36001A
39040
39156
39156A
39156B
39156C
39156D
92071
92071
92152
92152
92152
92152
92154
92154
92154
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X40 130 130BA0640 2
BOLT-UPSET-WP,6X12 186 186BA0612 5
BRACKET,CHAIN CASE,FR 11045 11045-1335 2
BRACKET,CHAIN CASE,RR 11054 11054-0390 1
COVER-SIDE,LH,EBONY 36001 36001-0098-6C 1
COVER-SIDE,RH,EBONY 36001A 36001-0099-6C 1
COVER-ASSY-CHAIN CASE 39040 39040-0003 1
PAD,SIDE COVER,RH,UPP,FR 39156 39156-0652 1
PAD,SIDE COVER,RH,UPP,RR 39156A 39156-0653 1
PAD,SIDE COVER,RH,LWR,RR 39156B 39156-0654 1
PAD,SIDE COVER,RH,LWR,CNT 39156C 39156-0655 1
PAD,SIDE COVER,RH,LWR,FR 39156D 39156-0656 1
GROMMET 92071 92071-056 2
COLLAR,8.8X11.2X4 92152 92152-0909 4
BOLT,FLANGED,6X12 92154 92154-0369 4
