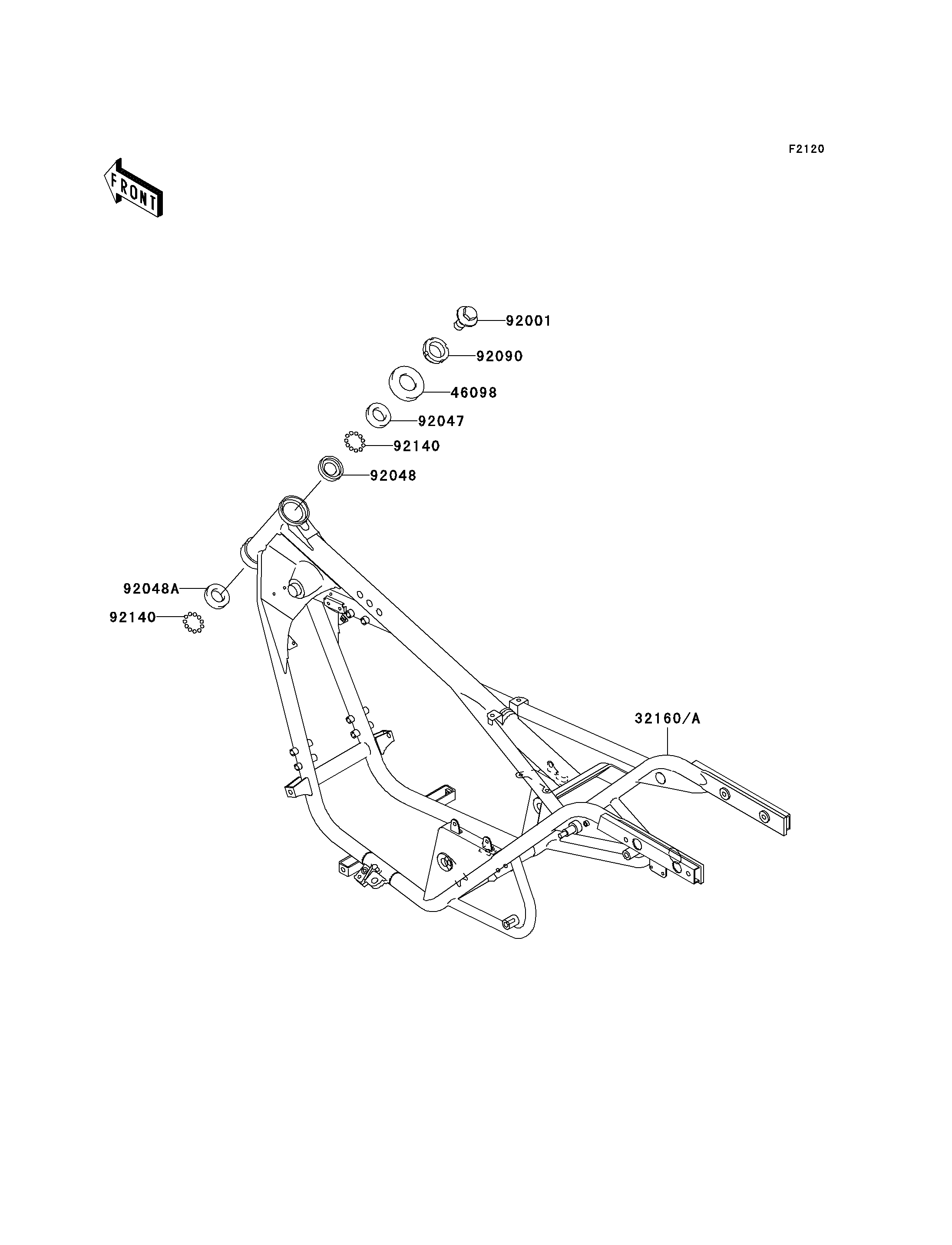

46098
92001
92047
92048
92048A
92090
92140
92140
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STEERING STEM 46098 46098-016 1
BOLT,FLANGED,16X22 92001 92001-1488 1
RACE,STEERING STEM BEARING 92047 92047-011 1
RACE,STEERING STEM BEARING 92048 92048-006 1
RACE,STEERING STEM BEARING 92048A 92048-008 1
NUT,30MM 92090 92090-007 1
BALL,6.35MM 92140 92140-0008 39
FRAME-COMP 32160 32160-1644 1 US
FRAME-COMP 32160A 32160-1765 1 CA
