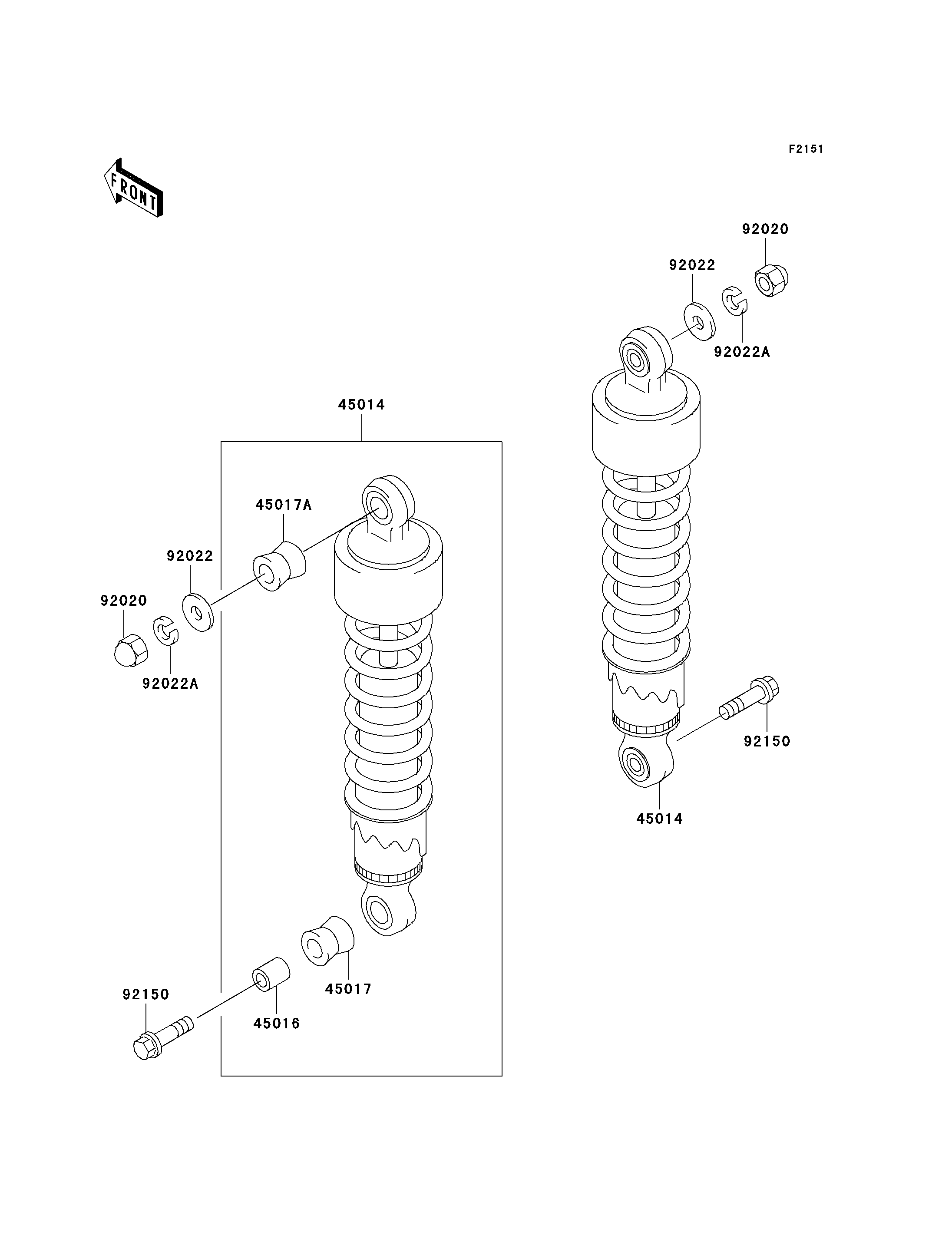

2007 Eliminator 125 - Suspension/Shock Absorber

45014
45014
45016
45017
45017A
92020
92020
92022
92022
92022A
92022A
92150
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHOCKABSORBER 45014 45014-1685 2
COLLAR,SHOCKABSORBER 45016 45016-008 2
DAMPER,SHOCKABSORBER 45017 45017-012 2
DAMPER,SHOCKABSORBER 45017A 45017-015 2
NUT,CAP,10MM 92020 92020-003 2
WASHER,10.5X26X2.3 92022 92022-044 2
WASHER,SPRING,10MM 92022A 92022-1540 2
BOLT,FLANGED,10X38 92150 92150-1297 2
