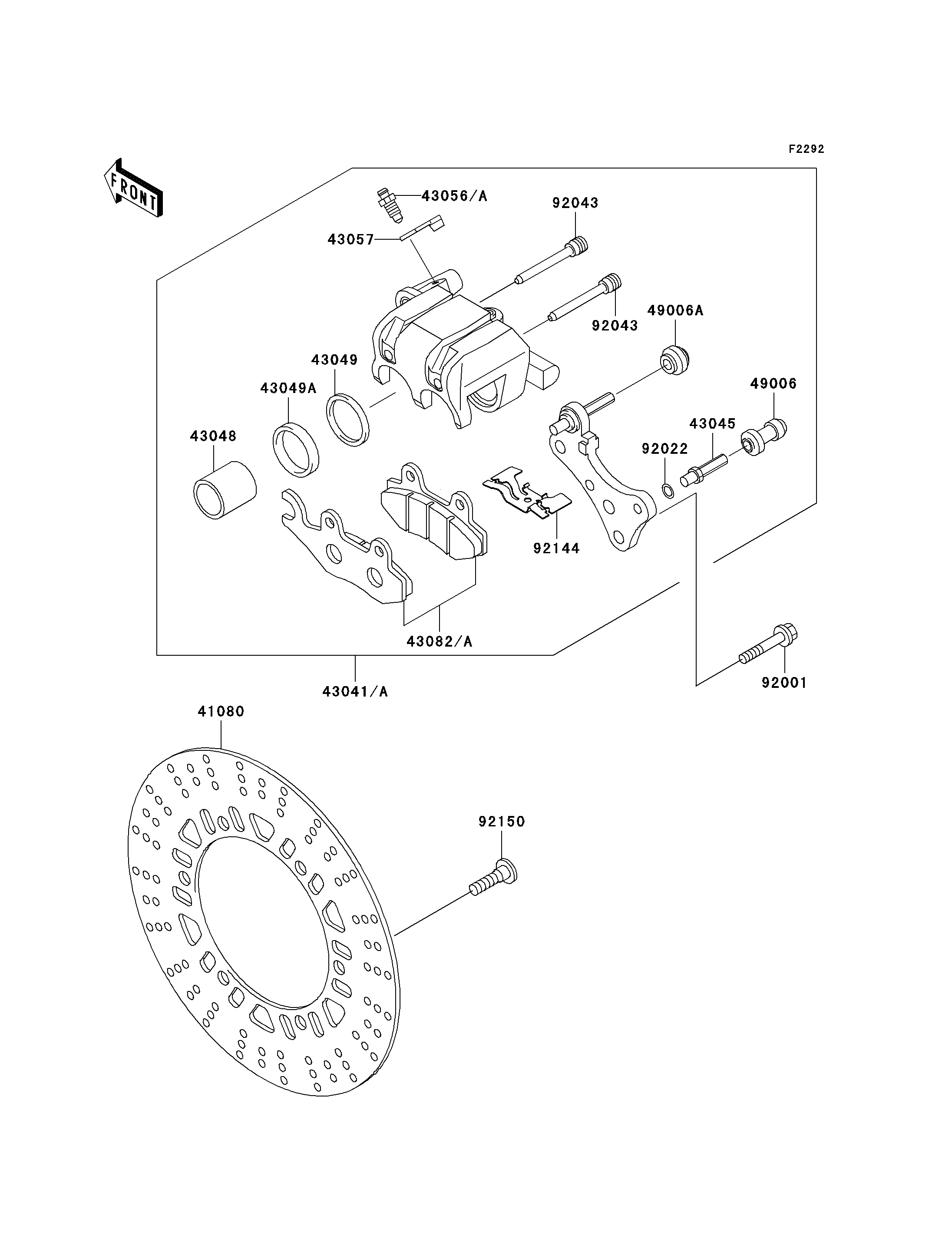

Parts Diagrams |
41080
43041A
43045
43048
43049
43049A
43056A
43057
43082A
49006
49006A
92001
92022
92043
92043
92144
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
DISC,FR | 41080 | 41080-1451 | 1 | ||
CALIPER-ASSY,FR | 43041A | 43041-1695 | 1 | ||
SHAFT-CALIPER | 43045 | 43045-1010 | 1 | ||
PISTON-CALIPER | 43048 | 43048-1068 | 2 | ||
PACKING,PISTON SEAL | 43049 | 43049-1060 | 2 | ||
PACKING,PISTON SEAL | 43049A | 43049-1061 | 2 | ||
BREATHER-BRAKE | 43056A | 43056-1056 | 1 | ||
CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
PAD-ASSY-BRAKE,FR,RH | 43082A | 43082-1238 | 1 | ||
BOOT,CALIPER | 49006 | 49006-1088 | 1 | ||
BOOT,CALIPER | 49006A | 49006-1242 | 1 | ||
BOLT,FLANGED,8X36 | 92001 | 92001-1041 | 2 | ||
WASHER,WAVE | 92022 | 92022-1373 | 1 | ||
PIN,HANGER | 92043 | 92043-1416 | 2 | ||
SPRING,PAD | 92144 | 92144-1557 | 1 | ||
BOLT,8X25 | 92150 | 92150-1858 | 6 |
DISC,FR | |
REF # | 41080 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CALIPER-ASSY,FR | |
REF # | 43041A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-CALIPER | |
REF # | 43045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-CALIPER | |
REF # | 43048 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PACKING,PISTON SEAL | |
REF # | 43049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PACKING,PISTON SEAL | |
REF # | 43049A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BREATHER-BRAKE | |
REF # | 43056A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-BREATHER | |
REF # | 43057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD-ASSY-BRAKE,FR,RH | |
REF # | 43082A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,CALIPER | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,CALIPER | |
REF # | 49006A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X36 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,WAVE | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,HANGER | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,PAD | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,8X25 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
