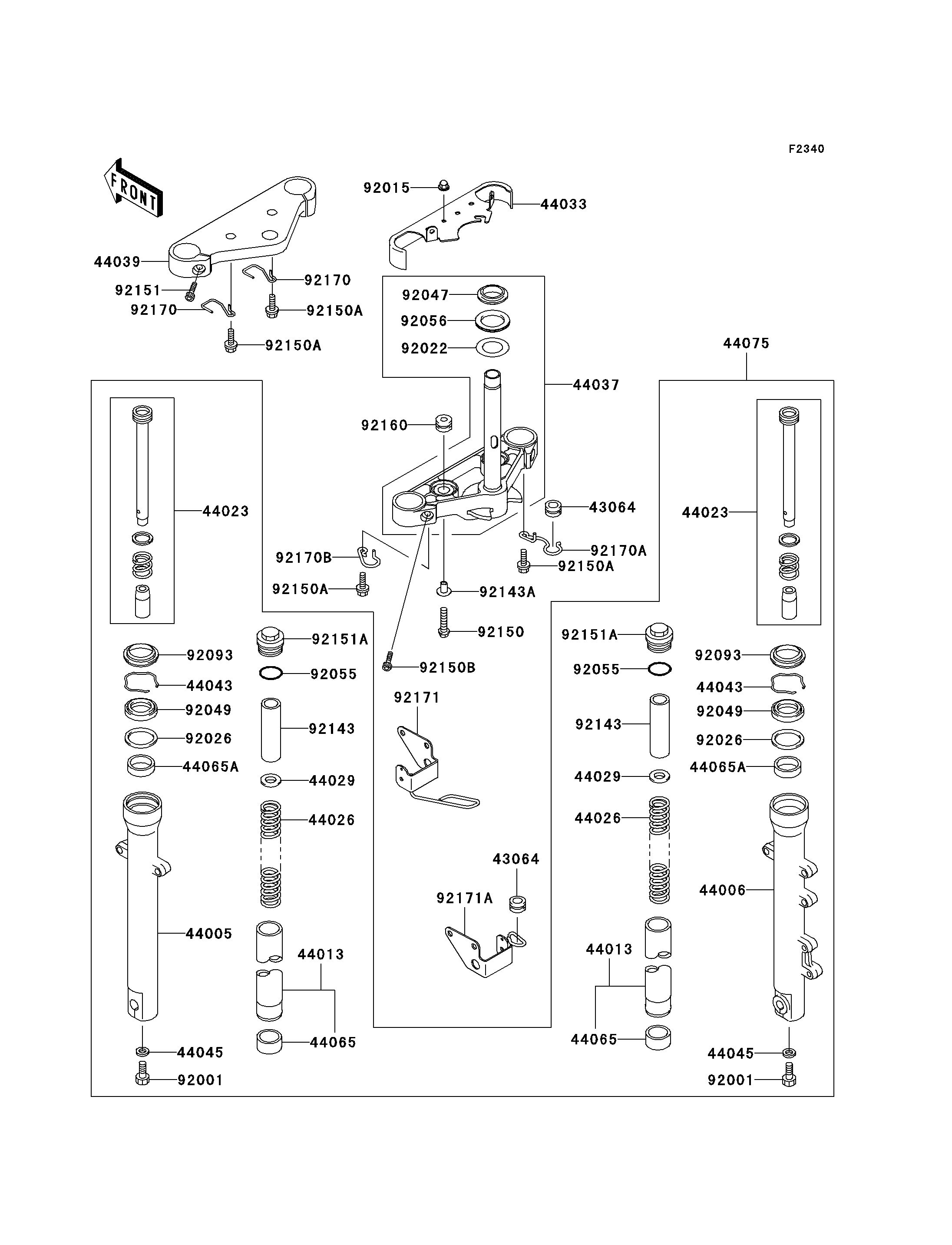

2007 Eliminator 125 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
43064
43064
44005
44006
44013
44013
44023
44023
44026
44026
44029
44029
44033
44037
44039
44043
44043
44045
44045
44065
44065
44065A
44065A
44075
92001
92001
92015
92022
92026
92026
92047
92049
92049
92055
92055
92056
92093
92093
92143
92143
92143A
92150
92150A
92150A
92150A
92150A
92150B
92151
92151A
92151A
92160
92170
92170
92170A
92170B
92171
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GROMMET,HOSE CLAMP 43064 43064-007 2
PIPE-LEFT FORK OUTER 44005 44005-1391 1
PIPE-RIGHT FORK OUTER 44006 44006-1390 1
PIPE-FORK INNER 44013 44013-1444 2
CYLINDER-SET-FORK 44023 44023-1128 2
SPRING-FRONT FORK 44026 44026-1680 2
SEAT-FORK SPRING 44029 44029-1136 2
COVER-FORK 44033 44033-1270 1
HOLDER-FORK UNDER 44037 44037-1361 1
HOLDER-FORK UPPER 44039 44039-1275 1
RING,OIL SEAL STOPPER 44043 44043-057 2
GASKET,FORK CYLINDER BOLT 44045 44045-051 2
BUSHING-FRONT FORK,INNER PIPE 44065 44065-1123 2
BUSHING-FRONT FORK,OUTER TUBE 44065A 44065-1124 2
DAMPER-SET-FORK 44075 44075-1076 1
BOLT,FORK CYLINDER 92001 92001-1464 2
NUT,CAP,6MM 92015 92015-1385 2
WASHER,30.5X50X0.6 92022 92022-231 1
SPACER 92026 92026-1365 2
RACE,STEERING STEM BEARING 92047 92047-012 1
SEAL-OIL,FORK OUTER TUBE 92049 92049-1340 2
RING-O,FORK TOP 92055 92055-1367 2
SEAL-OIL,STEERING STEM 92056 92056-003 1
SEAL,FORK OUTER TUBE 92093 92093-1280 2
COLLAR,FORK 92143 92143-1311 2
COLLAR,L=12 92143A 92143-1683 2
BOLT,FLANGED,6X27 92150 92150-1124 2
BOLT,6X14 92150A 92150-1340 4
BOLT,SOCKET,10X25 92150B 92150-1387 2
BOLT 92151 92151-1261 2
BOLT,FORK TOP 92151A 92151-1262 2
DAMPER 92160 92160-1167 2
CLAMP,CABLE 92170 92170-1769 2
CLAMP,HOSE 92170A 92170-1840 1
CLAMP,CABLE 92170B 92170-1841 1
CLAMP,CABLE 92171 92171-1294 1
CLAMP,BRAKE HOSE 92171A 92171-1295 1
