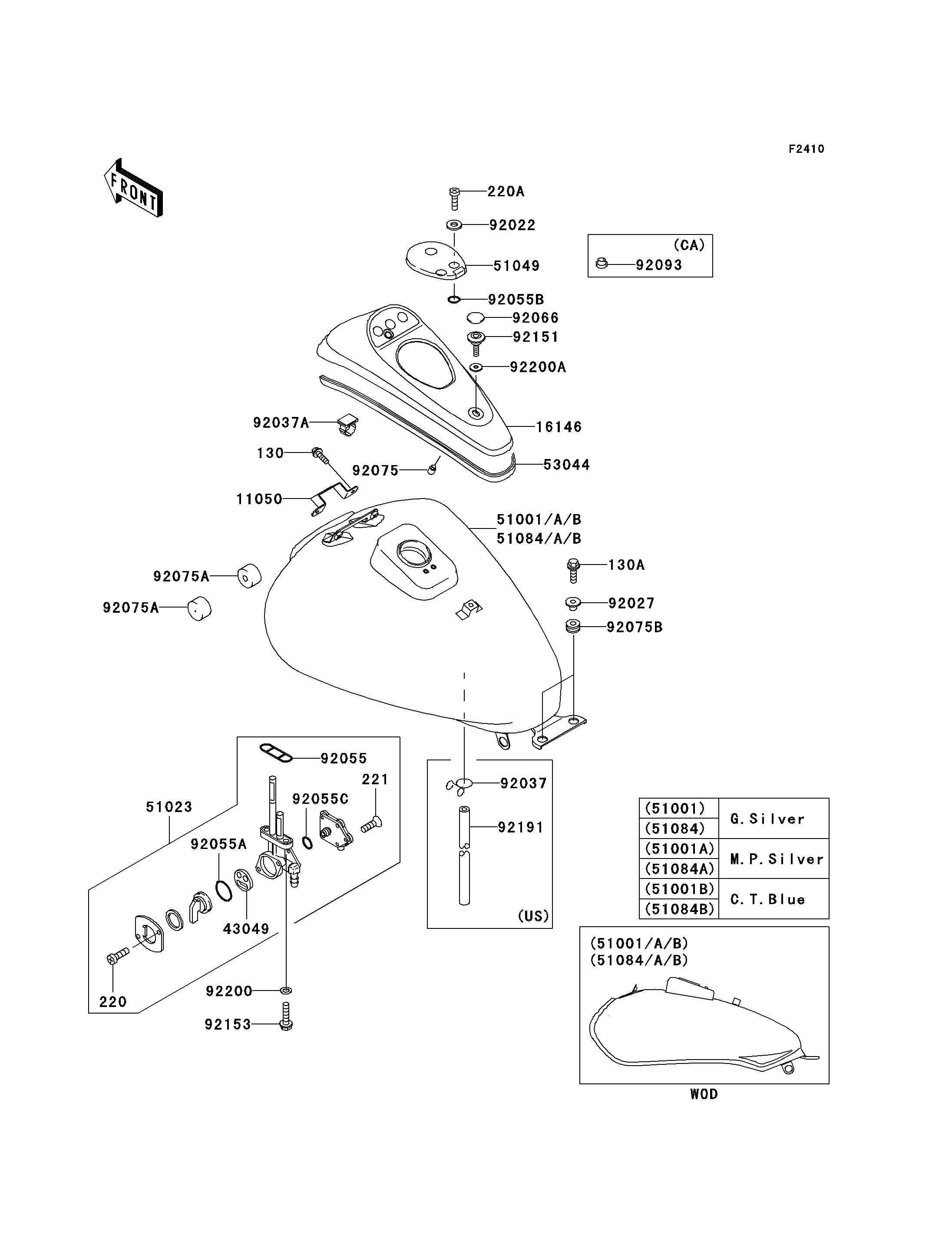

2007 Eliminator 125 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11050
11050
11050
16146
16146
16146
43049
43049
43049
51023
51023
51023
51049
51049
51049
130
130
130
130A
130A
130A
220
220
220
220A
220A
220A
221
221
221
53044
53044
53044
92022
92022
92022
92027
92027
92027
92037A
92037A
92037A
92055
92055
92055
92055A
92055A
92055A
92055B
92055B
92055B
92055C
92055C
92055C
92066
92066
92066
92075
92075
92075
92075A
92075A
92075A
92075A
92075A
92075A
92075B
92075B
92075B
92151
92151
92151
92153
92153
92153
92200
92200
92200
92200A
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUEL TANK COVER 11050 11050-1433 1
COVER-ASSY,FUEL TANK 16146 16146-1190 1
PACKING,TAP VALVE 43049 43049-1091 1
TAP-ASSY,FUEL 51023 51023-1279 1
CAP-TANK,FUEL 51049 51049-1142 1
BOLT-FLANGED,6X12 130 130BB0612 2
BOLT-FLANGED,6X20 130A 130BB0620 2
SCREW-PAN-CROS,3X8 220 220AA0308 2
SCREW-PAN-CROSS,5X10 220A 220AA0510 2
SCREW-CSK-CROS,4X14 221 221AA0414 5
TRIM,L=870 53044 53044-1316 1
WASHER,5.1X10X1.0 92022 92022-1977 2
COLLAR,L=13.1 92027 92027-251 2
CLAMP,TUBE 92037A 92037-1794 1
RING-O,FUEL TAP PACKING 92055 92055-1112 1
RING-O,TAP LEVER 92055A 92055-1419 1
RING-O,ID=9 92055B 92055-1552 2
RING-O 92055C 92055-1664 1
PLUG 92066 92066-1301 2
DAMPER 92075 92075-035 2
DAMPER,FUEL TANK 92075A 92075-101 2
DAMPER 92075B 92075-209 2
BOLT,6MM 92151 92151-1248 2
BOLT,FLANGED,6X25 92153 92153-0514 2
WASHER,6.5X11.5X0.8 92200 92200-0117 2
WASHER,9.3X18X1.6 92200A 92200-1439 2
TANK-COMP-FUEL,G.SILVER 51001 51001-1593-X1 1 US
TANK-COMP-FUEL,G.SILVER 51084 51084-5137-X1 1 CA
CLAMP 92037 92037-1712 1 US
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
TUBE,7X10X530 92191 92191-1302 1 US
