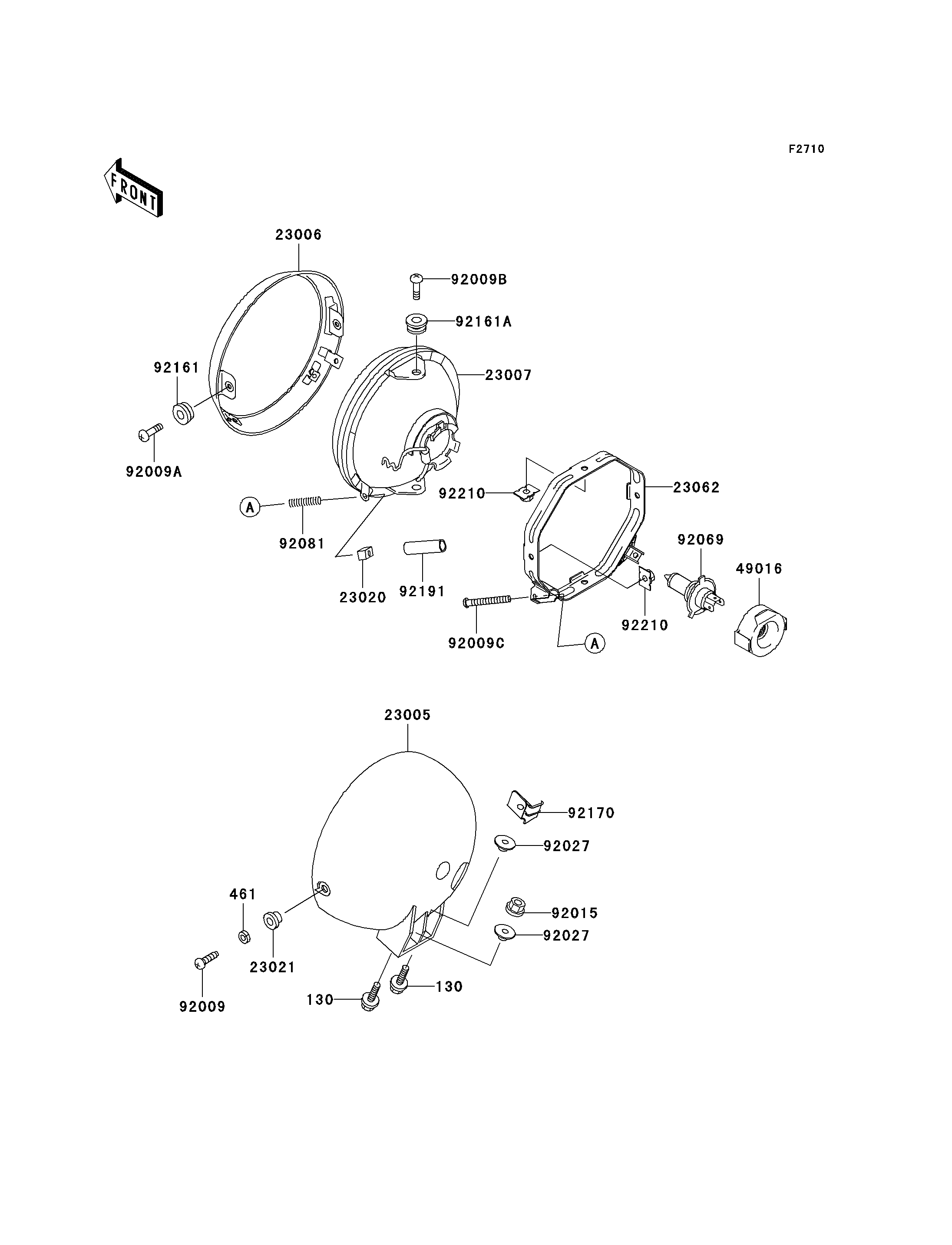

2007 Eliminator 125 - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
461
23005
23006
23007
23020
23021
23062
49016
92009
92009A
92009B
92009C
92015
92027
92027
92069
92081
92161
92161A
92170
92191
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130BA0620 2
WASHER-SPRING,5MM 461 461S0500 2
BODY-COMP-HEAD LAMP 23005 23005-1149 1
RIM-LAMP 23006 23006-1084 1
LENS-COMP,HEAD LAMP 23007 23007-1401 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 2
WASHER 23021 23021-010 2
BRACKET-COMP 23062 23062-1134 1
COVER-SEAL,HEAD LAMP SOCKET 49016 49016-1210 1
SCREW,5MM 92009 92009-1947 2
SCREW,5MM 92009A 92009-1955 2
SCREW,5MM 92009B 92009-1956 2
SCREW,4X50 92009C 92009-1957 2
NUT,FLANGED,6MM 92015 92015-1367 1
COLLAR,L=6.5 92027 92027-252 2
BULB,12V 60/55W,H4 92069 92069-1002 1
SPRING,FOCUS ADJUSTING 92081 92081-1701 2
DAMPER 92161 92161-1187 2
DAMPER 92161A 92161-1188 2
CLAMP,HARNESS 92170 92170-1624 1
TUBE,3.5X5.5X19 92191 92191-1217 2
NUT,SPECIAL,5MM 92210 92210-1060 4
