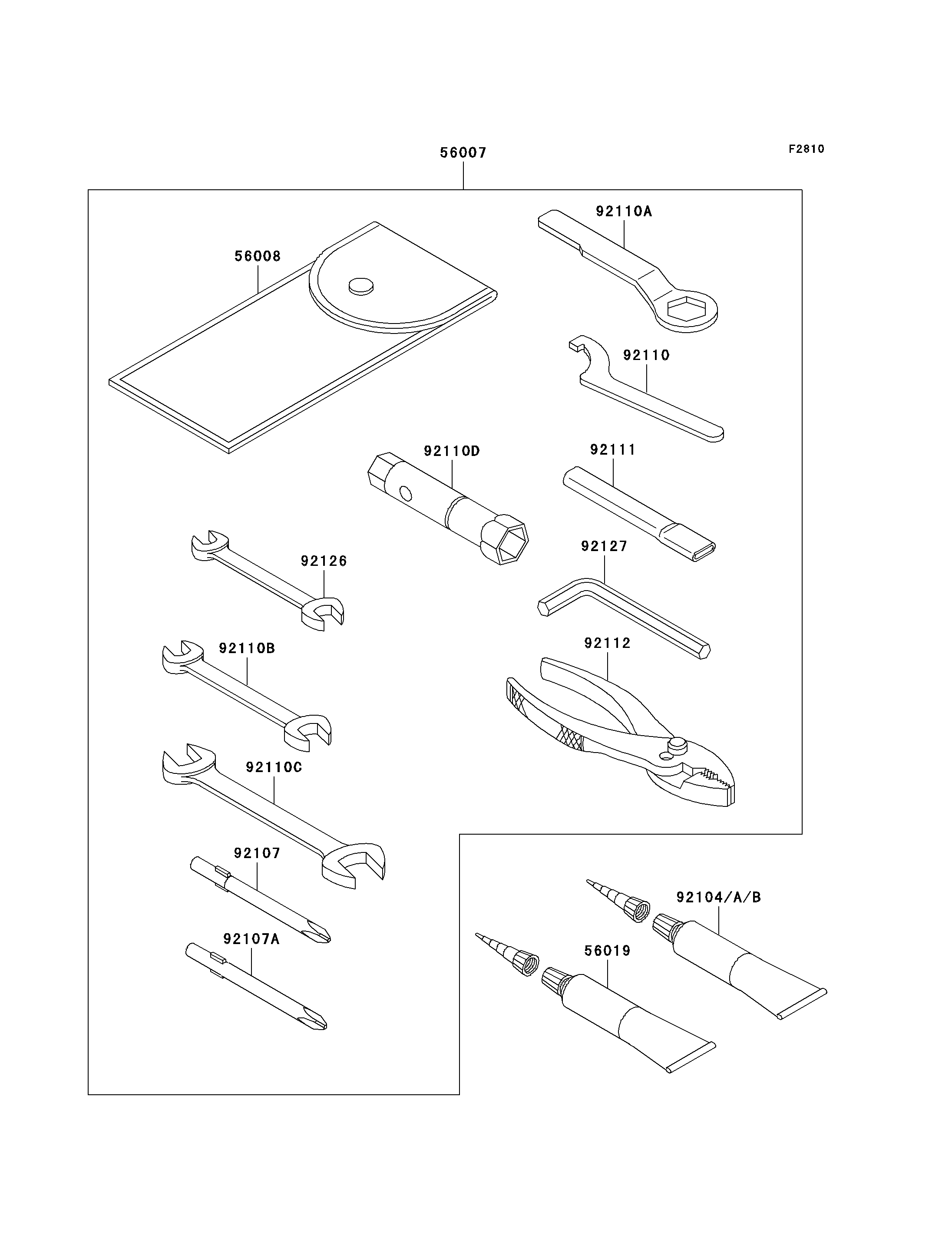

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
56007
56008
56019
92104
92104A
92104B
92107
92107A
92110
92110A
92110B
92110C
92110D
92111
92112
92126
92127
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TOOL-KIT | 56007 | 56007-1423 | 1 | ||
| BAG,TOOL | 56008 | 56008-1075 | 1 | ||
| GASKET-LIQUID,TB1211,WHITE | 56019 | 56019-120 | 1 | ||
| GASKET-LIQUID,TB1211F,CLEAR | 92104 | 92104-0004 | 1 | ||
| GASKET-LIQUID,TB1105B,SILVER | 92104A | 92104-002 | 1 | ||
| GASKET-LIQUID,TB1215,GRAY | 92104B | 92104-1065 | 1 | ||
| TOOL-DRIVER,#3PHILLIPS | 92107 | 92107-005 | 1 | ||
| TOOL-DRIVER,#2PHILLIPS | 92107A | 92107-1053 | 1 | ||
| TOOL-WRENCH,HOOK | 92110 | 92110-1143 | 1 | ||
| TOOL-WRENCH,BOX END,24MM | 92110A | 92110-1150 | 1 | ||
| TOOL-WRENCH,OPEN END,10X12 | 92110B | 92110-1152 | 1 | ||
| TOOL-WRENCH,OPEN END,14X17 | 92110C | 92110-1153 | 1 | ||
| TOOL-WRENCH,BOX,16MM | 92110D | 92110-1172 | 1 | ||
| TOOL-BAR,BOX END WRENCH | 92111 | 92111-1051 | 1 | ||
| TOOL-PLIERS | 92112 | 92112-1001 | 1 | ||
| TOOL-WRENCH,OPEN END,8X10 | 92126 | 92126-004 | 1 | ||
| TOOL-WRENCH,ALLEN,6MM | 92127 | 92127-003 | 1 |
