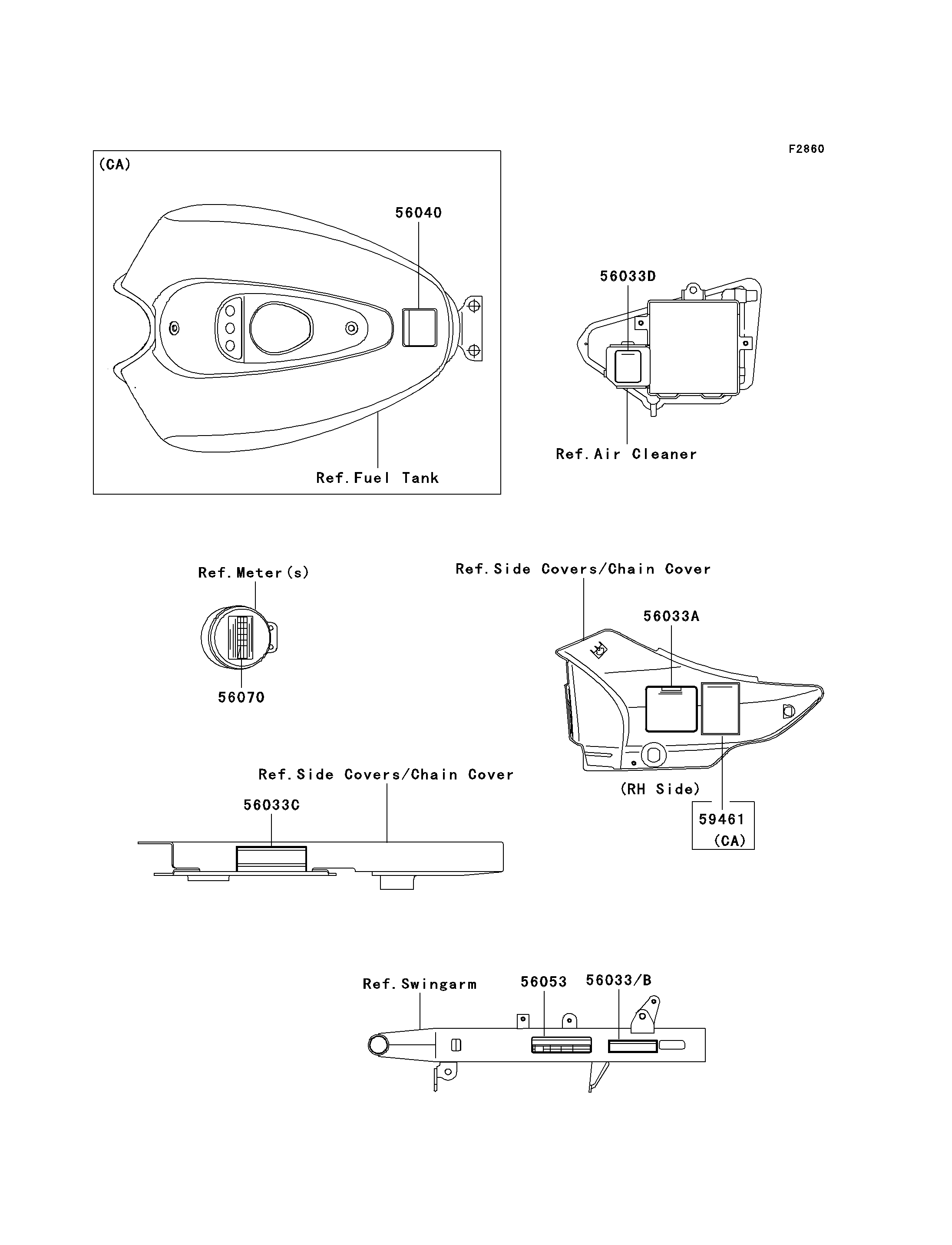

56033
56033A
56033C
56033D
56053
56070
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-MANUAL,OIL&OIL FILTER 56033 56033-0160 1
LABEL-MANUAL,DAILY SAFETY 56033A 56033-1076 1
LABEL-MANUAL,CHAIN 56033C 56033-1350 1
LABEL-MANUAL,BATTERY VENT 56033D 56033-1351 1
LABEL-SPECIFICATION,TIRE&LOAD 56053 56053-1060 1
LABEL-WARNING,CAUTION 56070 56070-1221 1
LABEL-WARNING,EVAPO 56040 56040-1121 1 CA
LABEL-CERTIFICATION,EVAPO ROUT 59461 59461-1528 1 CA
