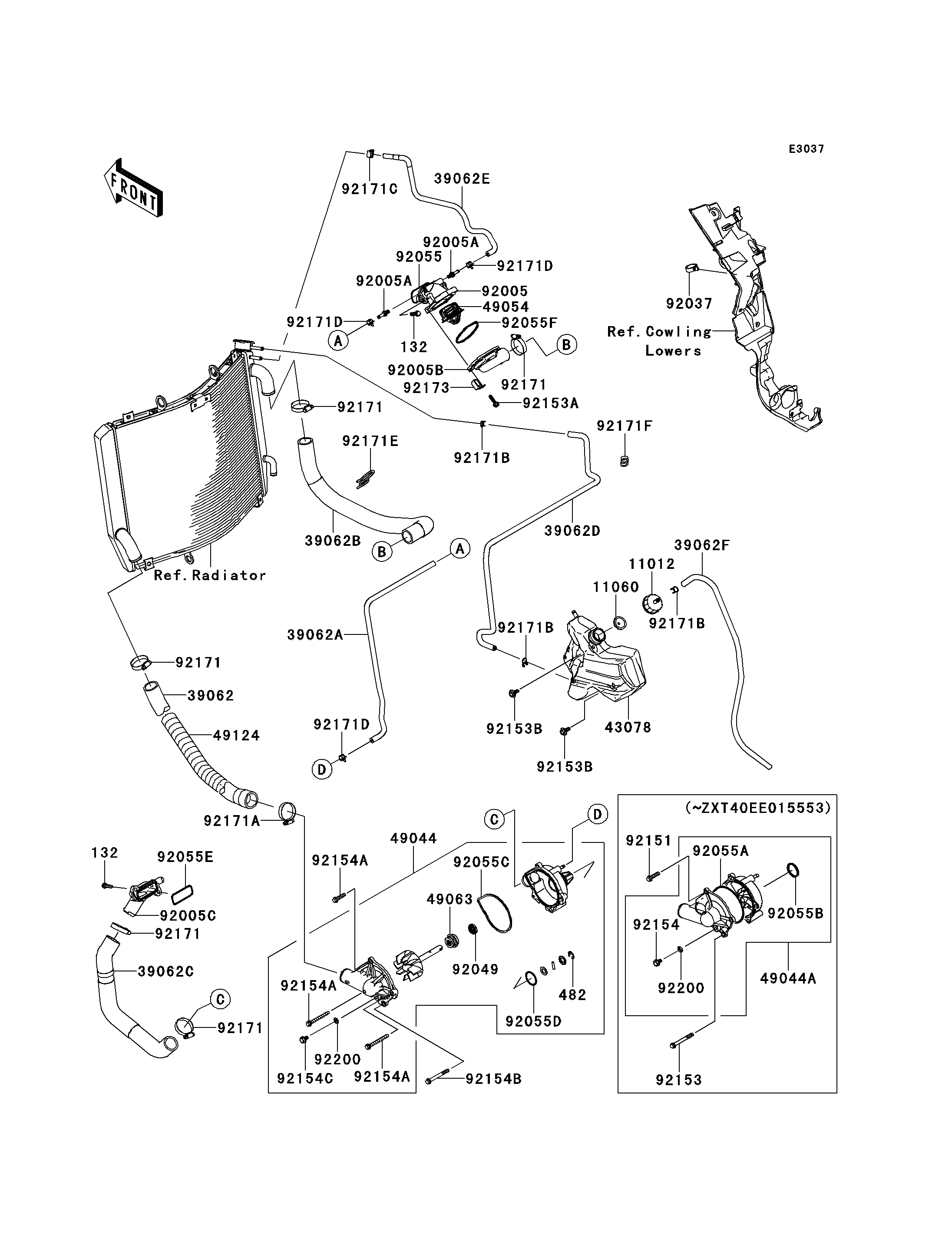

2013 NINJA® ZX™-14R ABS - Water Pipe

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11060
11060
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
39062F
39062F
43078
43078
49044A
49044A
49054
49054
49124
49124
92005
92005
92005A
92005A
92005A
92005A
92005B
92005B
92005C
92005C
92037
92037
92055
92055
92055A
92055A
92055B
92055B
92055E
92055E
92055F
92055F
92151
92151
92153
92153
132
132
132
132
92153A
92153A
92153B
92153B
92153B
92153B
92154
92154
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171A
92171A
92171B
92171B
92171B
92171B
92171B
92171B
92171C
92171C
92171D
92171D
92171D
92171D
92171D
92171D
92171E
92171E
92171F
92171F
92173
92173
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1854 1
GASKET,RESERVOIR TANK CAP 11060 11060-1349 1
HOSE-COOLING,RAD-W/P 39062 39062-0113 1
HOSE-COOLING,L=514.9 39062A 39062-0123 1
HOSE-COOLING,CYL.HEAD-RAD. 39062B 39062-0212 1
HOSE-COOLING,W/P-CYLINDER 39062C 39062-0611 1
HOSE-COOLING,RAD.-RESERVOIR 39062D 39062-0613 1
HOSE-COOLING,AIR VENT 39062E 39062-0614 1
HOSE-COOLING,5.5X10.5X550 39062F 39062-1208 1
RESERVOIR 43078 43078-0556 1
PUMP-WATER 49044A 49044-0553 1 ( - ZXT40EE015553)
THERMOSTAT 49054 49054-0004 1
SPRING-TUBE GUARD 49124 49124-0003 1
FITTING,THERMO CASE 92005 92005-0047 1
FITTING 92005A 92005-0056 2
FITTING,THERMO CAP 92005B 92005-0076 1
FITTING,CYLINDER 92005C 92005-0104 1
CLAMP,HOSE 92037 92037-1827 1
RING-O,YP 27.6 57.6 1.9 92055 92055-0021 1
RING-O 92055A 92055-0157 1 ( - ZXT40EE015553)
RING-O 92055B 92055-0158 1 ( - ZXT40EE015553)
RING-O 92055E 92055-1402 1
RING-O,THERMOSTAT CAP 92055F 92055-1699 1
BOLT,FLANGED-SMALL,6X25 92151 92151-1930 1 ( - ZXT40EE015553)
BOLT,FLANGED-SMALL,6X55 92153 92153-1586 1 ( - ZXT40EE015553)
BOLT-FLANGED-SMALL,6X20 132 132BC0620 4
BOLT,FLANGED,5X18 92153A 92153-1588 4
BOLT,UPSET-WP,6X16 92153B 92153-1939 2
BOLT,DRAIN 92154 92154-0184 1 ( - ZXT40EE015553)
CLAMP 92171 92171-0179 5
CLAMP 92171A 92171-0180 1
CLAMP 92171B 92171-0718 3
CLAMP 92171C 92171-0719 1
CLAMP 92171D 92171-0720 3
CLAMP 92171E 92171-0786 1
CLAMP 92171F 92171-1184 1
CLAMP 92173 92173-0082 1
WASHER,DRAIN 92200 92200-0498 1
