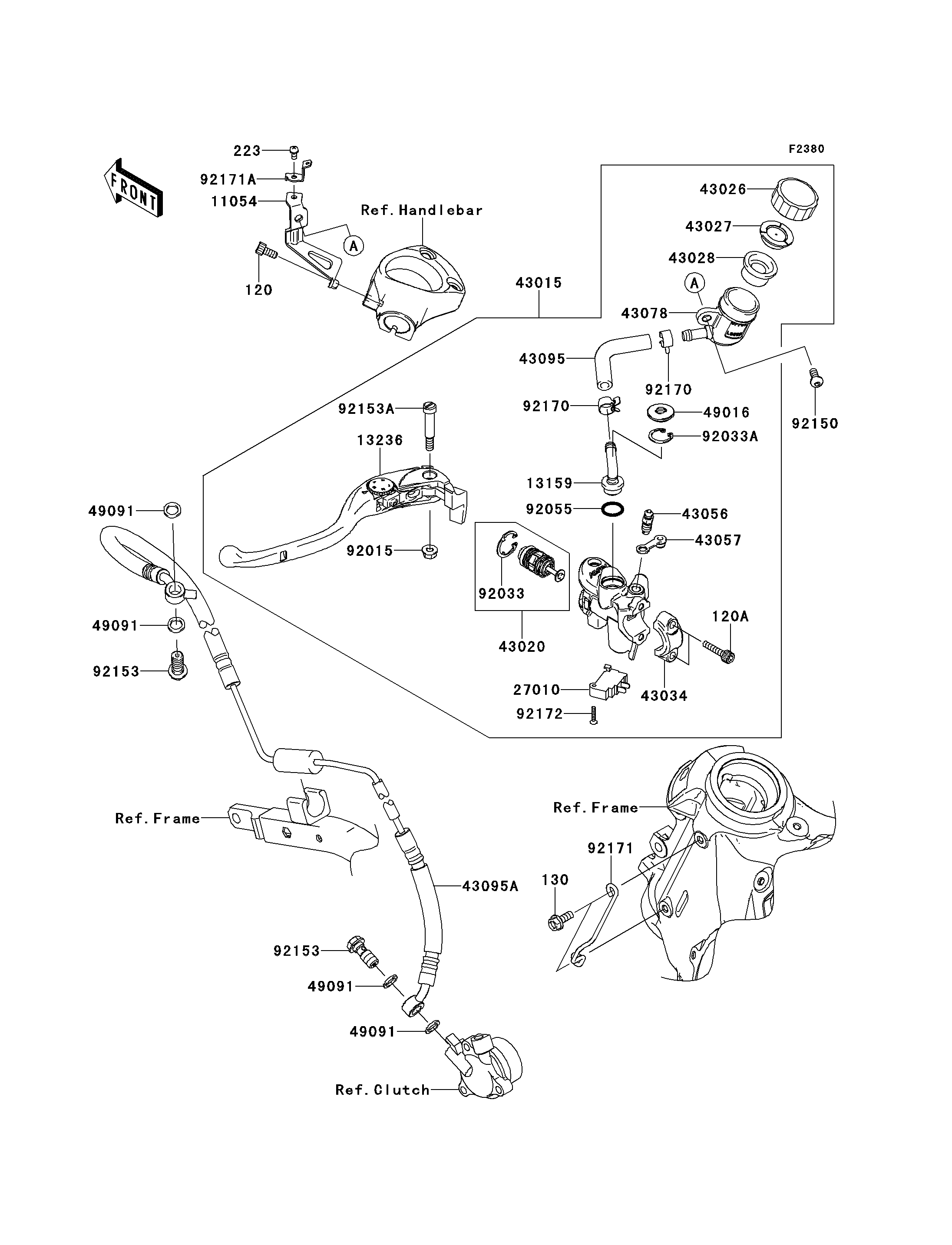

2013 NINJA® ZX™-14R ABS - Clutch Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
120
120A
130
223
11054
13159
13236
27010
43015
43020
43026
43027
43028
43034
43056
43057
43078
43095
43095A
49016
49091
49091
49091
49091
92015
92033
92033A
92055
92150
92153
92153
92153A
92170
92170
92171
92171A
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X12 120 120CA0612 1
BOLT-SOCKET,6X22 120A 120CB0622 2
BOLT-FLANGED,6X16 130 130BA0616 2
SCREW-PAN-WS-CROS,4X8 223 223AA0408 1
BRACKET,CLUTCH RESERVOIR 11054 11054-0207 1
CONNECTOR 13159 13159-1061 1
LEVER-COMP,CLUTCH 13236 13236-0104 1
SWITCH,CLUTCH 27010 27010-0051 1
CYLINDER-ASSY-MASTER,CLUTCH 43015 43015-0151 1
PISTON-COMP-BRAKE 43020 43020-0013 1
CAP-BRAKE 43026 43026-1070 1
PLATE-DIAPHRAGM 43027 43027-1054 1
DIAPHRAGM 43028 43028-1073 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-0056 1
BREATHER-BRAKE 43056 43056-1056 1
CAP-BREATHER 43057 43057-1001 1
RESERVOIR 43078 43078-1102 1
HOSE-BRAKE,FR MASTER CYLINDER 43095 43095-0040 1
HOSE-BRAKE,CLUTCH 43095A 43095-0410 1
COVER-SEAL 49016 49016-1147 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
NUT,FLANGED,6MM 92015 92015-1528 1
RING-SNAP 92033 92033-0034 1
RING-SNAP,20.5MM 92033A 92033-1186 1
RING-O,14.8X2.4 92055 92055-0741 1
BOLT,SOCKET,6X14 92150 92150-1836 1
BOLT,OIL,L=23 92153 92153-0627 2
BOLT,LEVER 92153A 92153-0868 1
CLAMP,HOSE 92170 92170-1091 2
CLAMP,CLUTCH HOSE 92171 92171-0633 1
CLAMP,RESERVOIR CAP 92171A 92171-0637 1
SCREW,3X16 92172 92172-0349 1
