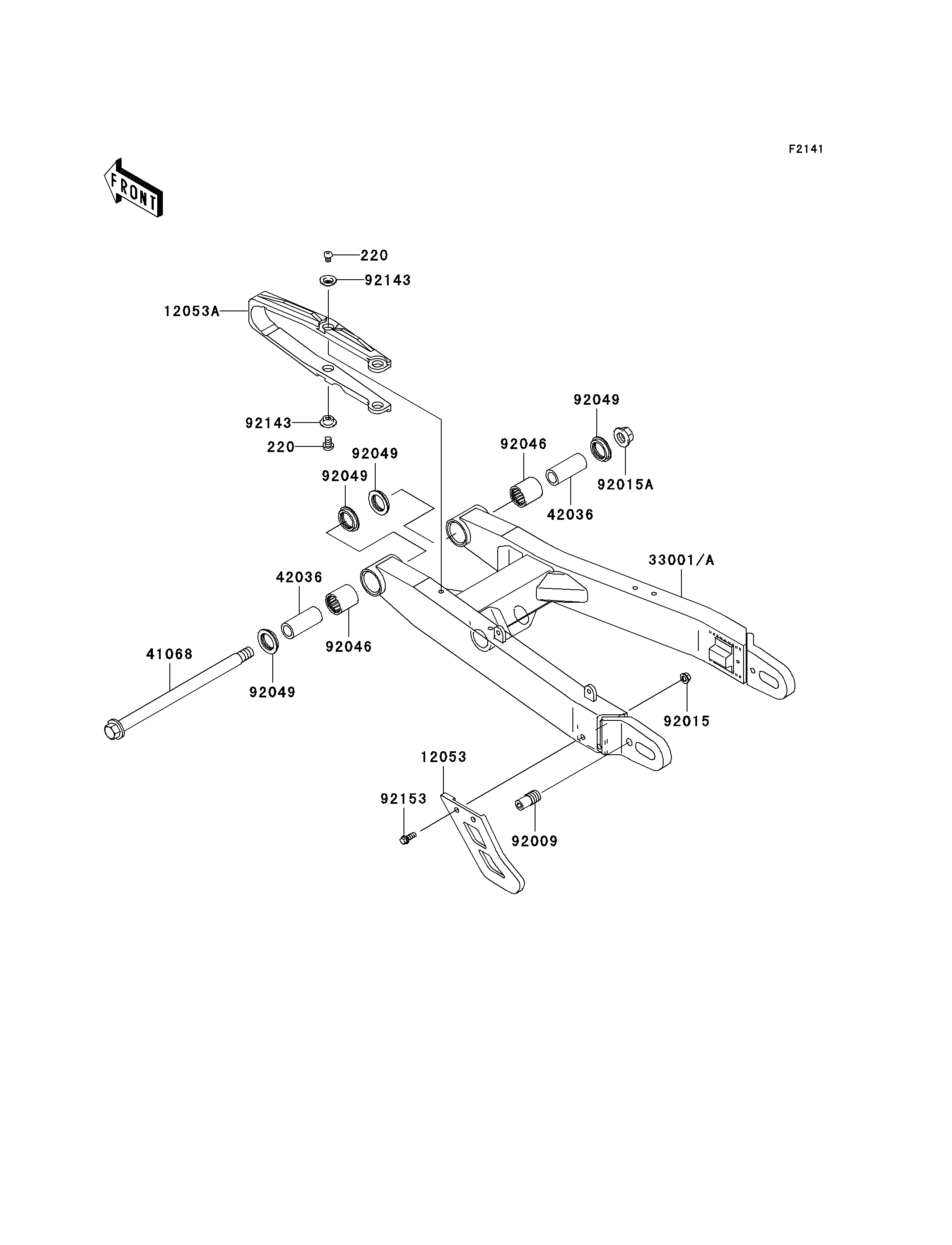

2010 Super Sherpa (Canada Only) - Swingarm
220
220
12053
12053A
33001A
41068
42036
42036
92009
92015
92015A
92046
92046
92049
92049
92049
92049
92143
92143
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-PAN-CROS,6X8 | 220 | 220AA0608 | 4 | ||
| GUIDE-CHAIN,RR | 12053 | 12053-1389 | 1 | ||
| GUIDE-CHAIN,FR | 12053A | 12053-1392 | 1 | ||
| ARM-COMP-SWING,P.SILVER | 33001A | 33001-1526-458 | 1 | ||
| AXLE,FR,15X242 | 41068 | 41068-1078 | 1 | ||
| SLEEVE,15.1X22X52 | 42036 | 42036-1335 | 2 | ||
| SCREW,SET,SOCKET,10X21 | 92009 | 92009-1789 | 2 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1078 | 2 | ||
| NUT,14MM | 92015A | 92015-1407 | 1 | ||
| BEARING-NEEDLE,TA2230Z | 92046 | 92046-1174 | 2 | ||
| SEAL-OIL,MHA22X29X5.7F | 92049 | 92049-1289 | 4 | ||
| COLLAR | 92143 | 92143-1156 | 4 | ||
| BOLT,6X16 | 92153 | 92153-0695 | 2 |
| SCREW-PAN-CROS,6X8 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,RR | |
| REF # | 12053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,FR | |
| REF # | 12053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-COMP-SWING,P.SILVER | |
| REF # | 33001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,FR,15X242 | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,15.1X22X52 | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,SET,SOCKET,10X21 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,14MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,TA2230Z | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,MHA22X29X5.7F | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X16 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
