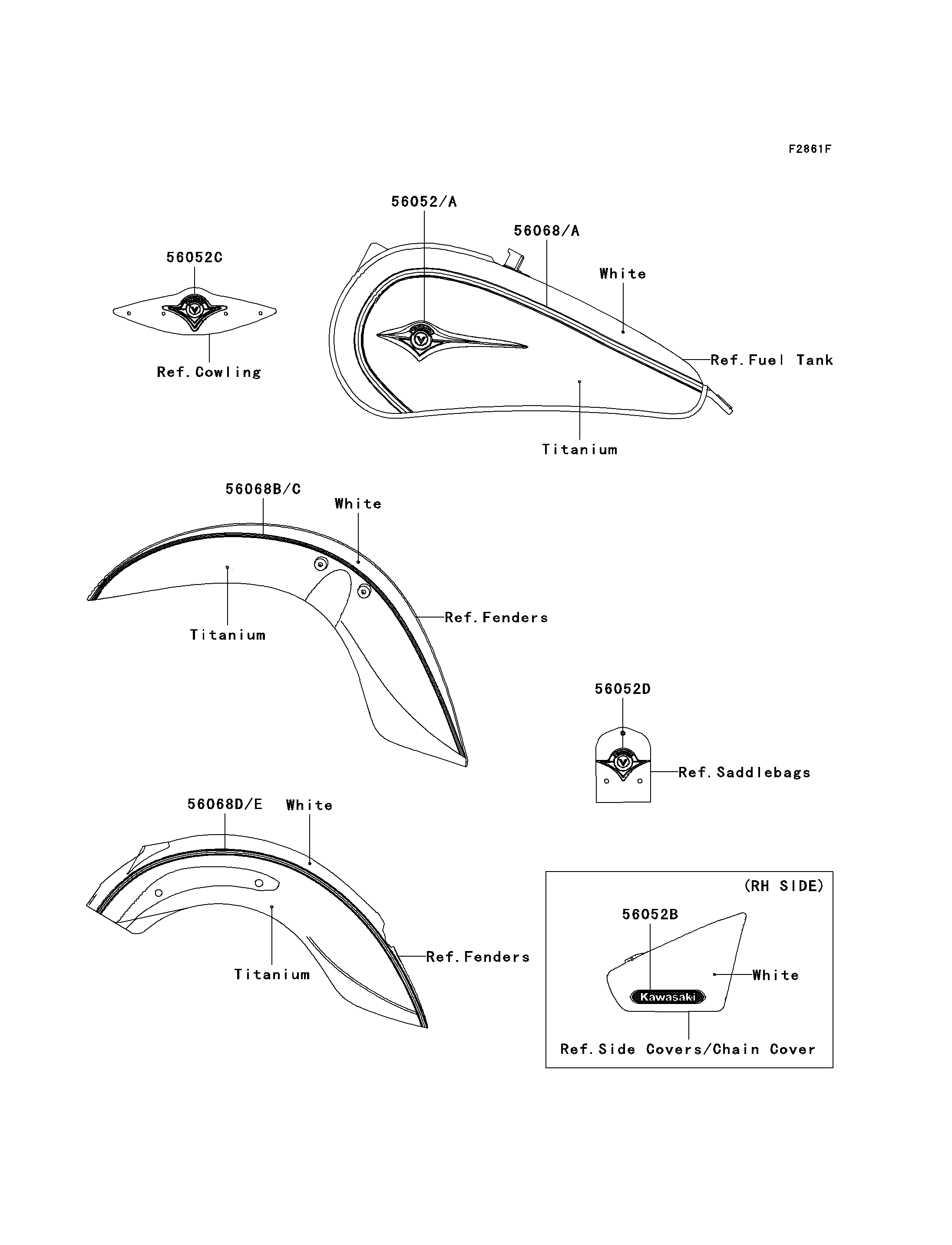

2008 Vulcan® 900 Classic LT - Decals(White/Titanium)(D8F)

56052
56052A
56052B
56052C
56052D
56068
56068A
56068B
56068C
56068D
56068E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FUEL TANK,LH 56052 56052-0810 1
MARK,FUEL TANK,RH 56052A 56052-0811 1
MARK,SIDE COVER,RH,KAWASAKI 56052B 56052-0812 1
MARK,PLATE 56052C 56052-0851 1
MARK,BACKREST 56052D 56052-0852 1
PATTERN,FUEL TANK,LH 56068 56068-0274 1
PATTERN,FUEL TANK,RH 56068A 56068-0275 1
PATTERN,FR FENDER,LH 56068B 56068-0276 1
PATTERN,FR FENDER,RH 56068C 56068-0277 1
PATTERN,RR FENDER,LH 56068D 56068-0278 1
PATTERN,RR FENDER,RH 56068E 56068-0279 1
