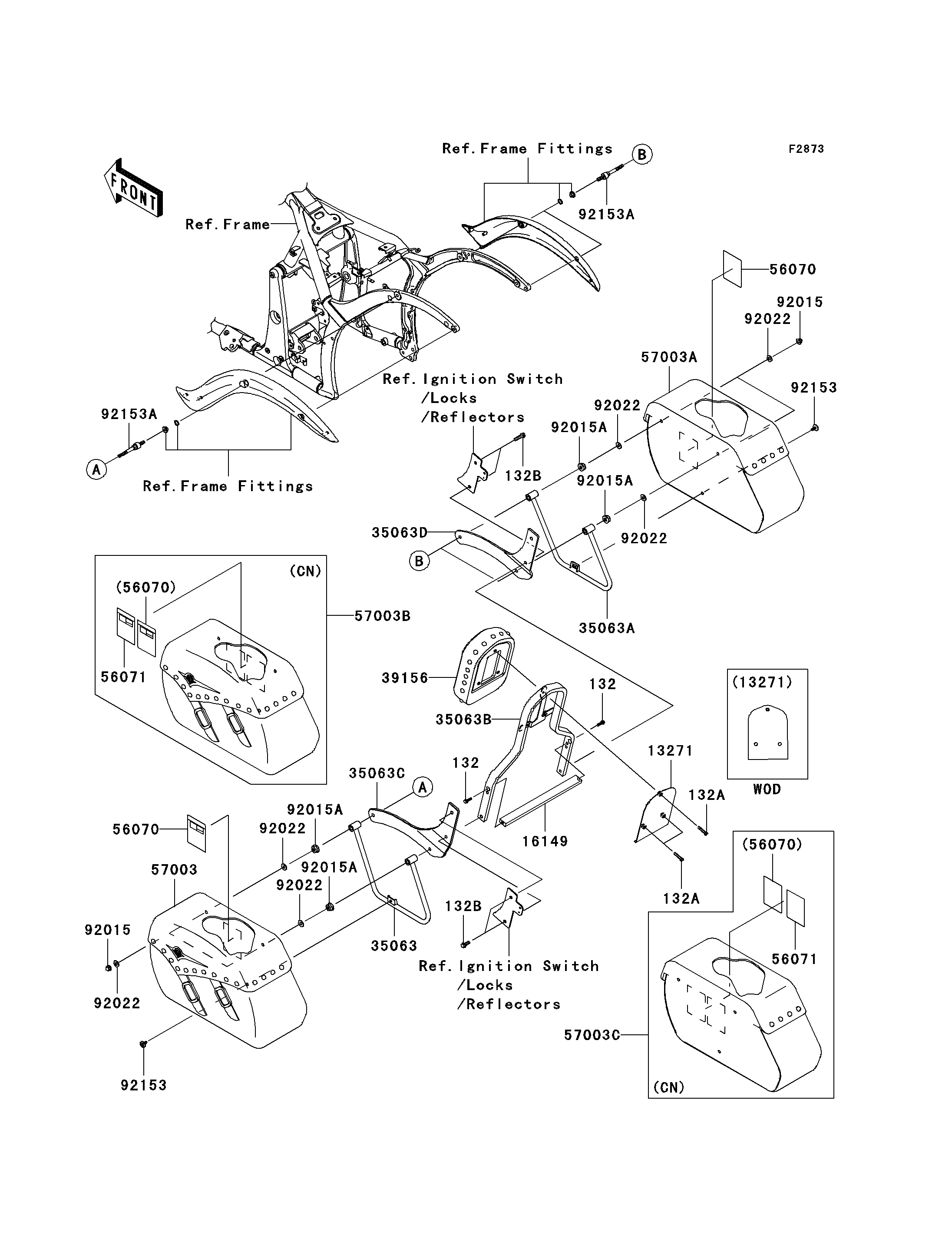

2007 Vulcan 900 Classic LT - Saddlebags(D6F-D9F)
132
132
132A
132A
132B
132B
13271
16149
35063
35063A
35063B
35063C
35063D
39156
56070
56070
92015
92015
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92022
92022
92153
92153
92153A
92153A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL,6X20 | 132 | 132BB0620 | 2 | ||
BOLT-FLANGED-SMALL,6X30 | 132A | 132E0630 | 3 | ||
BOLT-FLANGED-SMALL,8X20 | 132B | 132E0820 | 4 | ||
PLATE,BACKREST | 13271 | 13271-0728 | 1 | ||
BAR | 16149 | 16149-0032 | 1 | ||
STAY,SIDE BAG,LH | 35063 | 35063-0264 | 1 | ||
STAY,SIDE BAG,RH | 35063A | 35063-0266 | 1 | ||
STAY,BACKREST | 35063B | 35063-0346 | 1 | ||
STAY,BACKREST,LH | 35063C | 35063-0349 | 1 | ||
STAY,BACKREST,RH | 35063D | 35063-0350 | 1 | ||
PAD,SISSY BAR,BLACK,W/RIVET | 39156 | 39156-0118-MA | 1 | ||
LABEL-WARNING,SADDLEBAG | 56070 | 56070-0076 | 2 | ||
NUT,CAP,LOCK,8MM,BLACK | 92015 | 92015-1209 | 4 | ||
NUT,FLANGED,8MM | 92015A | 92015-1409 | 4 | ||
WASHER,8.5X20X1.6,BLACK | 92022 | 92022-1317 | 8 | ||
BOLT,6X16 | 92153 | 92153-0684 | 2 | ||
BOLT | 92153A | 92153-1544 | 4 | ||
LABEL-WARNING,SADDLEBAG | 56071 | 56071-0001 | 2 | CN | |
BAG-ASSY,LH | 57003 | 57003-0009 | 1 | CAUS | |
BAG-ASSY,RH | 57003A | 57003-0010 | 1 | CAUS | |
BAG-ASSY,LH | 57003B | 57003-0015 | 1 | CN | |
BAG-ASSY,RH | 57003C | 57003-0016 | 1 | CN |
