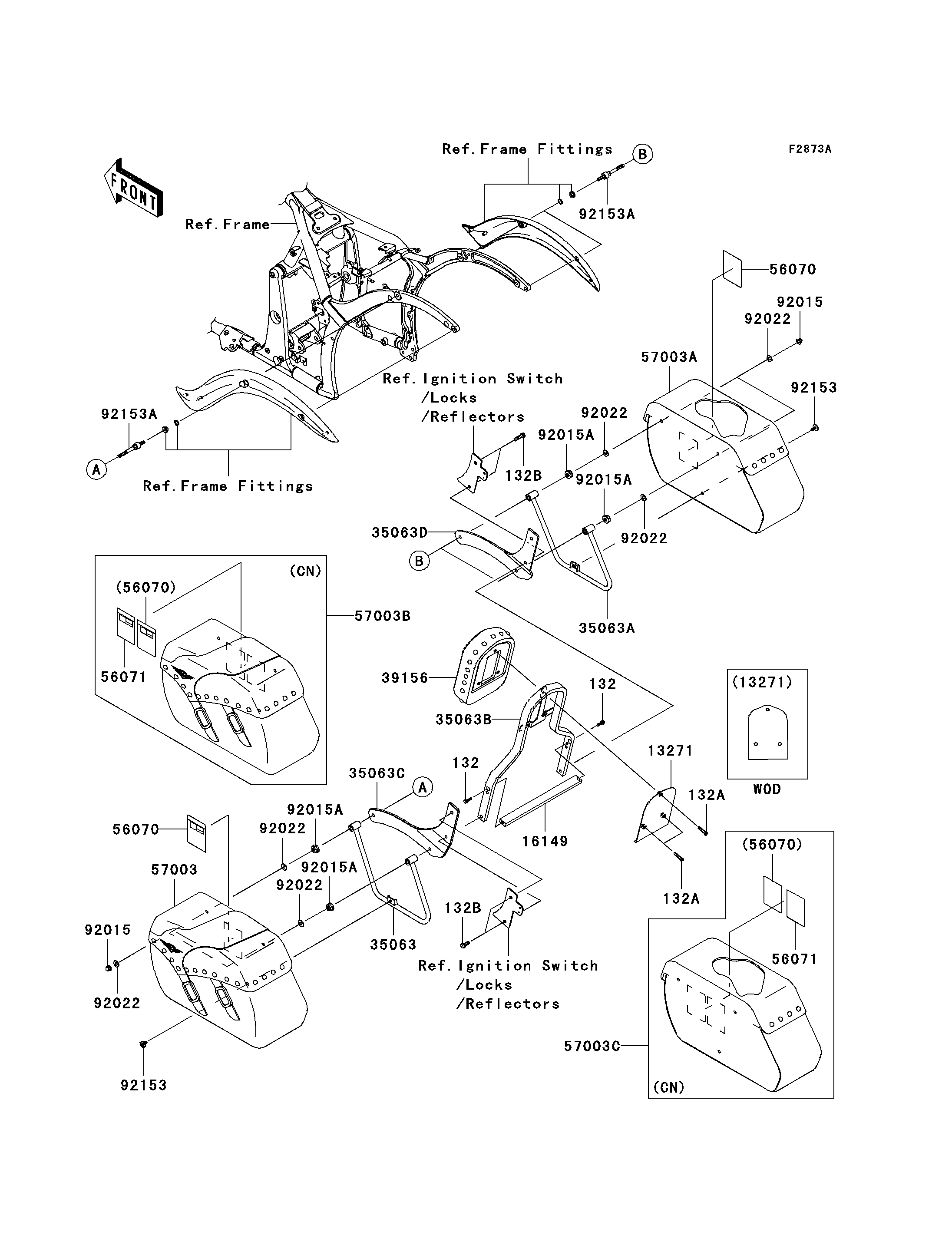

2010 Vulcan® 900 Classic LT - Saddlebags(DAF)

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
132A
132B
132B
13271
16149
35063
35063A
35063B
35063C
35063D
39156
56070
56070
92015
92015
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92022
92022
92153
92153
92153A
92153A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X20 132 132BB0620 2
BOLT-FLANGED-SMALL,6X30 132A 132E0630 3
BOLT-FLANGED-SMALL,8X20 132B 132E0820 4
PLATE,BACKREST 13271 13271-0728 1
BAR 16149 16149-0032 1
STAY,SIDE BAG,LH 35063 35063-0264 1
STAY,SIDE BAG,RH 35063A 35063-0266 1
STAY,BACKREST 35063B 35063-0346 1
STAY,BACKREST,LH 35063C 35063-0349 1
STAY,BACKREST,RH 35063D 35063-0350 1
PAD,SISSY BAR,BLACK 39156 39156-0559-MA 1
LABEL-WARNING,SADDLEBAG 56070 56070-0076 2
NUT,CAP,LOCK,8MM,BLACK 92015 92015-1209 4
NUT,FLANGED,8MM 92015A 92015-1409 4
WASHER,8.5X20X1.6,BLACK 92022 92022-1317 8
BOLT,6X16 92153 92153-0684 2
BOLT 92153A 92153-1544 4
LABEL-WARNING,SADDLEBAG 56071 56071-0001 2 CN
BAG-ASSY,LH 57003 57003-0046 1 CAUS
BAG-ASSY,RH 57003A 57003-0047 1 CAUS
BAG-ASSY,LH 57003B 57003-0056 1 CN
BAG-ASSY,RH 57003C 57003-0057 1 CN
