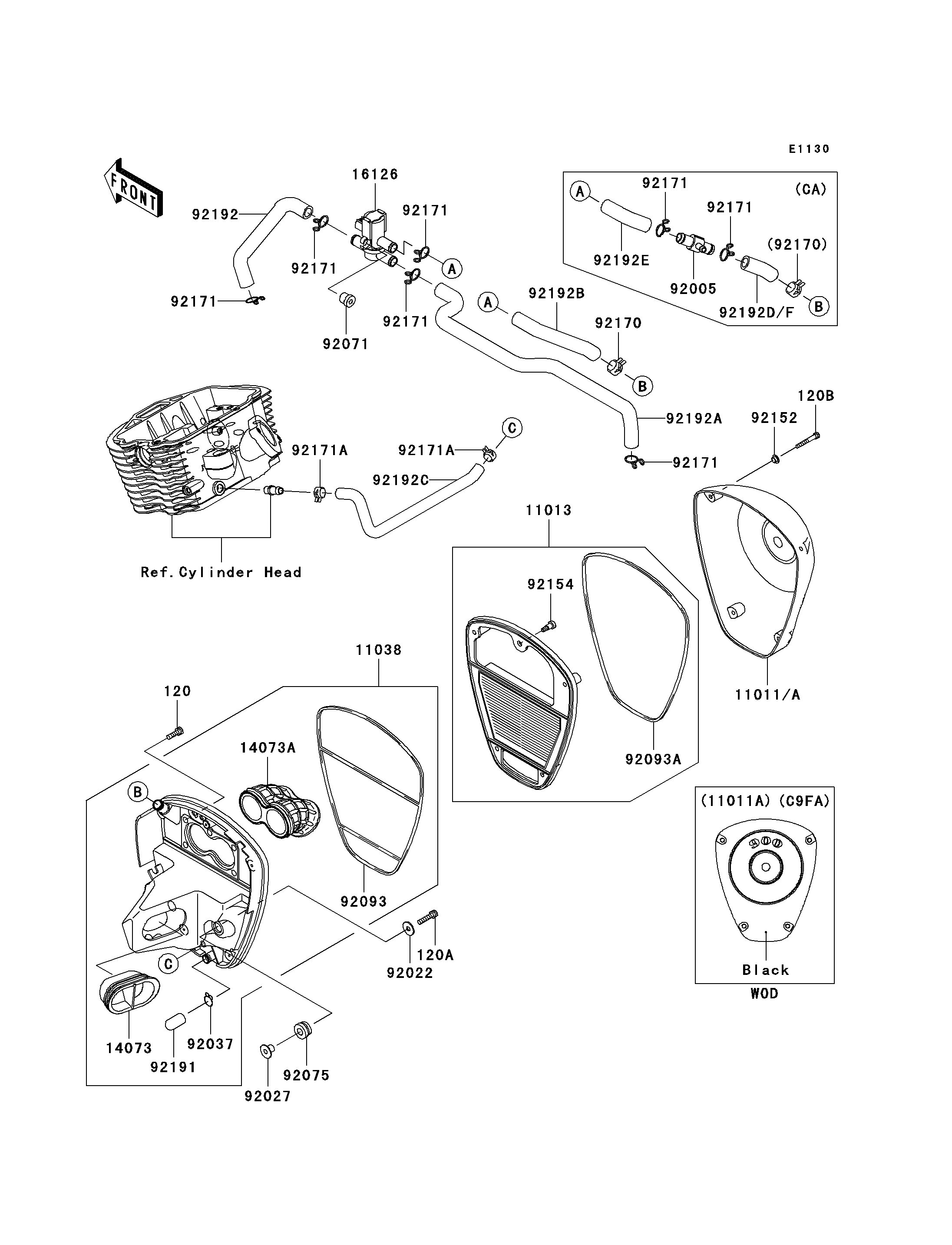

2007 Vulcan 900 Custom - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
120
120A
120B
11011
11013
11038
14073
14073A
16126
92022
92027
92037
92071
92075
92093
92093A
92152
92154
92170
92171A
92171A
92191
92192
92192A
92192C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X18 120 120CA0618 5
BOLT-SOCKET,6X25 120A 120CA0625 2
BOLT-SOCKET,5X35 120B 120R0535 4
CASE-AIR FILTER 11011 11011-0080 1
ELEMENT-AIR FILTER 11013 11013-0015 1
CASE-ASSY-AIR FILTER 11038 11038-0015 1
DUCT,INTAKE 14073 14073-0103 1
DUCT,THROTTLE BODY 14073A 14073-0104 1
VALVE,AIR SWITCHING 16126 16126-1437 1
WASHER,6.5X20X1.6 92022 92022-1557 2
COLLAR,L=12 92027 92027-1062 2
CLAMP,14.5MM 92037 92037-1900 1
GROMMET 92071 92071-0026 1
DAMPER,RUBBER 92075 92075-1123 2
SEAL 92093 92093-0054 1
SEAL 92093A 92093-0057 1
COLLAR 92152 92152-0451 4
BOLT,SOCKET,5X16.5 92154 92154-0120 1
CLAMP 92170 92170-1989 1
CLAMP 92171A 92171-1441 2
TUBE 92191 92191-1704 1
TUBE,ASV-FR HEAD 92192 92192-0266 1
TUBE,ASV-RR HEAD 92192A 92192-0267 1
TUBE,BLOWBY 92192C 92192-0269 1
FITTING 92005 92005-0054 1 CA
CLAMP 92171 92171-0790 5 CNUS
CLAMP 92171 92171-0790 7 CA
TUBE,A/C-ASV 92192B 92192-0268 1 CNUS
TUBE,A/C-FITTING 92192D 92192-0344 1 CA
TUBE,ASV-FITTING 92192E 92192-0345 1 CA
