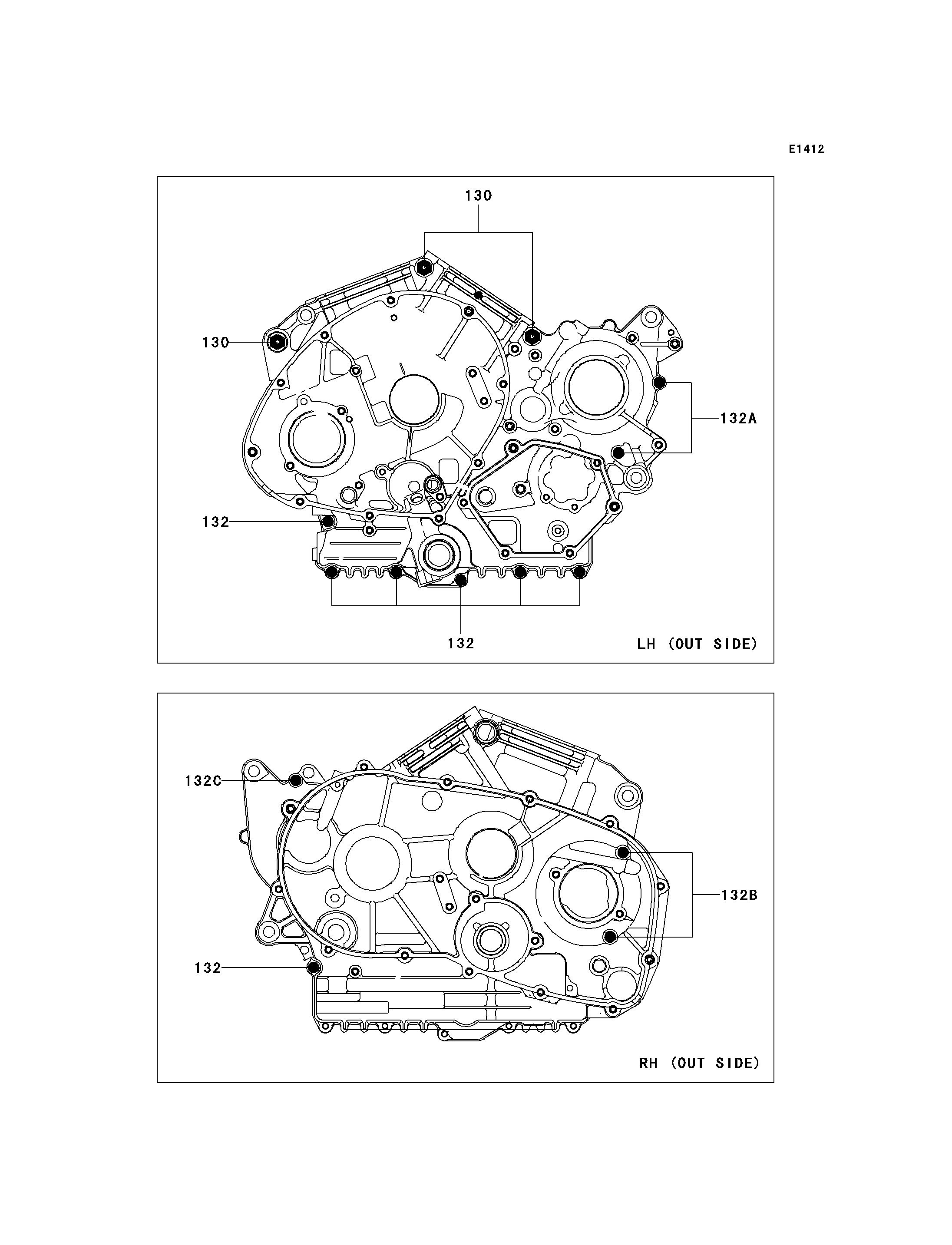

2007 Vulcan 900 Custom - Crankcase Bolt Pattern

130
130
132
132
132
132A
132B
132C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,10X90 130 130BB1090 3
BOLT-FLANGED-SMALL,6X30 132 132BB0630 7
BOLT-FLANGED-SMALL,6X60 132A 132BB0660 2
BOLT-FLANGED-SMALL,6X70 132B 132BB0670 2
BOLT-FLANGED-SMALL,6X85 132C 132BB0685 1
