Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

120
120A
130
21175
21176
21176A
21176B
21176C
21176D
92009
92015
92055

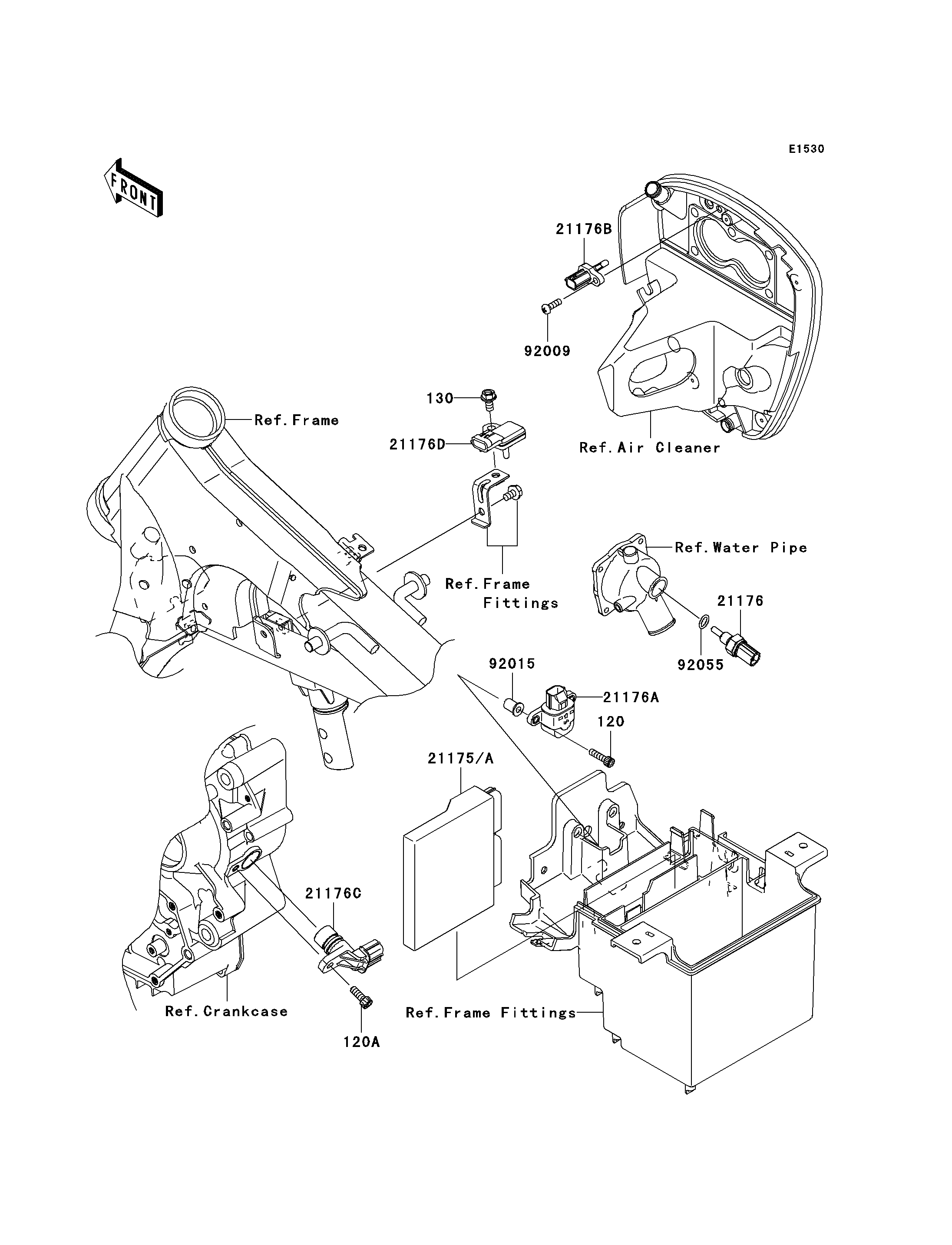

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X20 120 120CB0520 2
BOLT-SOCKET,6X16 120A 120CB0616 1
BOLT-FLANGED,6X12 130 130BB0612 1
CONTROL UNIT-ELECTRONIC 21175 21175-0133 1
SENSOR,WATER TEMP 21176 21176-0009 1
SENSOR 21176A 21176-0025 1
SENSOR,AIR TEMPERATURE 21176B 21176-0048 1
SENSOR,SPEED 21176C 21176-0054 1
SENSOR,PRESSURE 21176D 21176-0058 1
SCREW,TAPPING,5X16 92009 92009-1984 1
NUT,WELL,5MM 92015 92015-1757 2
RING-O,9.5X1.9 92055 92055-0016 1
