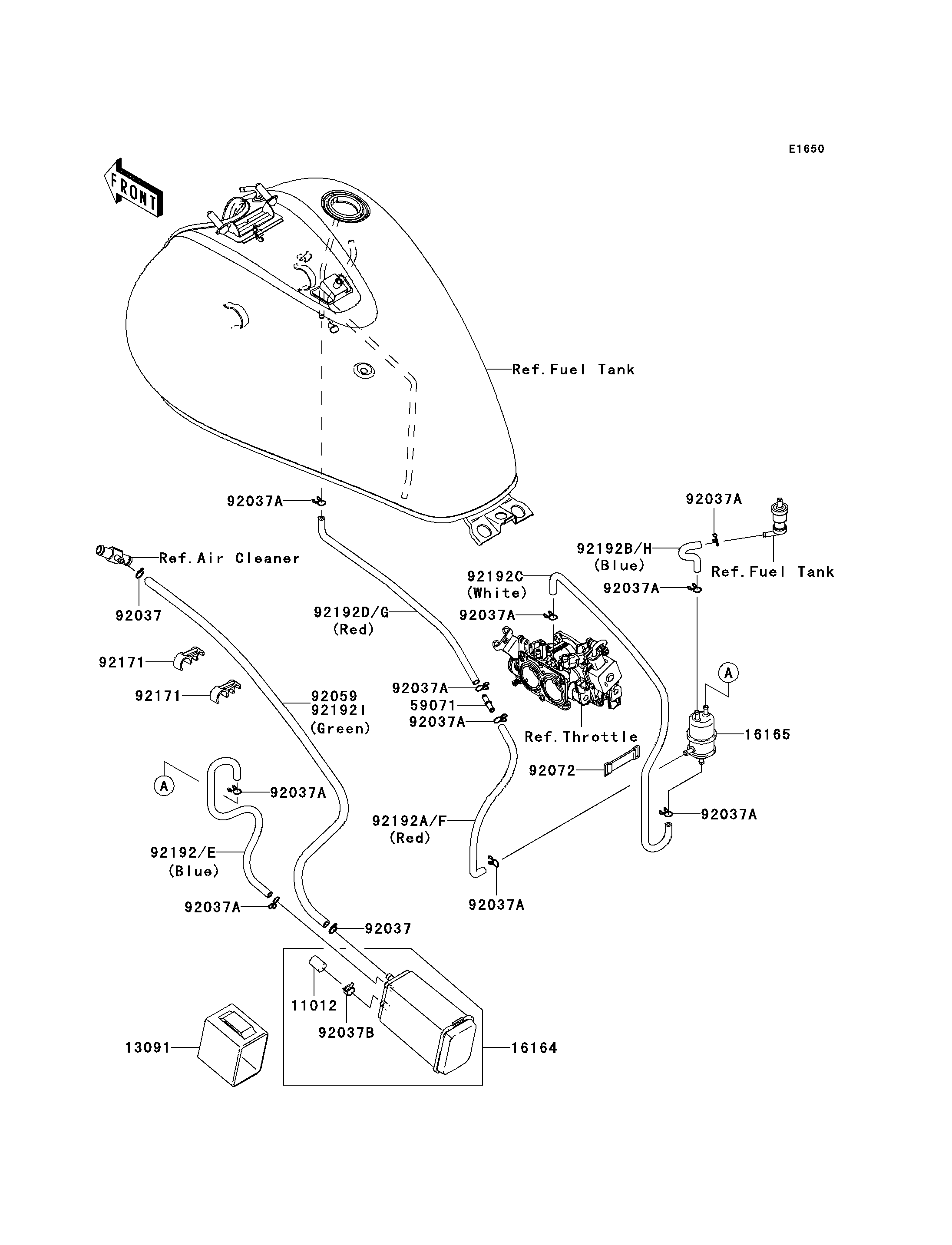

2007 Vulcan 900 Custom - Fuel Evaporative System(CA)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CANISTER 11012 11012-1388 1 CA
HOLDER,CANISTER 13091 13091-1308 1 CA
CANISTER 16164 16164-1054 1 CA
SEPARATOR 16165 16165-1001 1 CA
JOINT 59071 59071-3717 1 CA
CLAMP,HOSE 92037 92037-1104 2 CA
CLAMP,TUBE 92037A 92037-147 10 CA
CLAMP,CANISTER 92037B 92037-1512 1 CA
TUBE,7X12X760,GREEN 92059 92059-1679 1 CA
BAND,L=50 92072 92072-1419 1 CA
CLAMP 92171 92171-0765 2 CA
TUBE,SEPARATOR-CANISTER,BLUE 92192 92192-0271 1 CA
TUBE,SEPARATOR-JOINT,RED 92192A 92192-0273 1 CA
TUBE,SEPARATOR-VALVE,BLUE 92192B 92192-0274 1 CA
TUBE,SEPARATOR-THROBO,WHITE 92192C 92192-0275 1 CA
TUBE,JOINT-TANK,RED 92192D 92192-0312 1 CA
