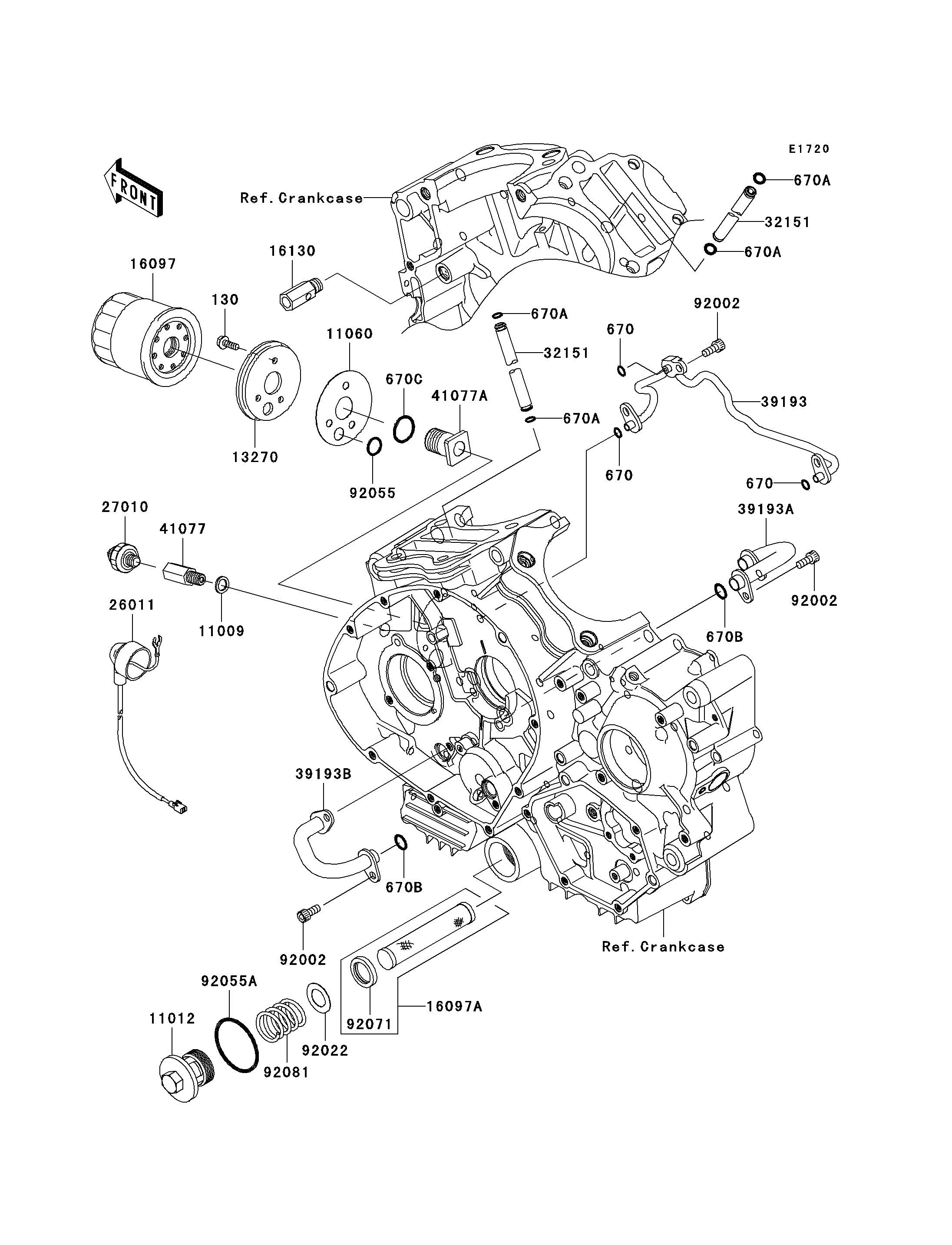

Parts Diagrams |
130
670
670
670
670A
670A
670A
670A
670B
670B
670C
11009
11012
11060
13270
16097
16097A
16130
26011
27010
32151
32151
39193
39193A
39193B
41077
41077A
92002
92002
92002
92022
92055
92055A
92071
92081
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,5X14 | 130 | 130CA0514 | 3 | ||
O RING,6MM | 670 | 670D1506 | 3 | ||
O RING,7MM | 670A | 670D1507 | 4 | ||
O RING,12MM | 670B | 670D2012 | 4 | ||
O RING,20MM | 670C | 670D2020 | 1 | ||
GASKET,10X14.5X1.5 | 11009 | 11009-1105 | 1 | ||
CAP,OIL FILTER | 11012 | 11012-1461 | 1 | ||
GASKET,OIL FILTER | 11060 | 11060-1092 | 1 | ||
PLATE,OIL FILTER | 13270 | 13270-1170 | 1 | ||
FILTER-ASSY-OIL | 16097 | 16097-0004 | 1 | ||
FILTER-ASSY-OIL | 16097A | 16097-1058 | 1 | ||
VALVE-ASSY-RELIEF | 16130 | 16130-1001 | 1 | ||
WIRE-LEAD | 26011 | 26011-0109 | 1 | ||
SWITCH,OIL PRESSURE | 27010 | 27010-1313 | 1 | ||
PIPE | 32151 | 32151-1895 | 2 | ||
PIPE-OIL | 39193 | 39193-0035 | 1 | ||
PIPE-OIL | 39193A | 39193-0036 | 1 | ||
PIPE-OIL | 39193B | 39193-0037 | 1 | ||
ADAPTER,PRESSURE SWITCH | 41077 | 41077-0017 | 1 | ||
ADAPTER | 41077A | 41077-1052 | 1 | ||
BOLT,SOCKET,6X14 | 92002 | 92002-1592 | 7 | ||
WASHER,16.5X28X0.5 | 92022 | 92022-169 | 1 | ||
RING-O,13.0X1.9 | 92055 | 92055-1011 | 1 | ||
RING-O,35.2X2.4 | 92055A | 92055-1358 | 1 | ||
GROMMET,OIL STRAINER | 92071 | 92071-100 | 1 | ||
SPRING,OIL FILTER | 92081 | 92081-1862 | 1 |
BOLT-FLANGED,5X14 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
O RING,6MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
O RING,7MM | |
REF # | 670A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
O RING,12MM | |
REF # | 670B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
O RING,20MM | |
REF # | 670C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,10X14.5X1.5 | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP,OIL FILTER | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,OIL FILTER | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,OIL FILTER | |
REF # | 13270 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILTER-ASSY-OIL | |
REF # | 16097 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILTER-ASSY-OIL | |
REF # | 16097A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE-ASSY-RELIEF | |
REF # | 16130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WIRE-LEAD | |
REF # | 26011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,OIL PRESSURE | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE | |
REF # | 32151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIPE-OIL | |
REF # | 39193 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-OIL | |
REF # | 39193A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-OIL | |
REF # | 39193B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ADAPTER,PRESSURE SWITCH | |
REF # | 41077 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ADAPTER | |
REF # | 41077A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X14 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
WASHER,16.5X28X0.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,13.0X1.9 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,35.2X2.4 | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET,OIL STRAINER | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,OIL FILTER | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
