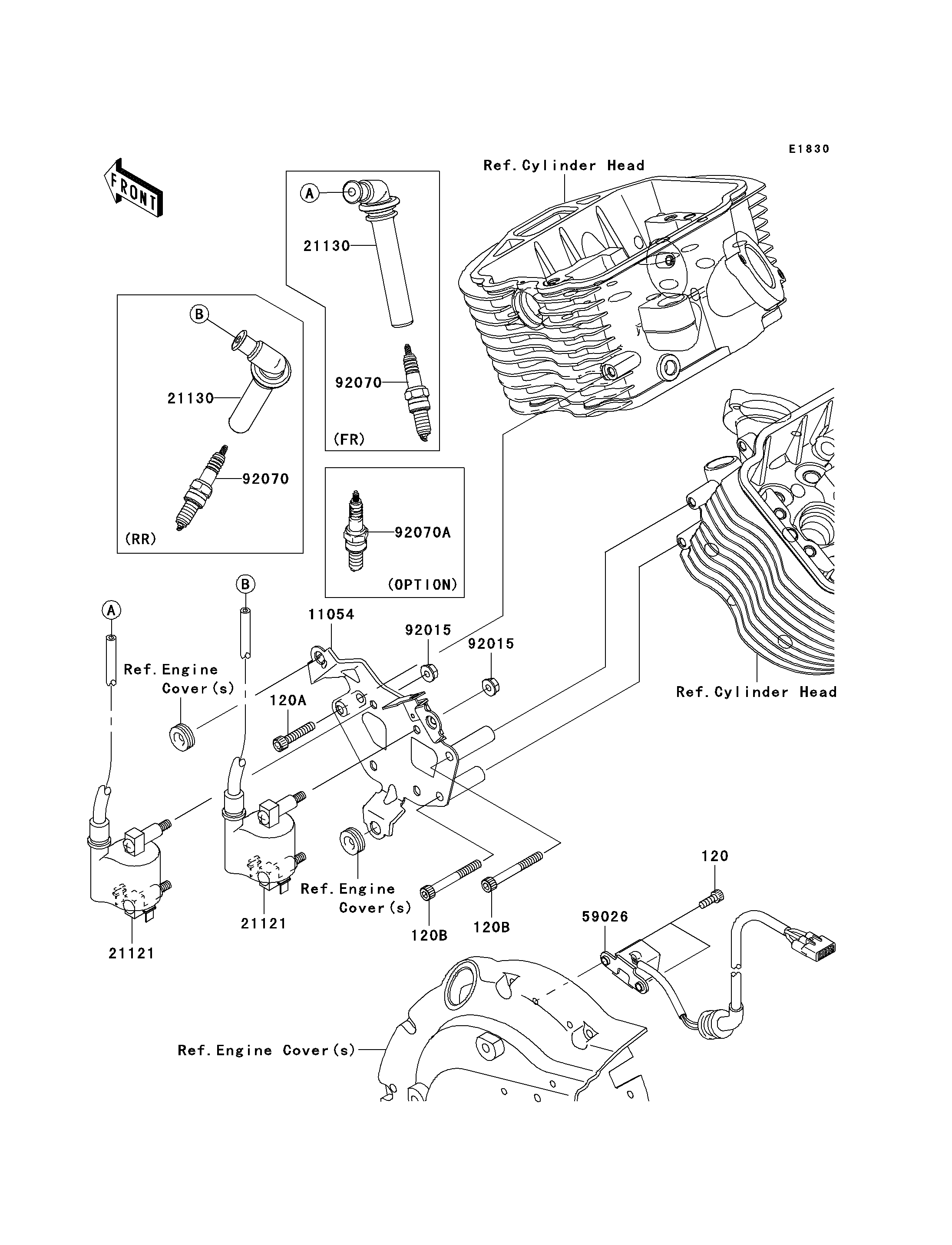

120
120A
120B
120B
11054
21121
21121
21130
21130
59026
92015
92015
92070
92070
92070A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X14 120 120CA0514 2
BOLT-SOCKET,6X35 120A 120CB0635 1
BOLT-SOCKET,6X55 120B 120CB0655 2
BRACKET,IGNITION COIL 11054 11054-0766 1
COIL-IGNITION 21121 21121-0027 2
CAP-SPARK PLUG 21130 21130-1075 2
COIL-PULSING 59026 59026-0017 1
NUT,FLANGED,6MM 92015 92015-1367 4
PLUG-SPARK,CPR7EA-9(NGK) 92070 92070-0022 AR
PLUG-SPARK,CPR8EA-9(NGK) 92070A 92070-0029 AR (OPTION)
