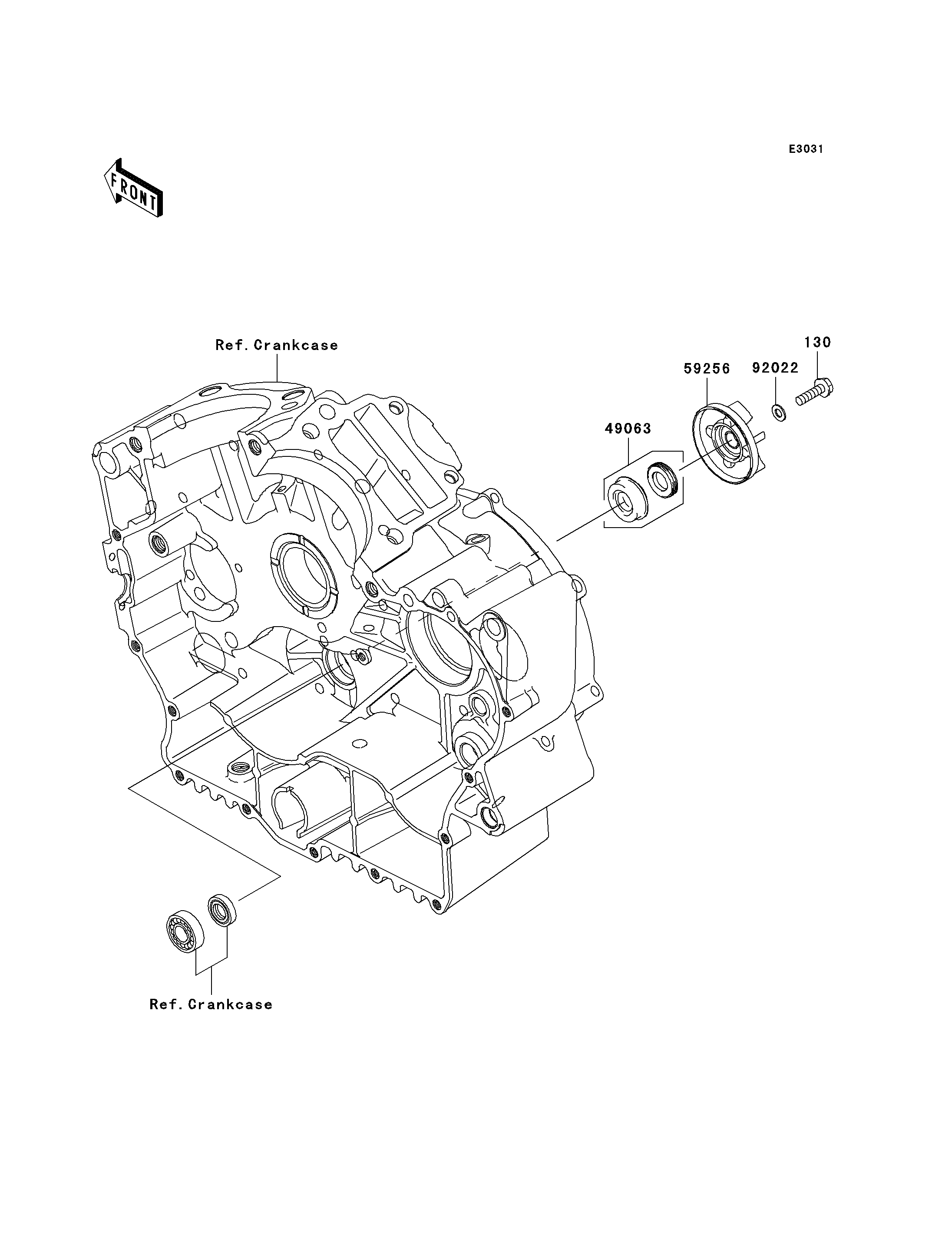

130
49063
59256
92022
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X22 130 130R0622 1
SEAL-MECHANICAL,WATER 49063 49063-1055 1
IMPELLER 59256 59256-1073 1
WASHER,6.1X12X1 92022 92022-077 1
